SV100 INS-D
GNSS RECEIVER

Dual GNSS+INS, Stay Precise When Signals Loss

Become a Dealer

Home

Products

SV100 INS-D
GNSS RECEIVER

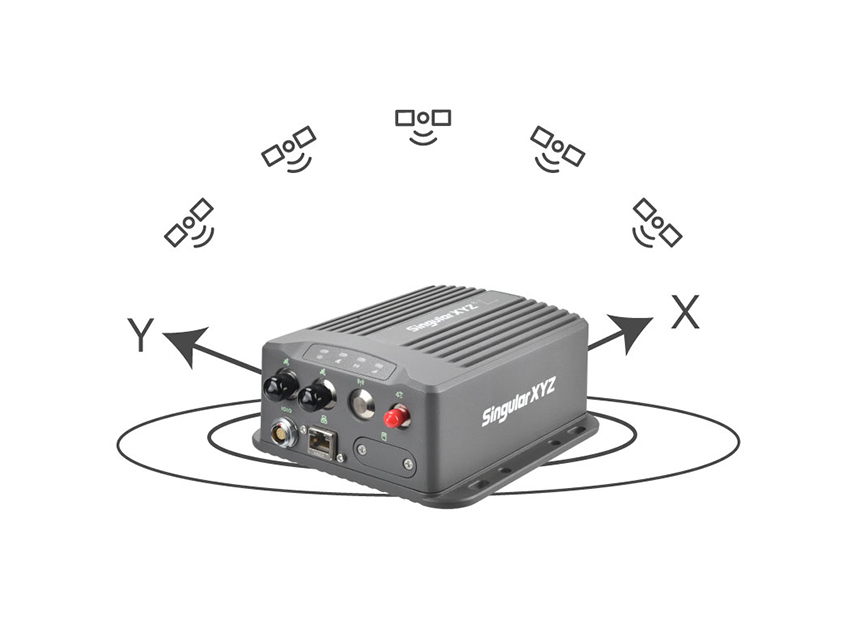

GNSS + INS Fusion

Combining full-constellation GNSS and inertial navigation data, the SV100 INS-D uses a tightly coupled algorithm to overcome signal obstructions in urban canyons and forests, achieving centimeter-level accuracy for reliable performance in challenging environments.

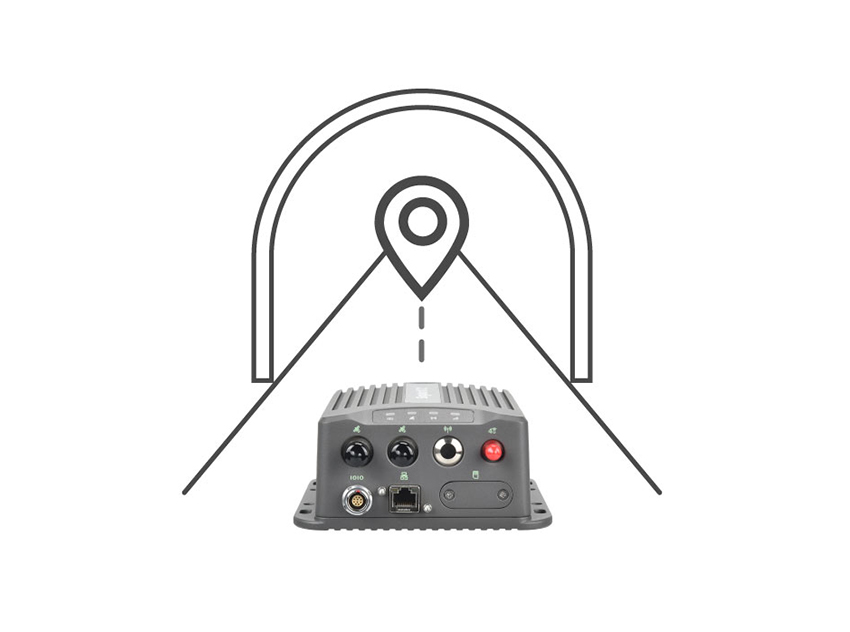

Precise When Signals Loss

With a high-performance 6-axis IMU and next-gen fusion engine, the SV100 INS-D continues to deliver precise position, velocity, and orientation data even when GNSS signals are weak or blocked—such as in tunnels, ports, or under elevated roads.

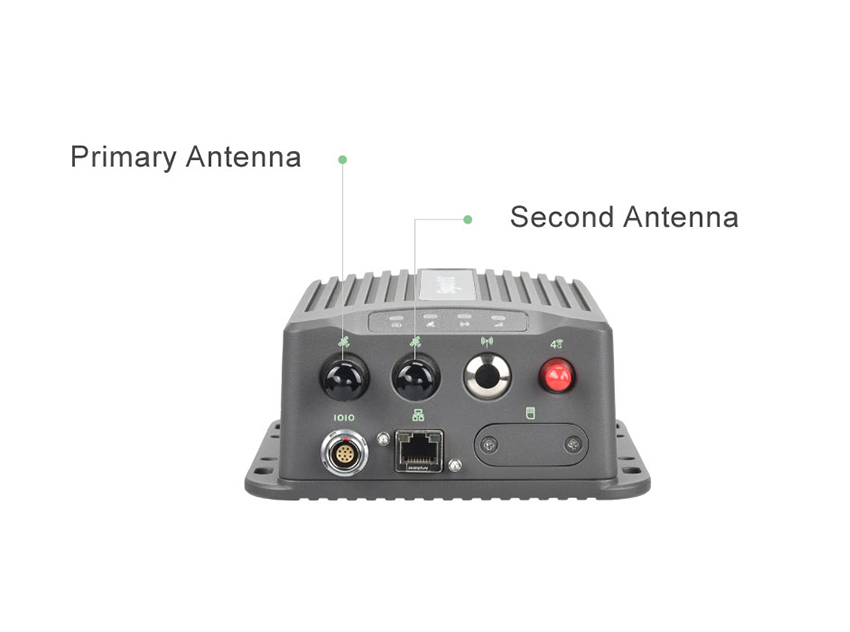

Dual-Antenna Positioning

The SV100 INS-D integrates both a primary and secondary GNSS antenna, enabling accurate heading determination and improved orientation performance—ideal for dynamic applications.

GNSS + INS Fusion

Precise When Signals Loss

Dual-Antenna Positioning

Onboard Data Storage

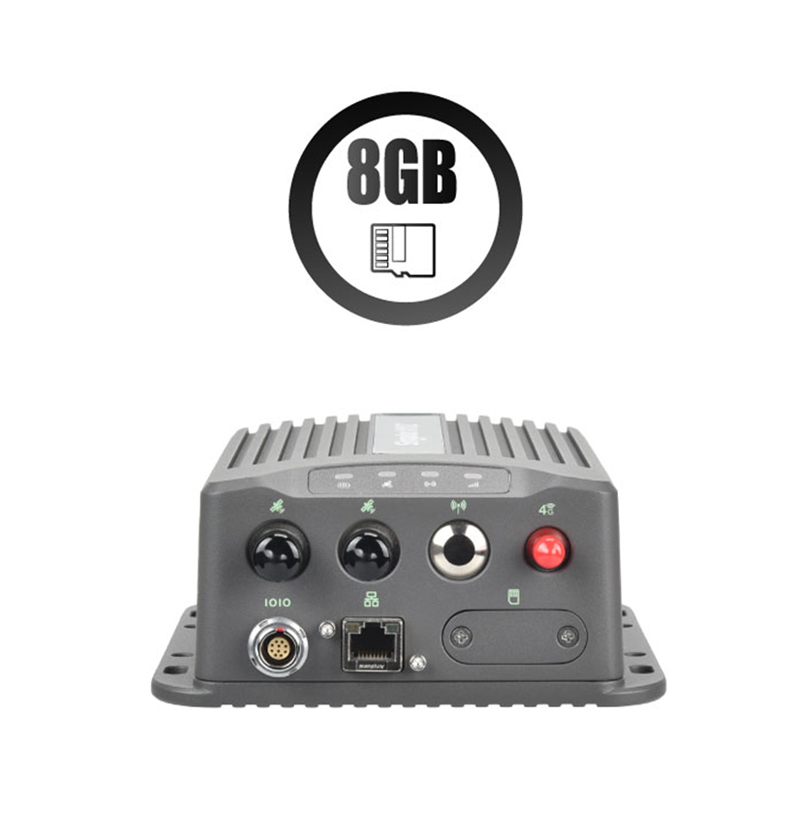

Equipped with 8GB internal memory (expandable to 32GB), the SV100 INS-D supports loop recording of GNSS and INS data for reliable, long-duration operation and post-processing flexibility.

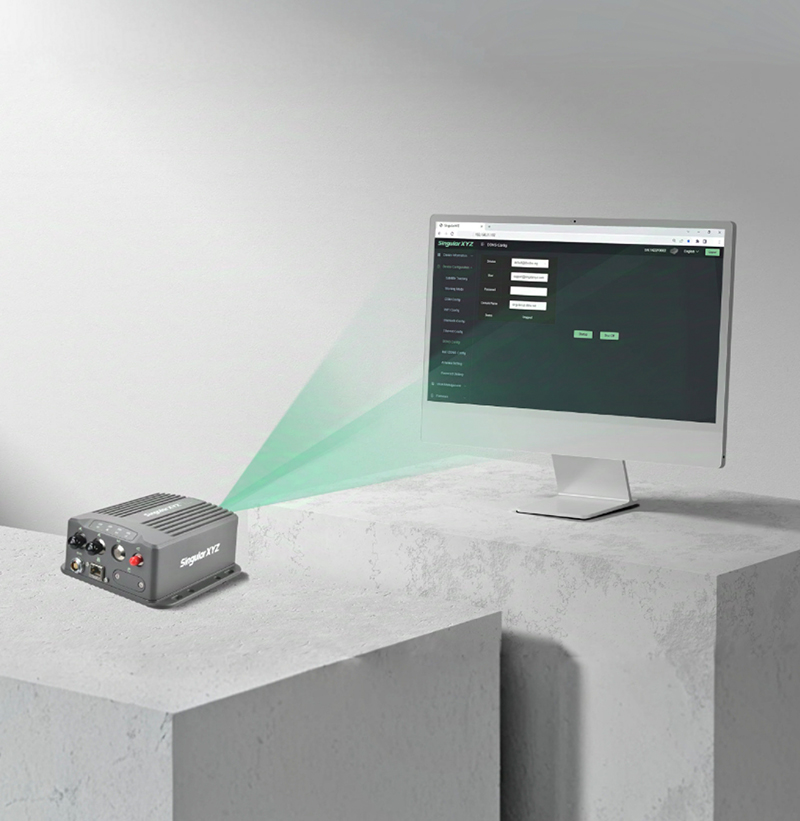

Built-in Web Interface

A user-friendly and comprehensive web interface allows quick setup, mode selection, and status monitoring. Easily configure and manage your device without extra software.

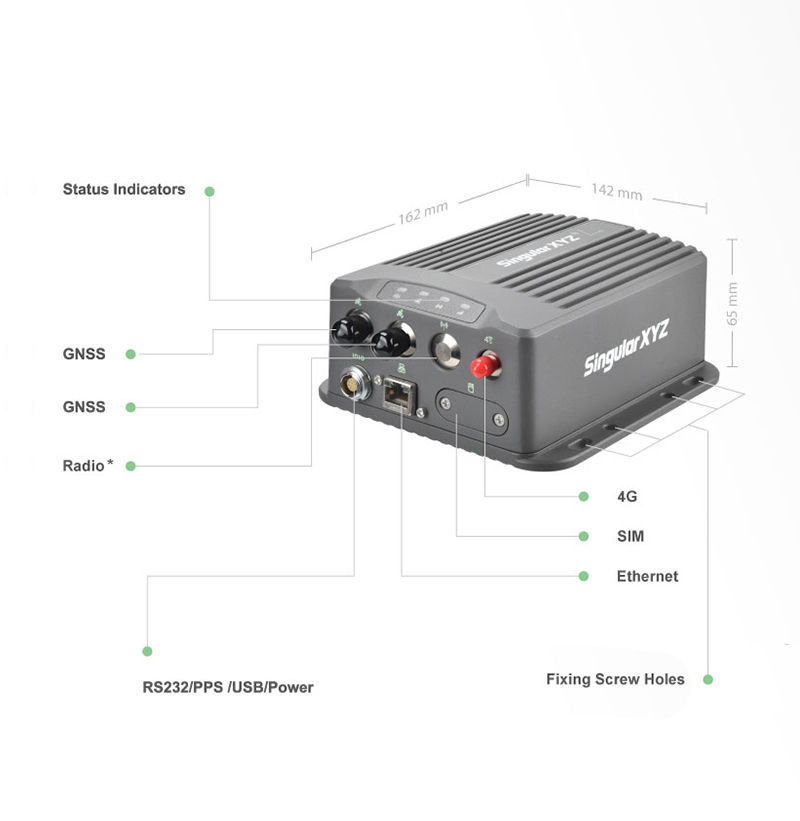

Versatile Communication

Supporting 4G and UHF* for correction data input and RS232, USB, 4G, or LAN for navigation data output, the SV100 INS-D ensures flexible integration with external systems and various working conditions.

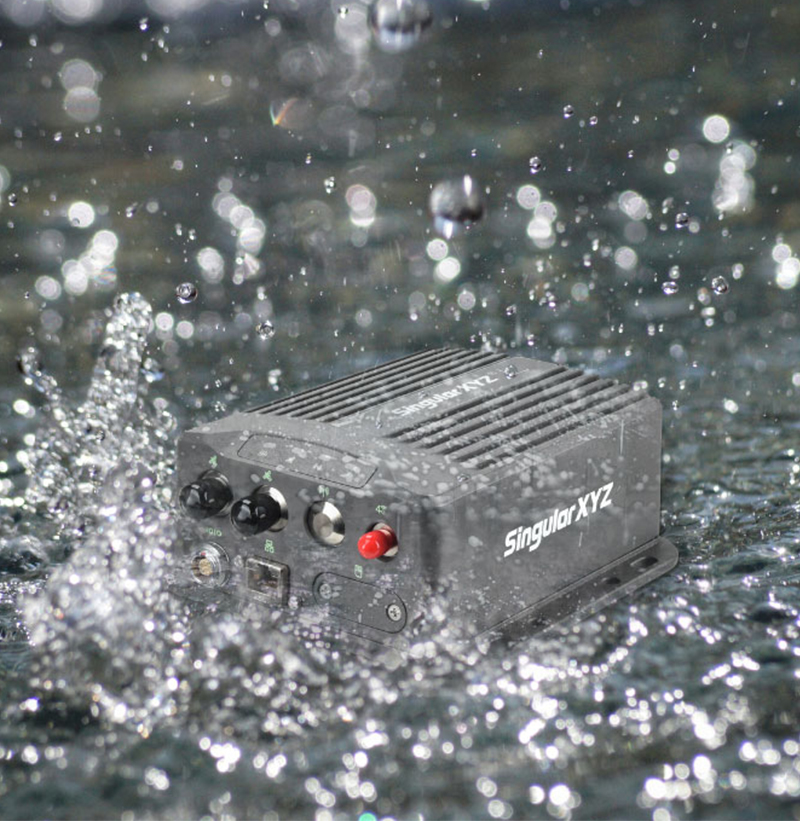

Rugged Build

The IP67-rated, aluminum-alloy housing with MIL-STD-810 anti-vibration design ensures the SV100 INS-D performs reliably in tough field environments and demanding work conditions.

Industries & Applications

Vehicle Navigation

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

INS PERFORMANCE

IMU Type

MEMS

Gyroscope

- Bias Repeatability: 0.4°/h
- Range: ±350°/s
- Bias Instability: 1.6°/h (XY), 1.3°/h (Z)
- Angle Random Walk: 0.08°/√h (XY), 0.08°/√h (Z)

Accelerometer

- Range: ±8g
- Bias Repeatability: 15 mg
- Bias Instability: 16 μg
- Velocity Random Walk: 35 mm/s/√h

IMU data update rate

100Hz

GENERAL

Size

162×142×65 mm, including connectors

Weight

1.05 kg without battery

Housing material

Aluminum alloy

Waterproof & dustproof

IP67

Storage

8 GB, support loop recording
