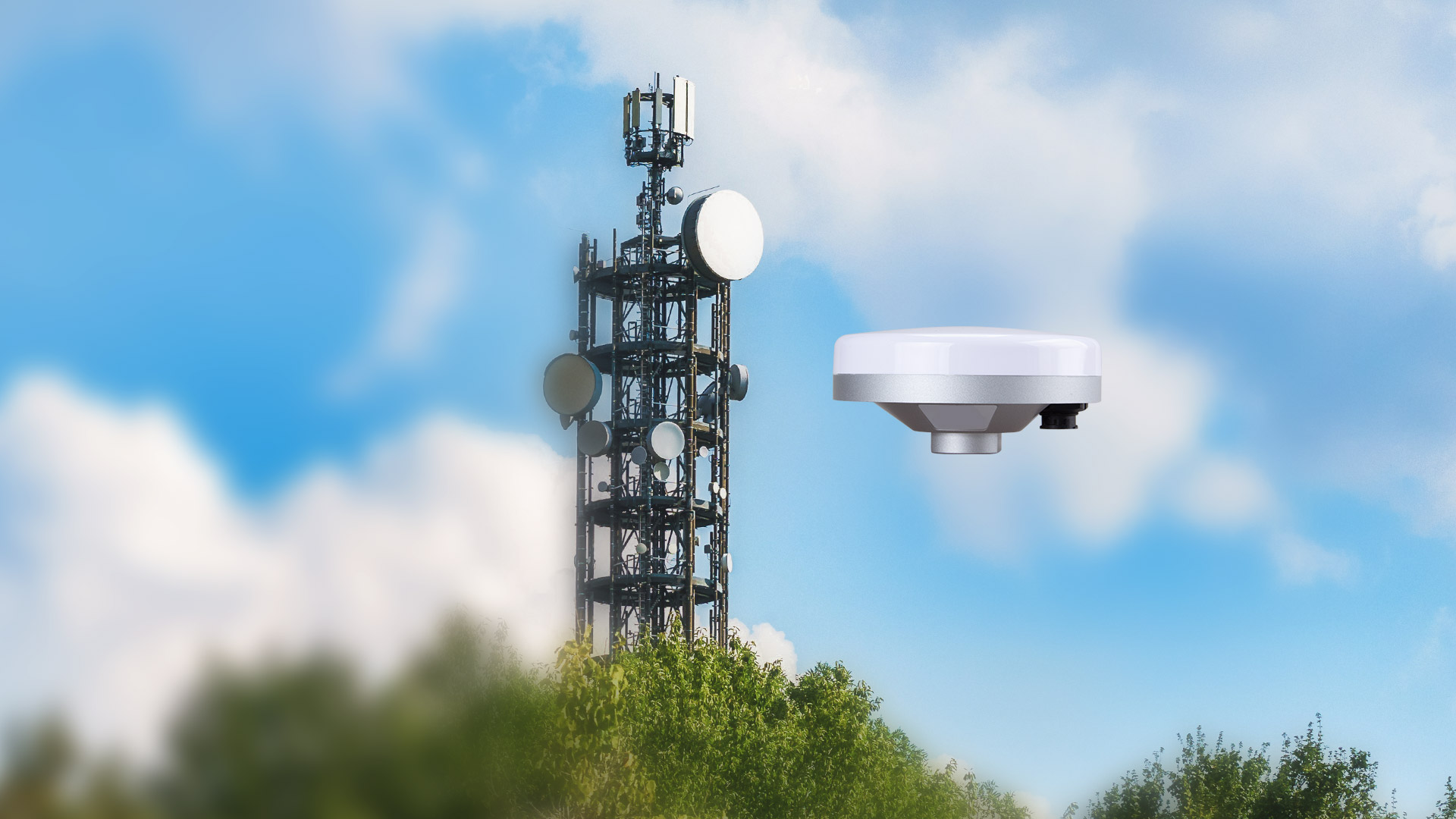

ST100
GNSS TIMING RECEIVER
Precise Timing, Orderly Life
Become a Dealer
Home Products ST100
GNSS TIMING RECEIVER
Nanosecond Timing
Capable of tracking multi-constellation including GPS, GLONASS, BeiDou and Galileo, ST100 can provide PPS (Pulse Per Second) with an accuracy of 15ns. Adopted with optimized anti-interference algorithm, ST100 shows stable and reliable timing performance even in some environments with limited signal or interference.
Wide Applications
In most industries, precise timing largely improves the operational efficiency and saves resources by realizing the synchronization of large network or system, such as telecommunications, electric power grid, meteorology, factory automation and other fields. ST100 can provide users with higher efficiency and productivity in wide applications.
Easy-To-Use
Taking advantages of small size, light weight, low power consumption, short first positioning and reacquisition time, ST100 can effectively meet the needs of users. The IP66 proof level of ST100 is also suitable for harsh environments. Supporting NMEA-0183 and TSIP standard protocols, ST100 can be easily integrated into various solutions.
Nanosecond Timing
Wide Applications
Easy-To-Use
Industries & Applications

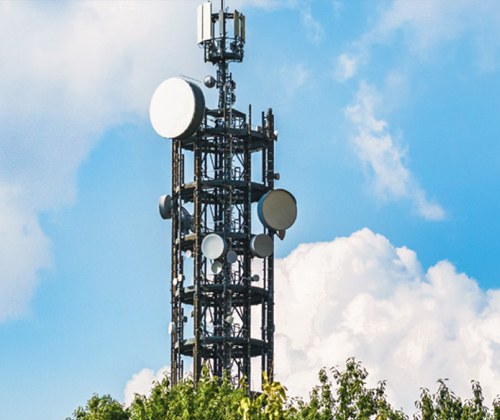

Telecom
Specifications
Resources
GENERAL
GNSS
GPS, GLONASS, BeiDou, Galileo
Acquisition Time
- Cold starts: < 40s
- Warm starts: < 30s
- Hot starts: < 20s
- Reacquisition: < 2s
Sensitivity
Tracking and Nav: -161 dBm
-Re-acquisition: -161 dBm
-Acquisition: -147 dBm
-Cold starts: -148 dBm
PPS Accuracy
15 ns (1 sigma)
AGPS
Support AGPS function, ephemeris input via serial port

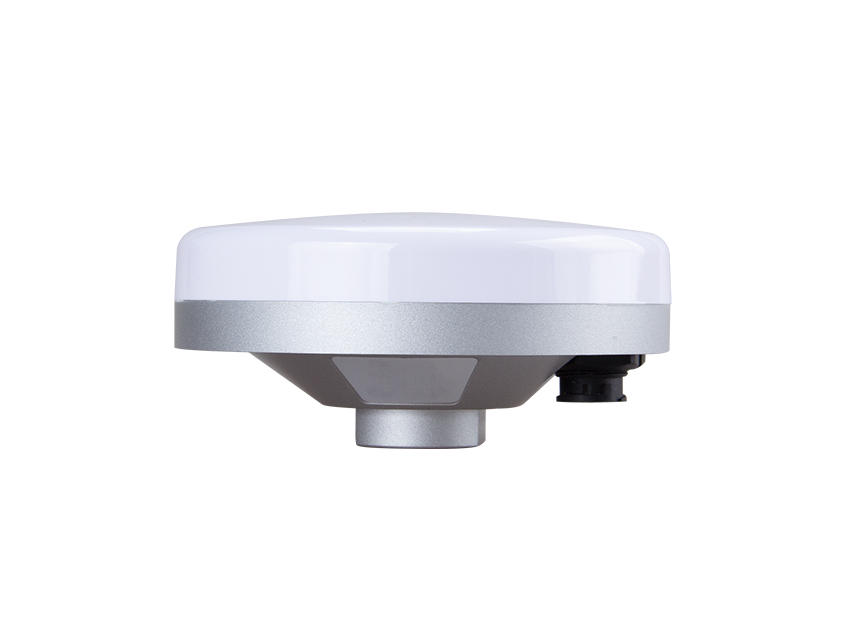

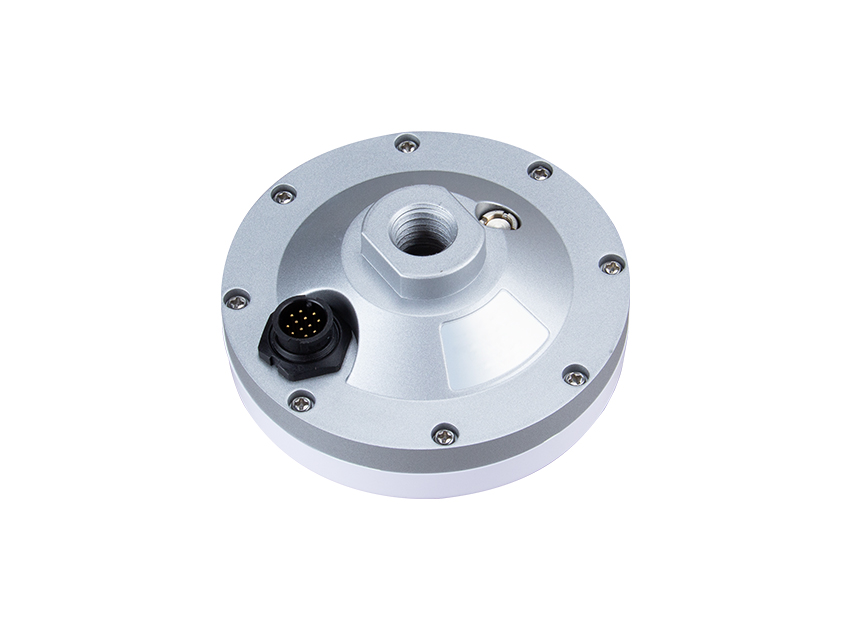

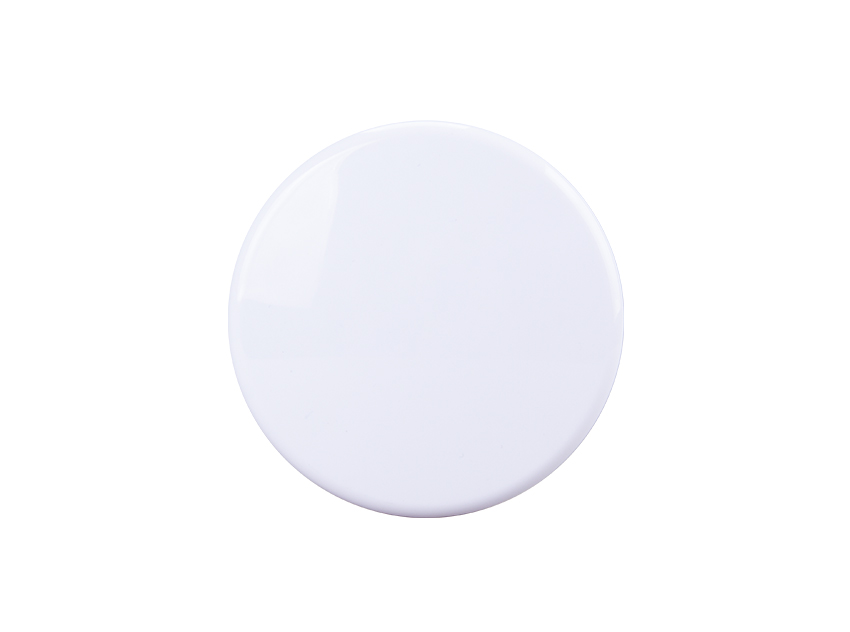

ST100 GNSS Timing Receiver
pdf
2025.06.05
895.52 KB
