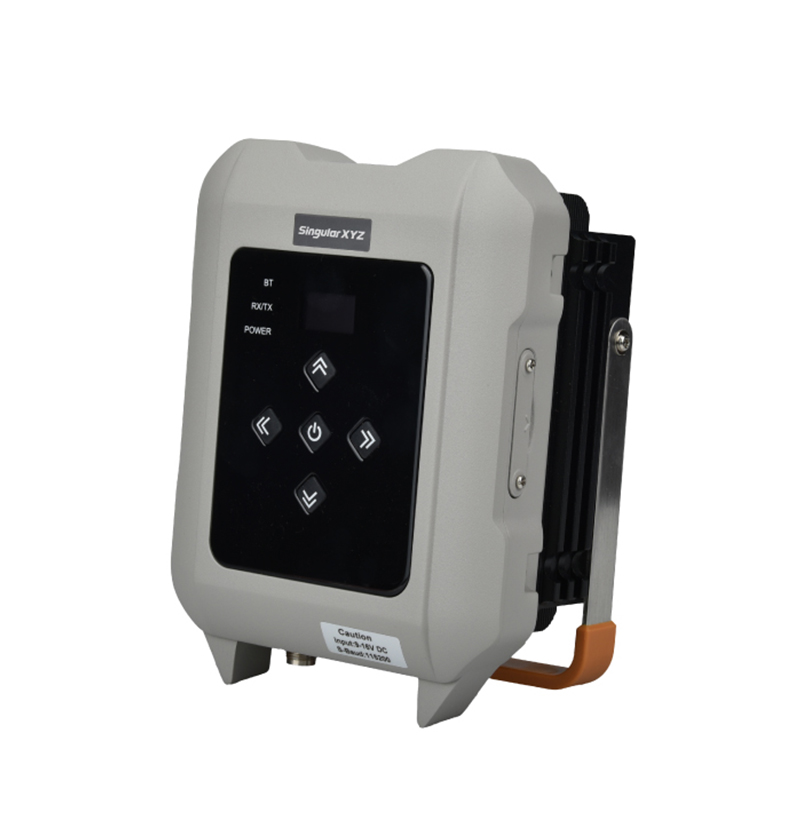

SDL2
EXTERNAL DATALINK

Reliable & Compatible, Extend Your RTK Coverage

Become a Dealer

Home

Products

SDL2
EXTERNAL DATALINK

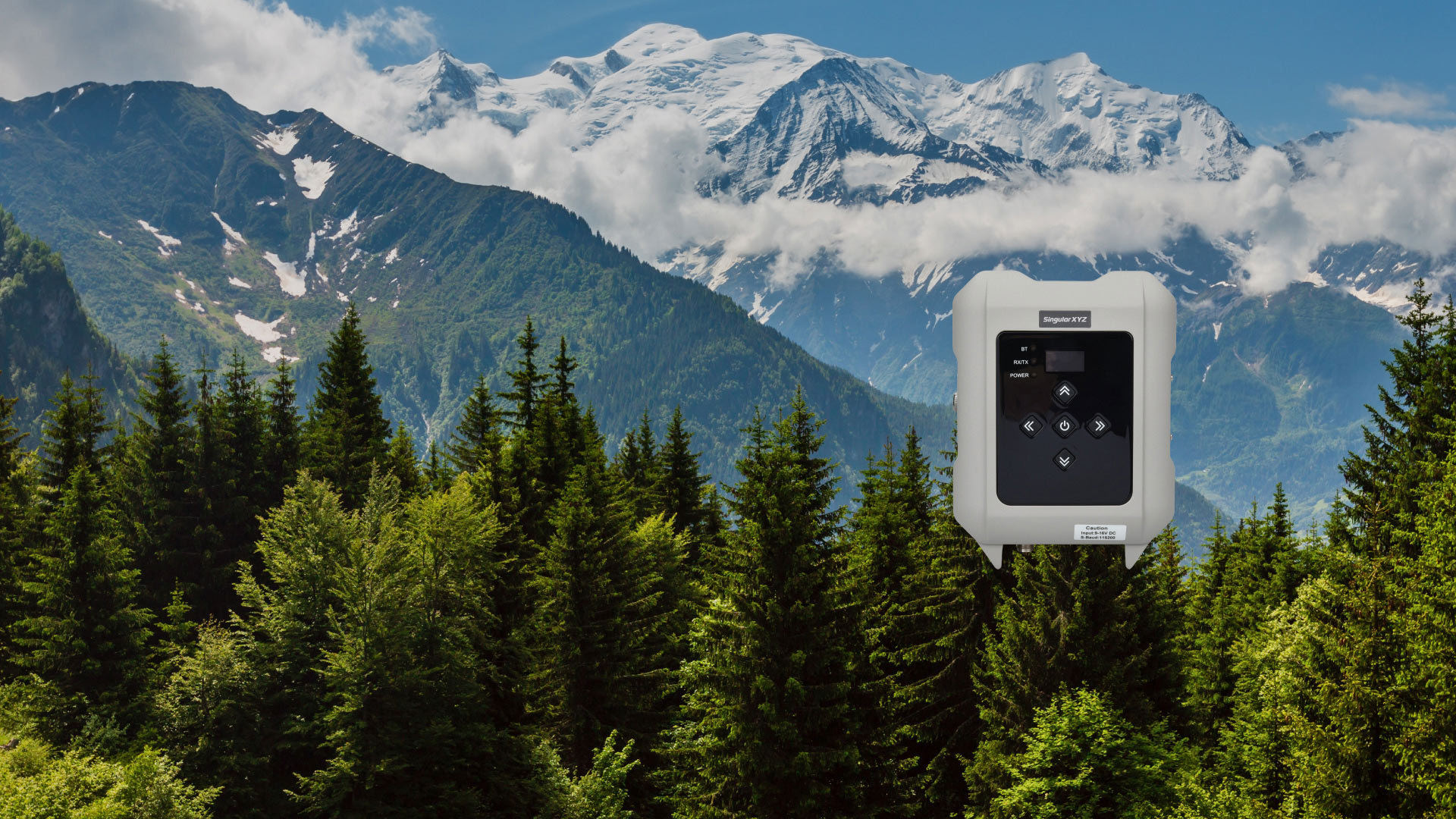

Extended Coverage

The SDL2 external datalink ensures stable RTK correction data transmission over long distances with its high-power transmission. Adjustable from 5W to 28W, it meets the needs of various field conditions, enhancing efficiency even in challenging environments.

High Compatibility

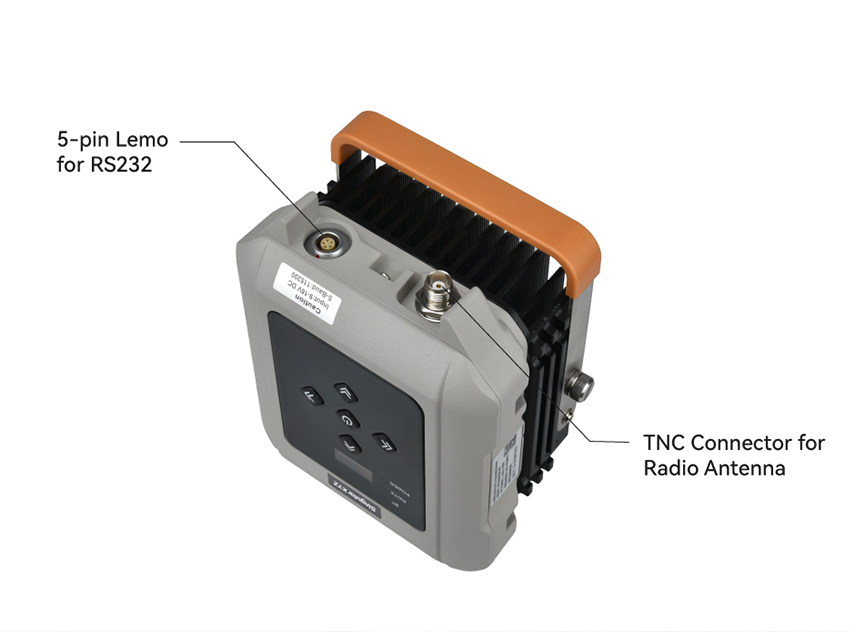

Supporting industry-standard protocols like TRIMTALK, TRIMMK3, TRANSEOT, SATEL, etc., and offering both RS232 and Bluetooth data transfer options, the SDL2 is highly compatible with most RTK receivers, ensuring seamless connectivity across a variety of devices.

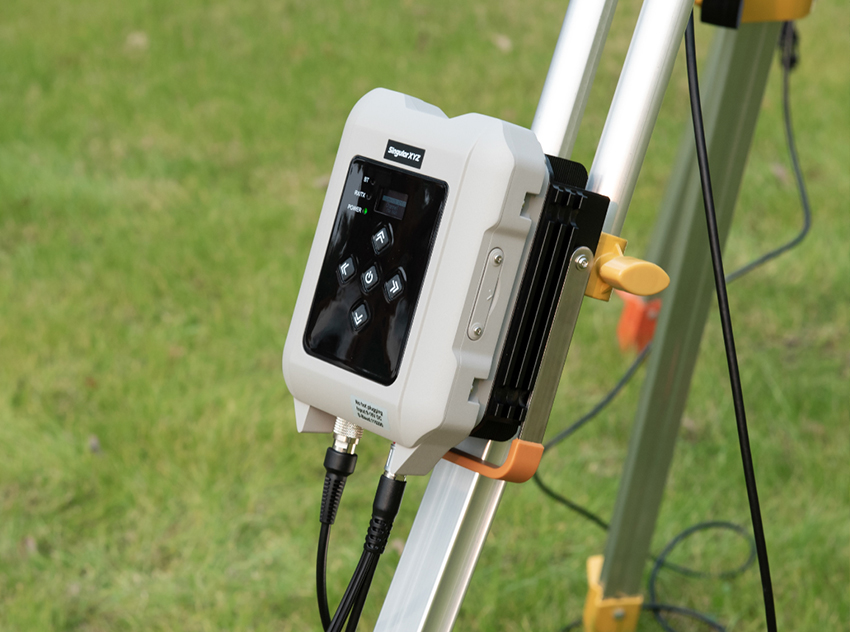

Durable Design

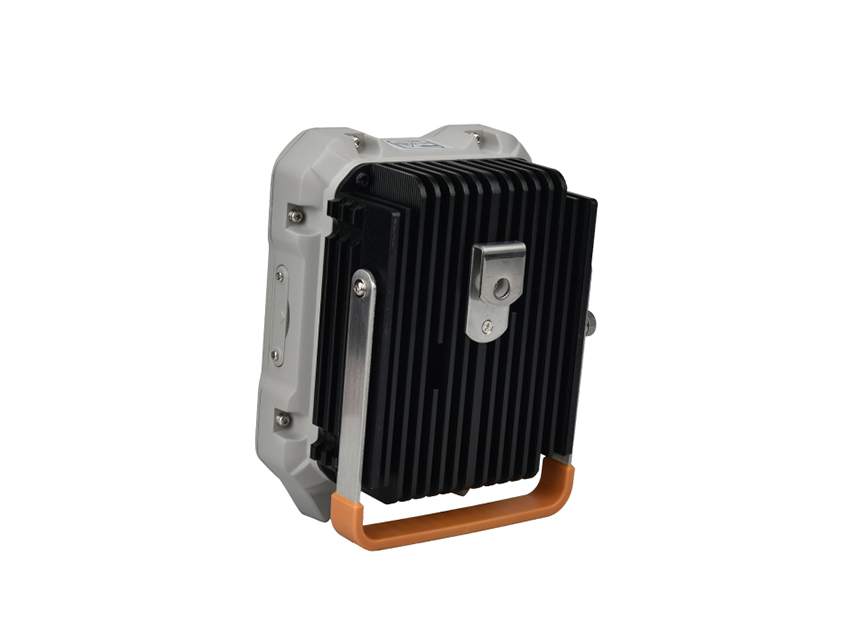

Built with an IP67 rating for waterproof and dustproof protection and heat sink design, the SDL2 ensures durability in harsh conditions. The hook on the back allows easy attachment to a tripod, ensuring stability during long-term outdoor operations.

Extended Coverage

High Compatibility

Durable Design

Superior Data Transmission

Operating within the 410-470 MHz frequency range with 12.5kHz channel spacing, the SDL2 also supports baud rates of 9600bps, 19200bps, 38400bps, and 115200bps, ensuring efficient and lossless data transmission in diverse environments.

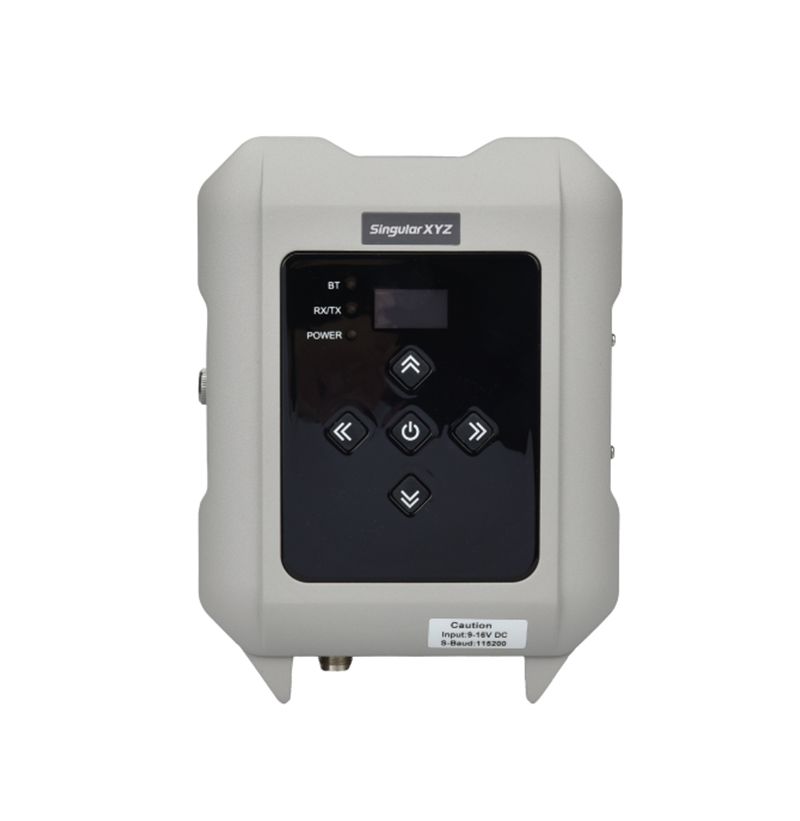

Easy Interaction

With an OLED display, simple operation buttons, and 3 LED indicators for Bluetooth, correction data and power status, the SDL2 allows for easy configuration and status monitoring directly on-site, making it user-friendly in the field.

Industries & Applications

Land Surveying

Specifications

Resources

RF PERFORMANCE

Frequency Range

410-470 MHz

Channel Spacing

GFSK mode: 12.5 kHz, 25 kHz

Work Mode

Half-duplex

Frequency Stability

<±1.5ppm

RF power stability

±1.5dB

Adjacent channel power

>50dB

GENERAL

Size

175×130×86.5mm

Weight

2 kg

User Interaction

- 1 OLED screen
- 5 buttons
- 3 status indicators

Waterproof & Dustproof

IP67

SDL2 External Datalink
