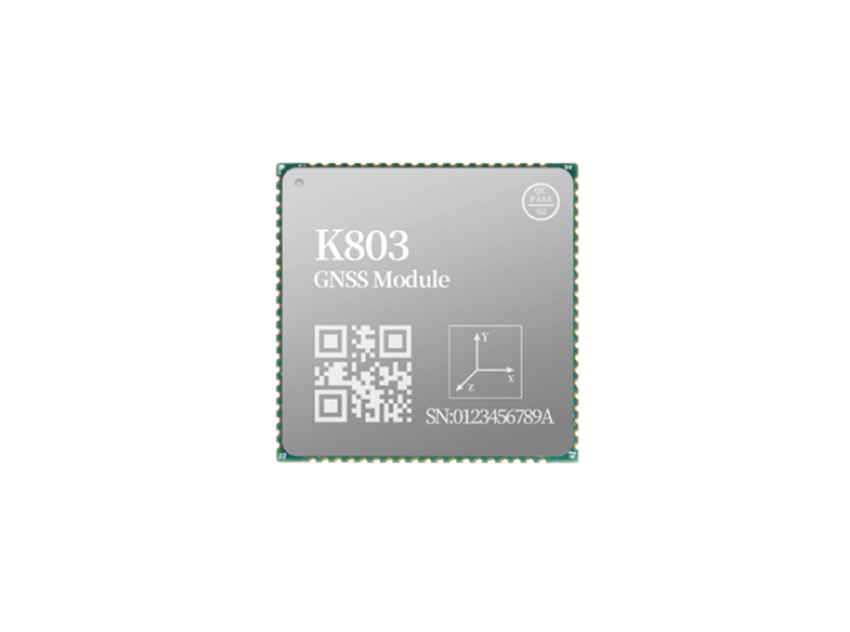

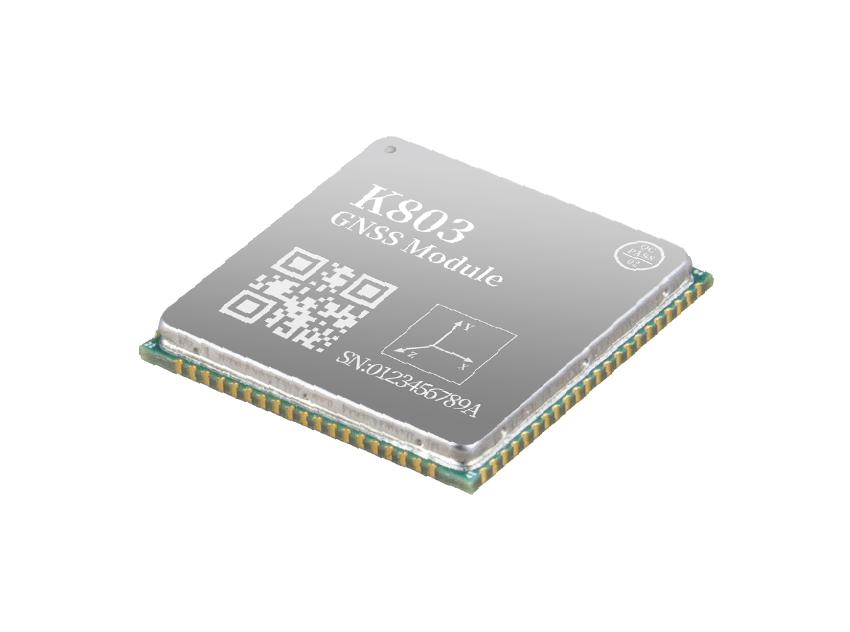

K803
GNSS MODULE
Designed for Your Versatile Integrations
Become a Dealer
Home Products K803
GNSS MODULE
Full-Constellation Tracking
A full-constellation & triple-frequency GNSS OEM board, tracking GPS, BeiDou, BeiDou Global Signal, GLONASS, Galileo, QZSS, IRNSS, SBAS and L-Band.
Easy Integration

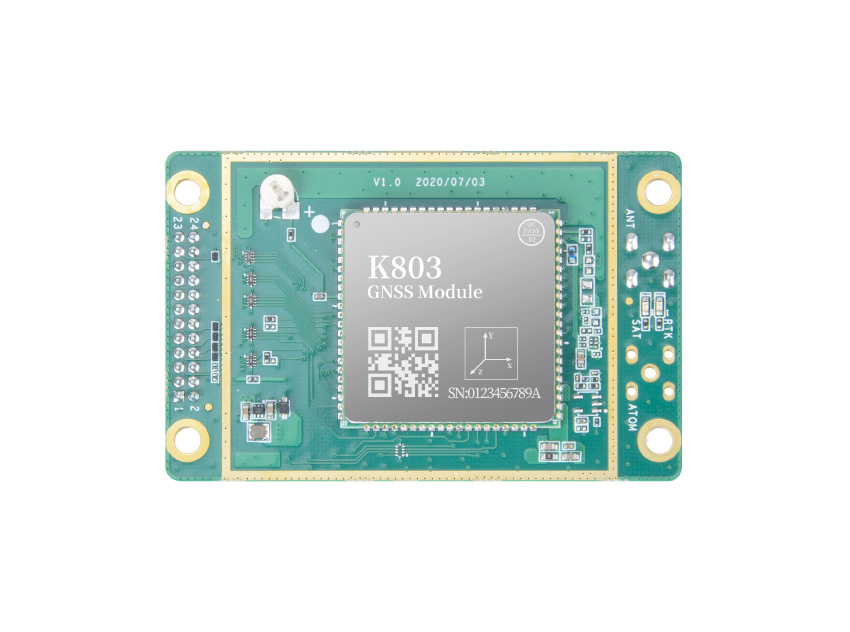

With small size of 30mm×30mm×3.2mm, 82-pin surface-mounted design and 1.0W low power, K803 module is ideal for users to integrate. In addition, the K803 also provides card version that pin-to-pin with common OEM boards on the market.
Wide Applications
Equipped with an onboard high-precision IMU module, K803 can provide continuous and high-quality positioning data with inertial navigation fusion algorithm, which can be applied in wide applications such as land surveying UAV, machine guidance, IoT and etc.
Full-Constellation Tracking
Easy Integration
Wide Applications
Industries & Applications
Land Surveying
Unmanned Systems
Precision Agriculture
Specifications
Resources
SATELLITES TRACKING
BDS
B1I, B2I, B3I, B1C, B2a, B2b
GPS
L1C/A, L2P,L2C, L5, L1C
GLONASS
G1, G2, G3
Galileo
E1, E5b, E5a, E6*, E5 AltBoc*
QZSS
L1C, L2, L5, L1C/A
GENERAL
Size
30×30×3.2 mm
I/O Interface
LGA 82Pin, 1.27mm
Weight
8g
Power Consumption
1W
K8-Series GNSS OEM Modules
pdf
2025.06.05
665.78 KB
Download
