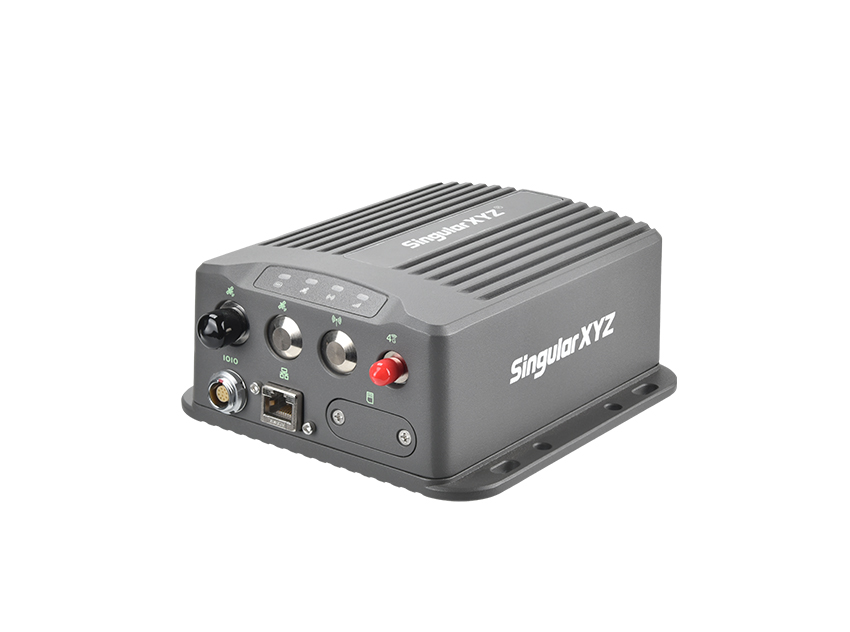

SV100
GNSS RECEIVER

For Your Reference Stations/Portable Base

Become a Dealer

Home

Products

SV100
GNSS RECEIVER

Full-Constellation Tracking

To ensure superior GNSS performance in all application scenarios, SV100 is equipped with a high-precision GNSS engine for simultaneously tracking GPS, BDS, GLONASS, Galileo & QZSS. Embedded with multi-frequency anti-jamming technology, SV100 offers high quality and stable GNSS data.

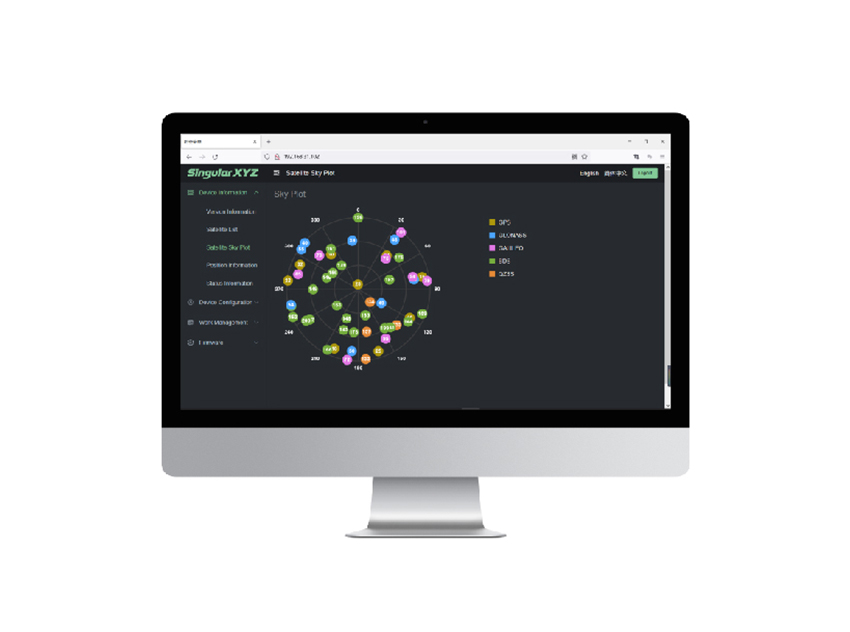

Web Flexible Configuration

For professional users of reference stations, the web UI accessed via Ethernet/ WiFi contains comprehensive status display, working modes and data transfer settings. For field users of portable base stations, SingularXYZ also provides an android app connected via Bluetooth, offering a clean interface for necessary functions.

24/7 Continuous Operation

Except for the external power supply, SV100 is also optional for a 6600mAh battery to avoid sudden power failure or voltage instability. With a 4G network as the backup for Ethernet, and an MTBF of over 20,000 hours, SV100 guarantees your ultra-stable continuous reference station.

Full-Constellation

Flexible Configuration

24/7 Operation

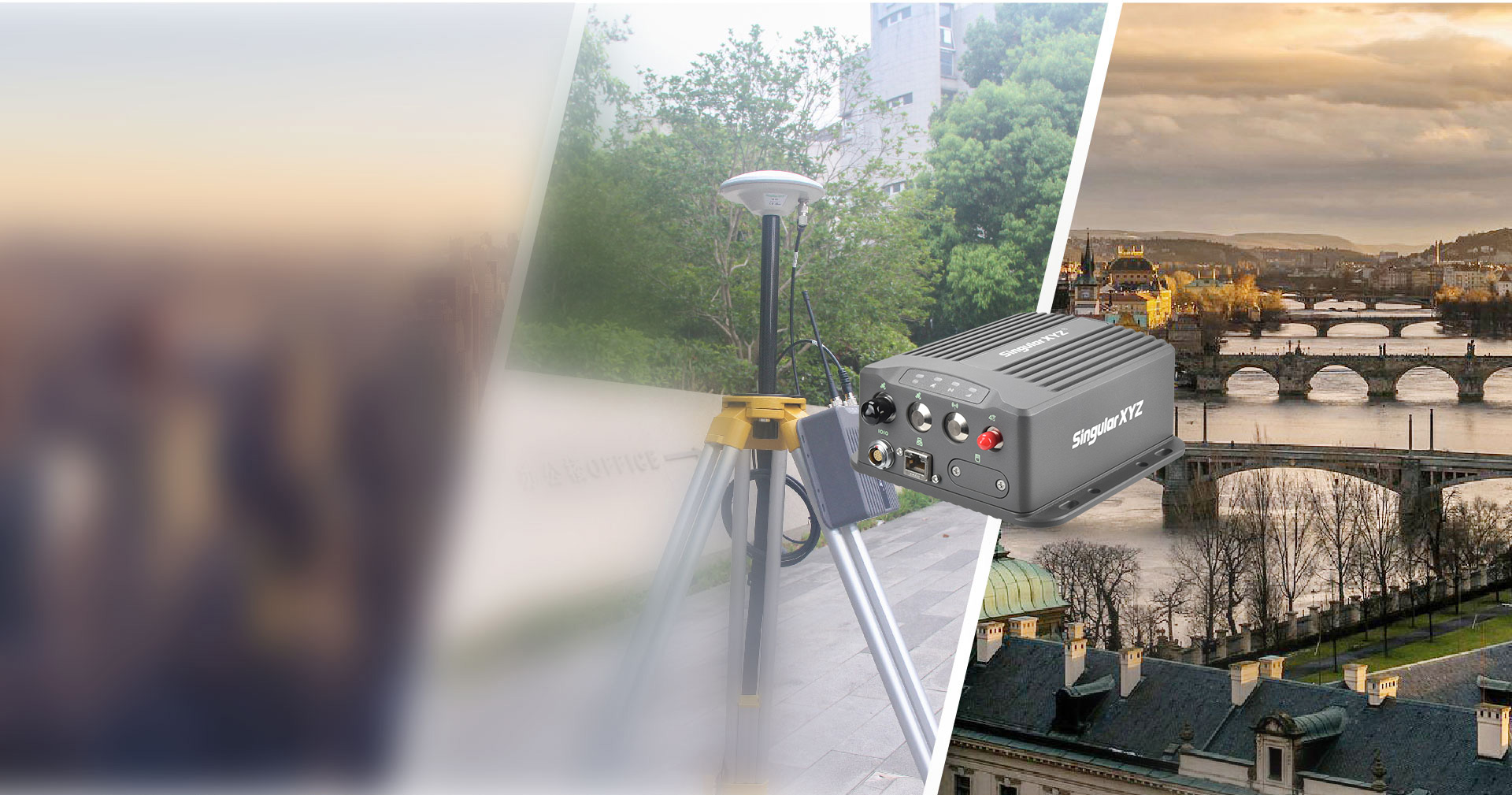

Both CORS & Portable Base

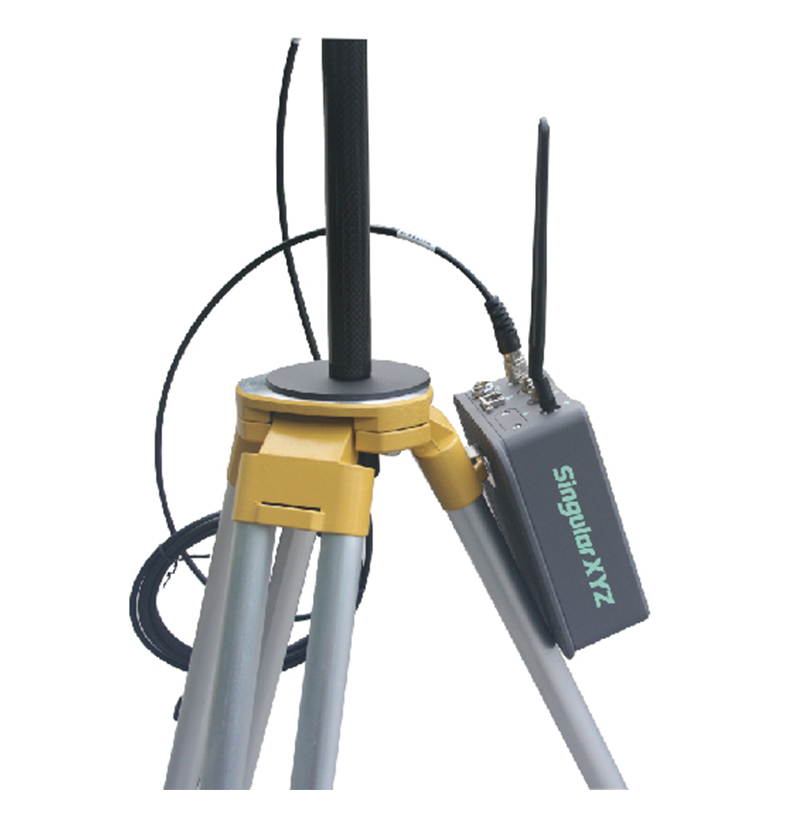

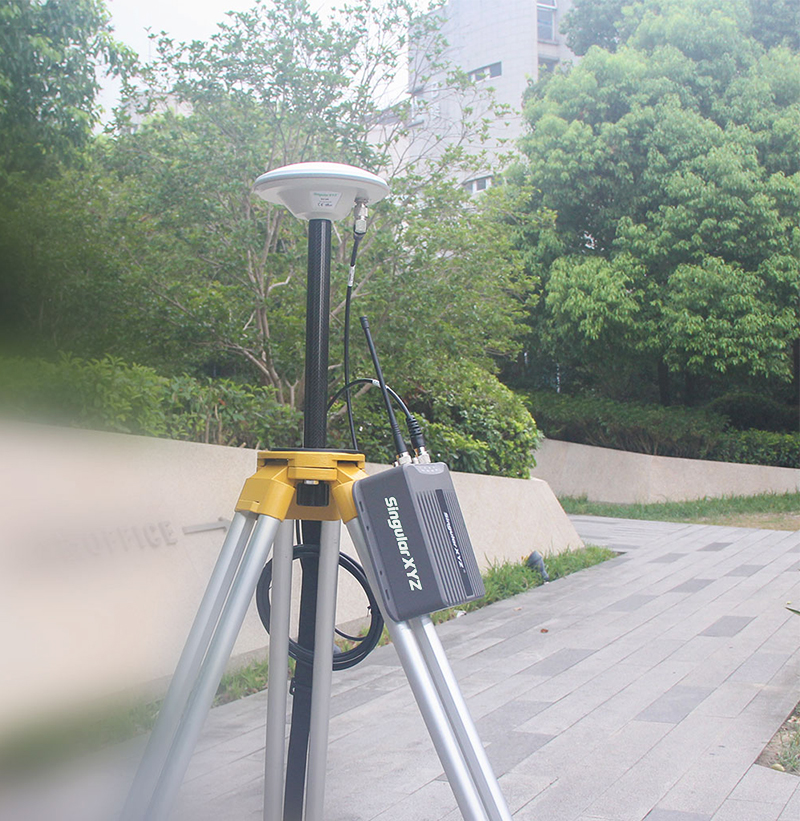

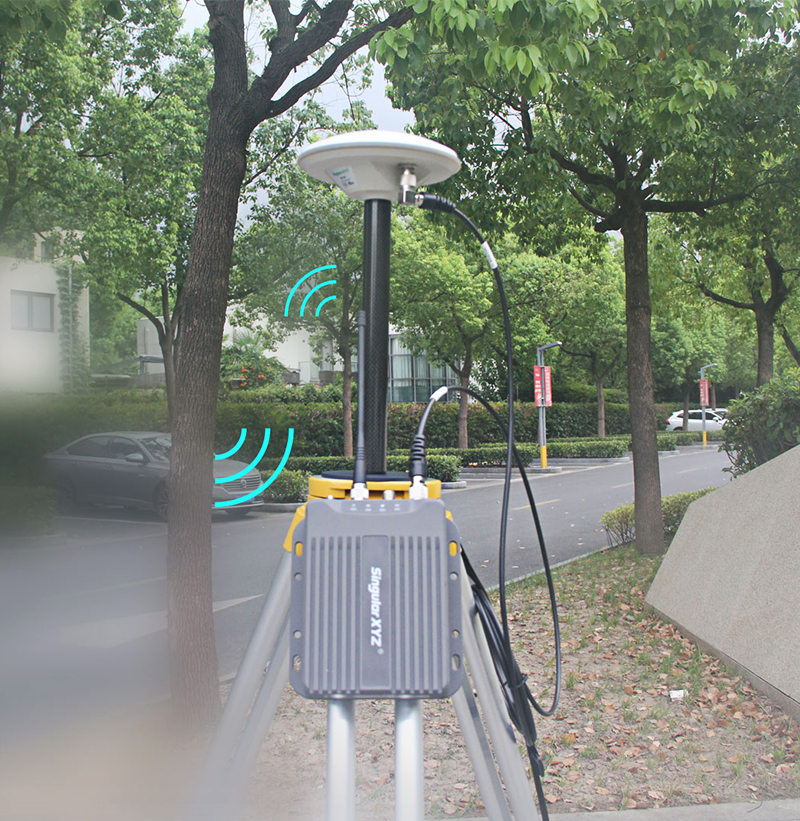

With a stable choke ring antenna installed outdoors, SV100 can serve as a reference station, providing stable GNSS raw data for CORS network or deformation monitoring. In addition, with the detachable hook, SV100 can also be easily attached to the tripod as a portable base station for your construction site or precision agriculture.

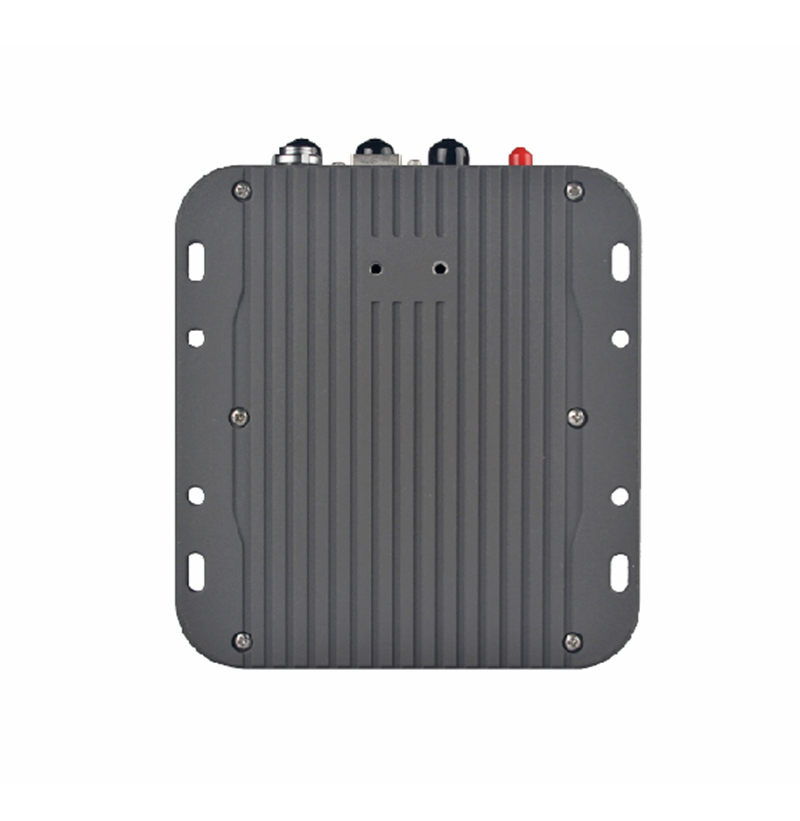

Rugged Housing

Considering various working environments, the SV100 is protected with rugged housing. IP67 waterproof and dustproof design, suitable for outdoor work in all kinds of weather. Aluminum alloy housing and compact structure to avoid accidental drop damage.

Flexible Transmission

When broadcasting correction data as a portable base, users can select to insert the SIM card to transmit via 4G, or connect the UHF antenna to transmit via radio. SV100 supports multiple radio protocols to compatible with your RTK receivers, such as TRIMATLK, TRANSEOT, SATEL, TRIMMARK3, etc.

RTK Bridge

In addition to the reference station and portable base, the SV100 GNSS receiver can also work as a RTK bridge. For projects that requires uniform coordinate systems of local CORS, SV100 can connect to the CORS via 4G and broadcast correction data to the project site, largely saving your cost.

Software & Platform

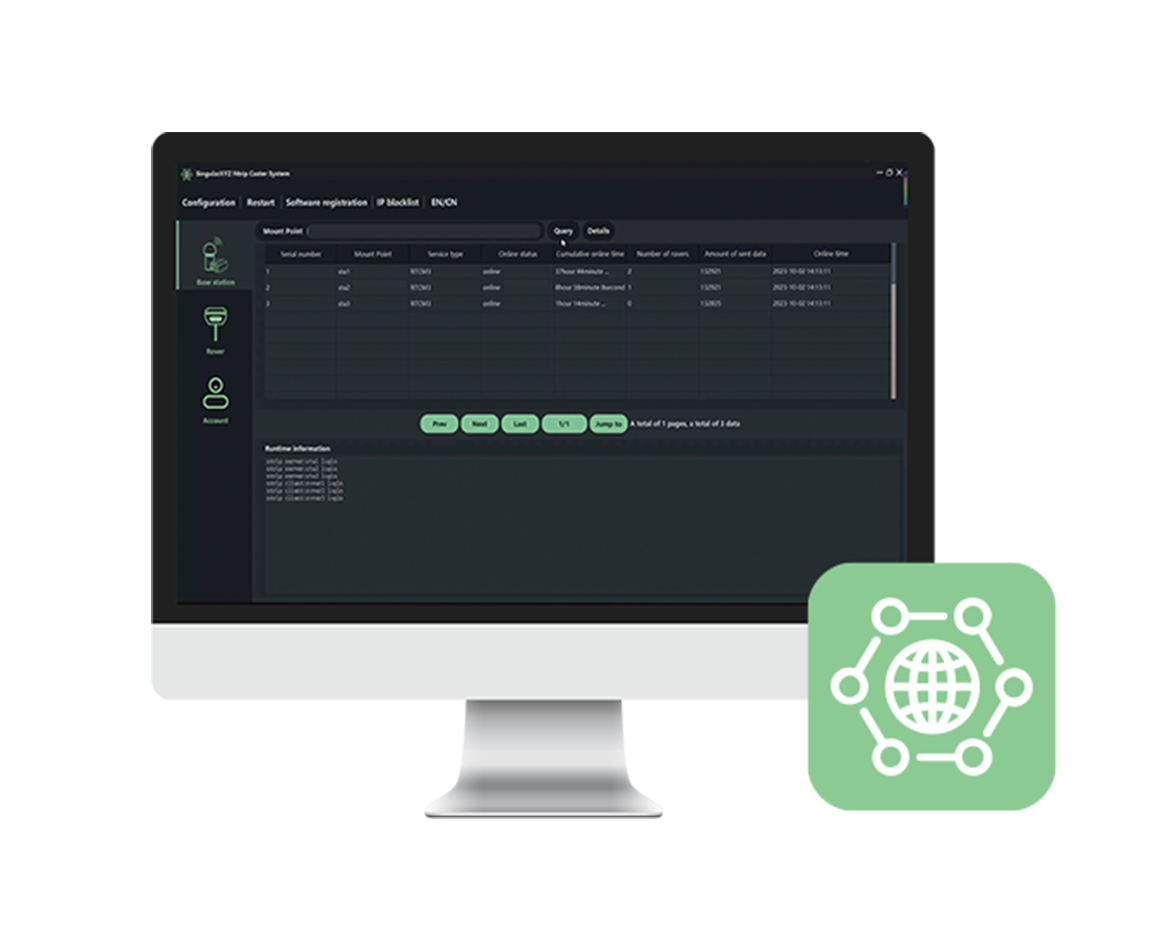

SingularCaster CORS Platform

SingularCaster is designed for your CORS network management, incorporating features such as base station management, online rover management, user subscription management, and system logs.

Industries & Applications

CORS

Monitoring

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

GENERAL

Linux

WebUI

Accessible via Wi-Fi

MTBF

> 20000 hours

Size

162×142×65 mm, including connectors

Weight

1.05 kg without battery

Waterproof & Dustproof

IP67

COMMUNICATION

UHF modem

Optional

Bluetooth

BT4.0 dual mode

Support

WiFi

802.11 a/b/g/n/ac

Interface

- 1 10-pin connector, including 1 RS232, 1 PPS output, 1 USB and power supply
- 1 RJ45 for Ethernet
- 1 TNC connector for GNSS antenna
- 1 TNC connector for UHF* antenna
- 1 SMA connector for 4G antenna
- 1 SIM card slot

Network protocol

TCP, MQTT*, Ntrip Server, Ntrip Caster
