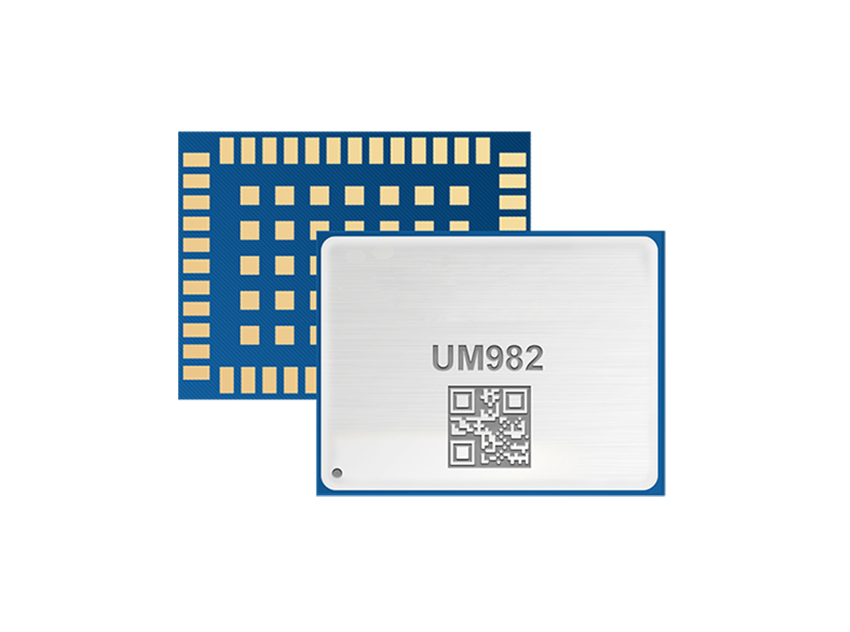

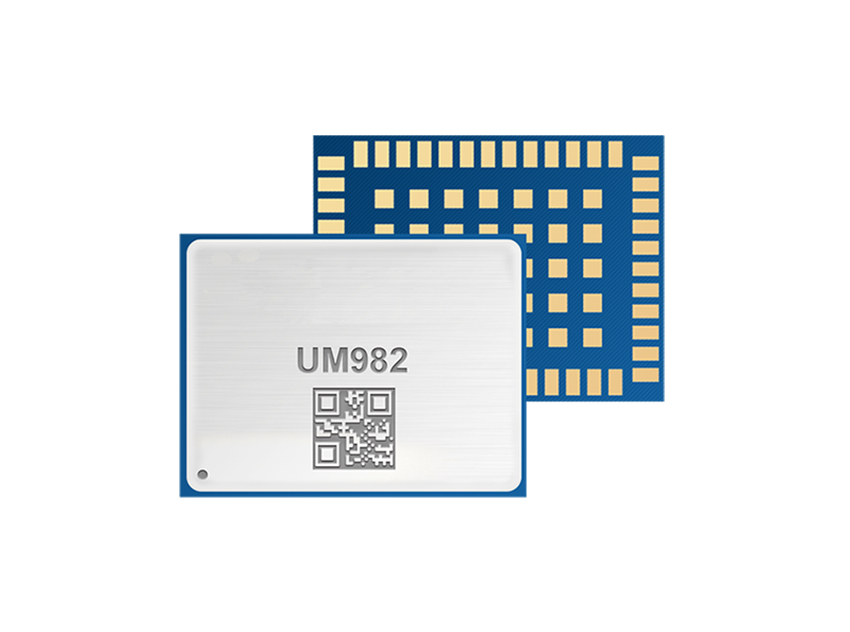

UM982
GNSS MODULE
Dual-antenna For High Precision Navigation
Become a Dealer
Home Products UM982
GNSS MODULE
Full-Constellation Tracking
As a full-constellation GNSS module, UM982 tracks GPS, BDS, GLONASS, Galileo and QZSS for stable satellite signals. Embedded anti-jamming technology and enhanced RTK engine solution significantly improve RTK accuracy and reliability in complex environments.
Easy Integration
Measuring only 16mm x 21mm x 2.6mm and with a 48-pin surface mount design, the UM982 can be easily embedded into most devices. With 600mW low power consumption, UM982 is more suitable for applications that are highly sensitive to power consumption such as UAVs.
Wide Applications
Designed with high accuracy positioning and heading data, high reliability even in complex electromagnetic environment, UM982 module can be widely applied in UAVs, USVs, robotics, transportation, logistics, autonomous machine, precision agriculture, etc.
Full-Constellation Tracking
Easy Integration
Wide Applications
Industries & Applications
UAV Integration
Vehicle Navigation
Precision Agriculture
Specifications
Resources
SATELLITES TRACKING
BDS
B1I, B2I, B3I, B1C, B2a, B2b
GPS
L1C/A, L1C, L2C, L2P(Y), L5
GLONASS
G1, G2, G3
Galileo
E1, E5a, E5b, E6
QZSS
L1C/A, L1C, L2C, L5
GENERAL
Dimensions
21 × 16 × 2.6 mm
Hardware interface
48 pin LGA
Weight
1.82 g ±0.03 g
Power consumption
600 Mw (typical)
Voltage
+3.0 V~+3.6 V DC
UM982 GNSS Module
pdf
2025.06.05
1.21 MB
Download
