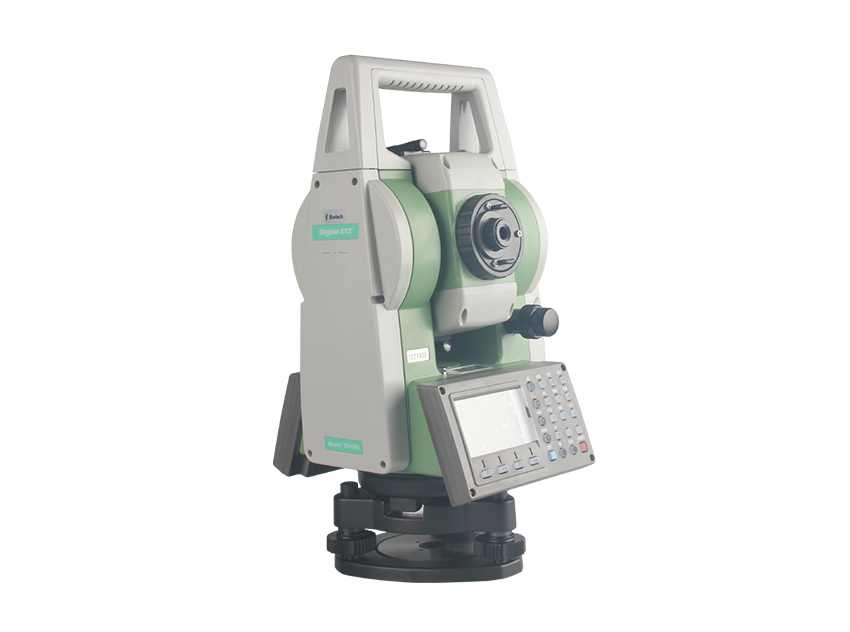

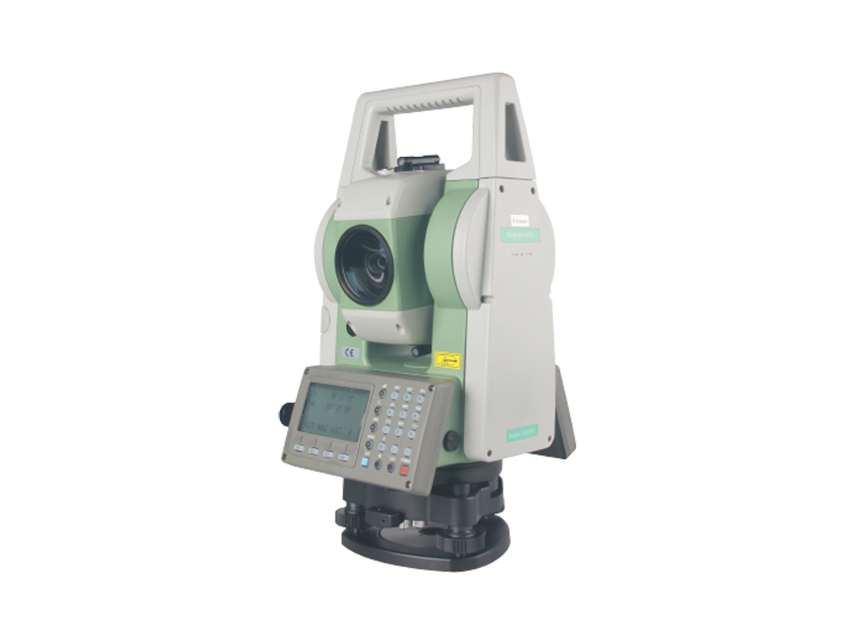

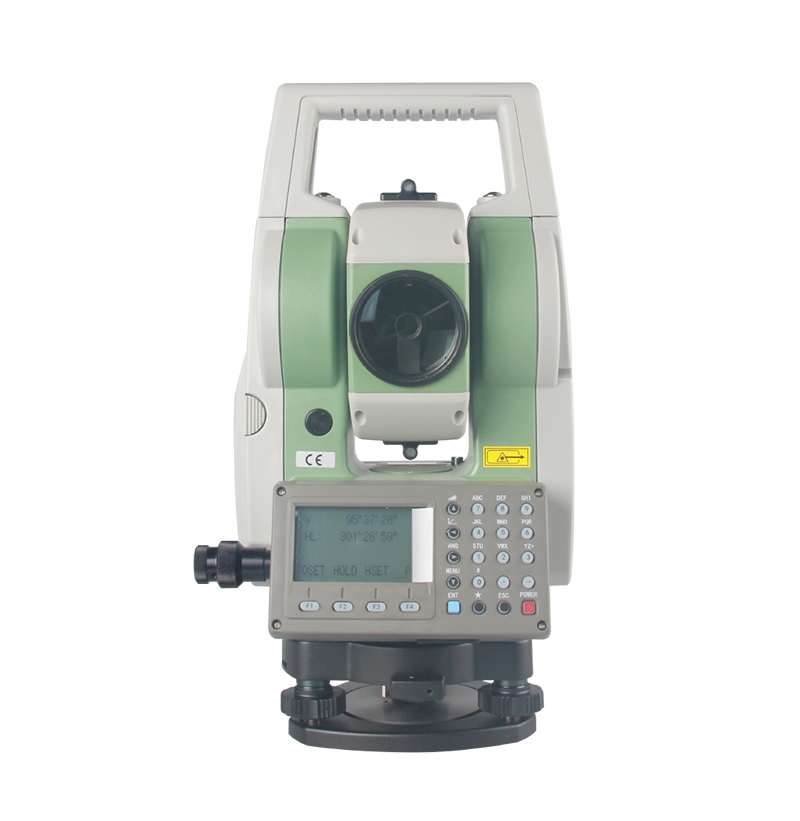

TS1000
TOTAL STATION

Brand New Experience With Surveying Software

Become a Dealer

Home

Products

TS1000
TOTAL STATION

Precise Measurement

For angle measurement, the TS1000 can reach 2" accuracy. For distance measurement, the TS1000 total station supports 5mm non-prism accuracy and 2mm single prism accuracy.

Long Distance Range

The TS1000 total station supports up to 1000m non-prism measurement range. With a single prism, the range can be extended to 7500m in 2mm accuracy.

For Both RTK & Total Station

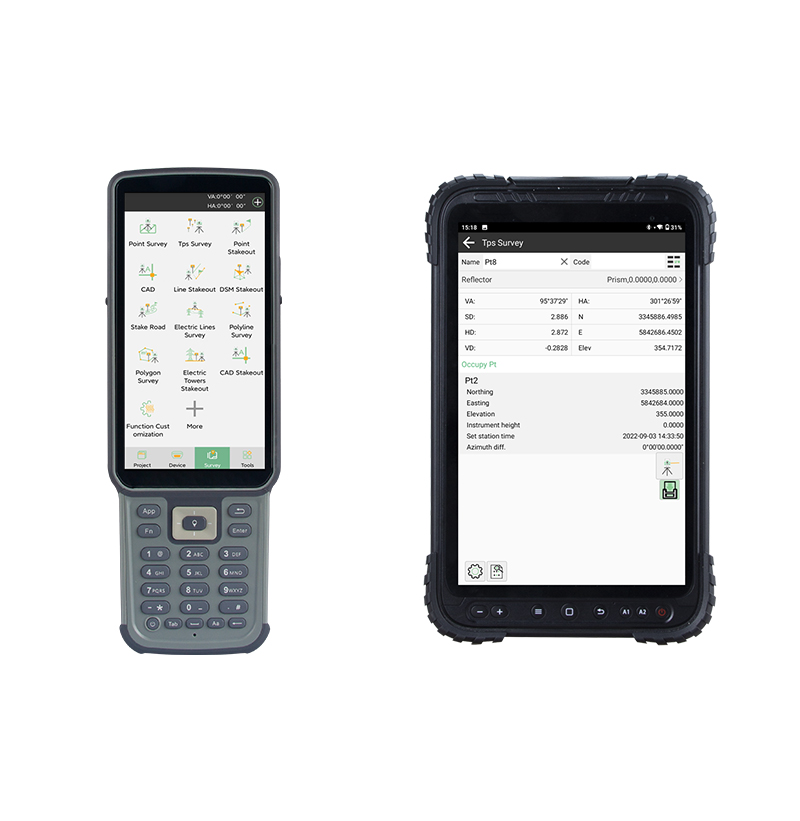

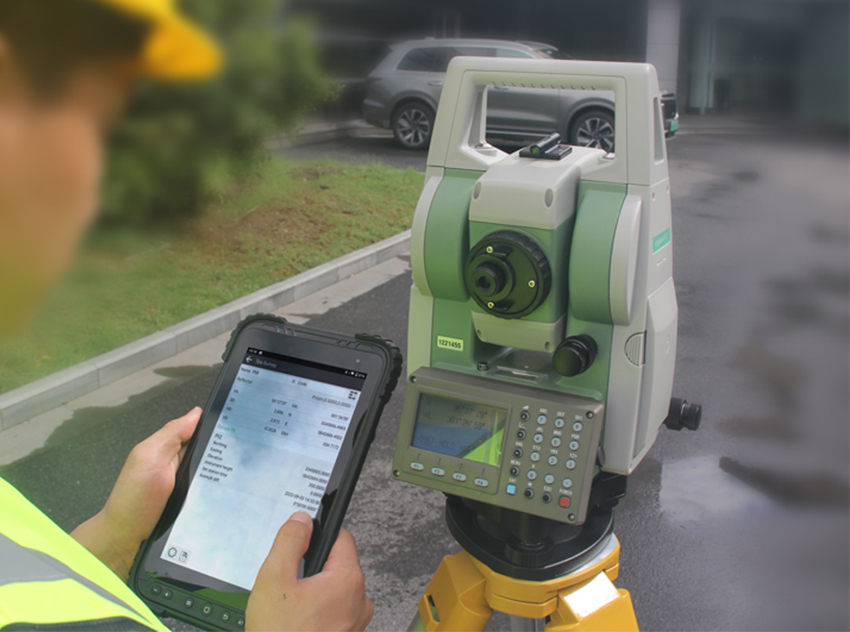

Connected via Bluetooth, the TS1000 can realize easy measurement and data storage in RTK surveying software SingularPad. Both GNSS and optical survey tasks can be performed smoothly under the same project and datum. You can share the real-time stakeout position with prism operators through SingularPad for convenient stakeout.

Precise Measurement

Long Distance Range

For Both RTK & Total Station

Versatile Surveying

Based on SingularPad field surveying software, the point survey, stakeout, CAD and other functions are all compatible with TS1000 total station, providing brand new experiences for total station users.

Flexible Storage

Internal 40,000 points memory, external USB and field software storage provide enough capacity for your various tasks.

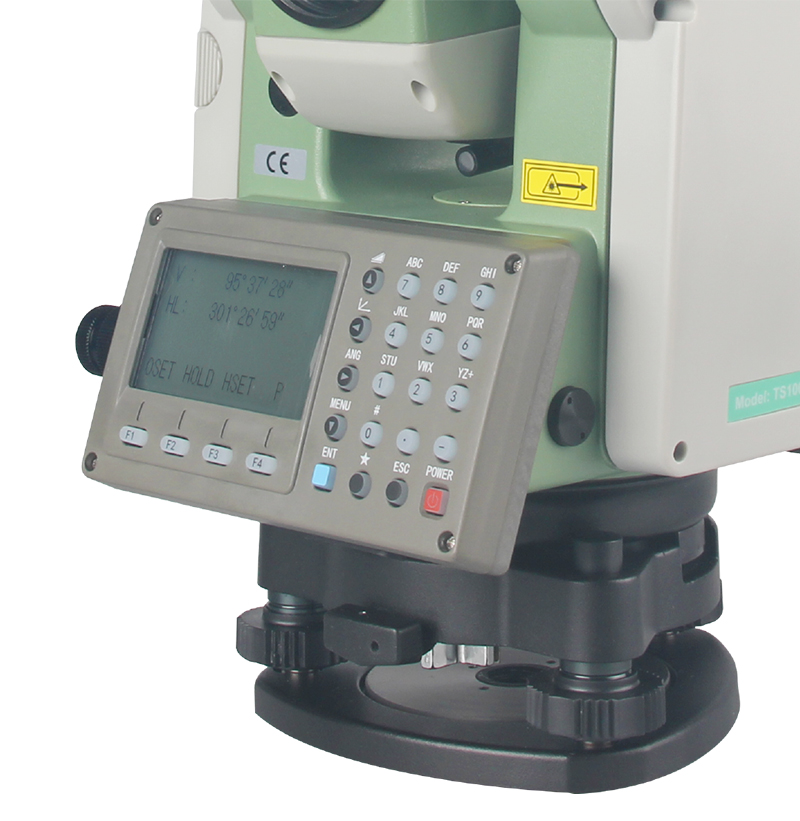

Easy-to-Use Design

The dual-side display and keyboard of TS1000 shows high convenience for your operation and viewing. The built-in red laser plummet allows fast instrument setup in any environment.

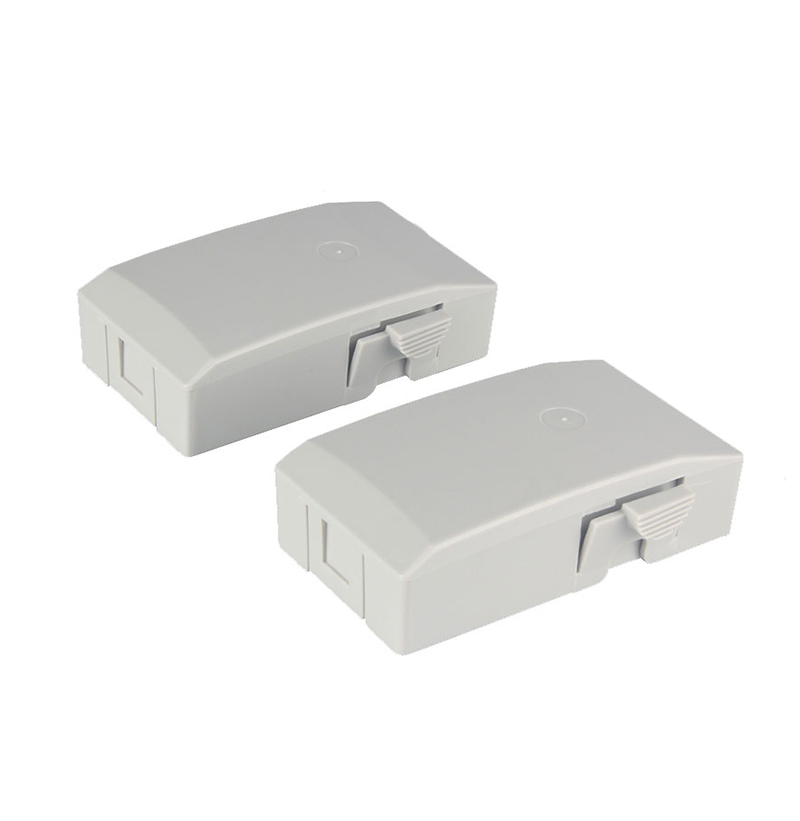

Large Battery

Using a 2.5 Ah Ni-MH battery, the TS1000 can work continuously for 6 hours for distance and angle measurements, and 20 hours for angle-only measurements. Upgrade to an optional lithium battery, the working time can be extended for a longer time.

Software & Platform

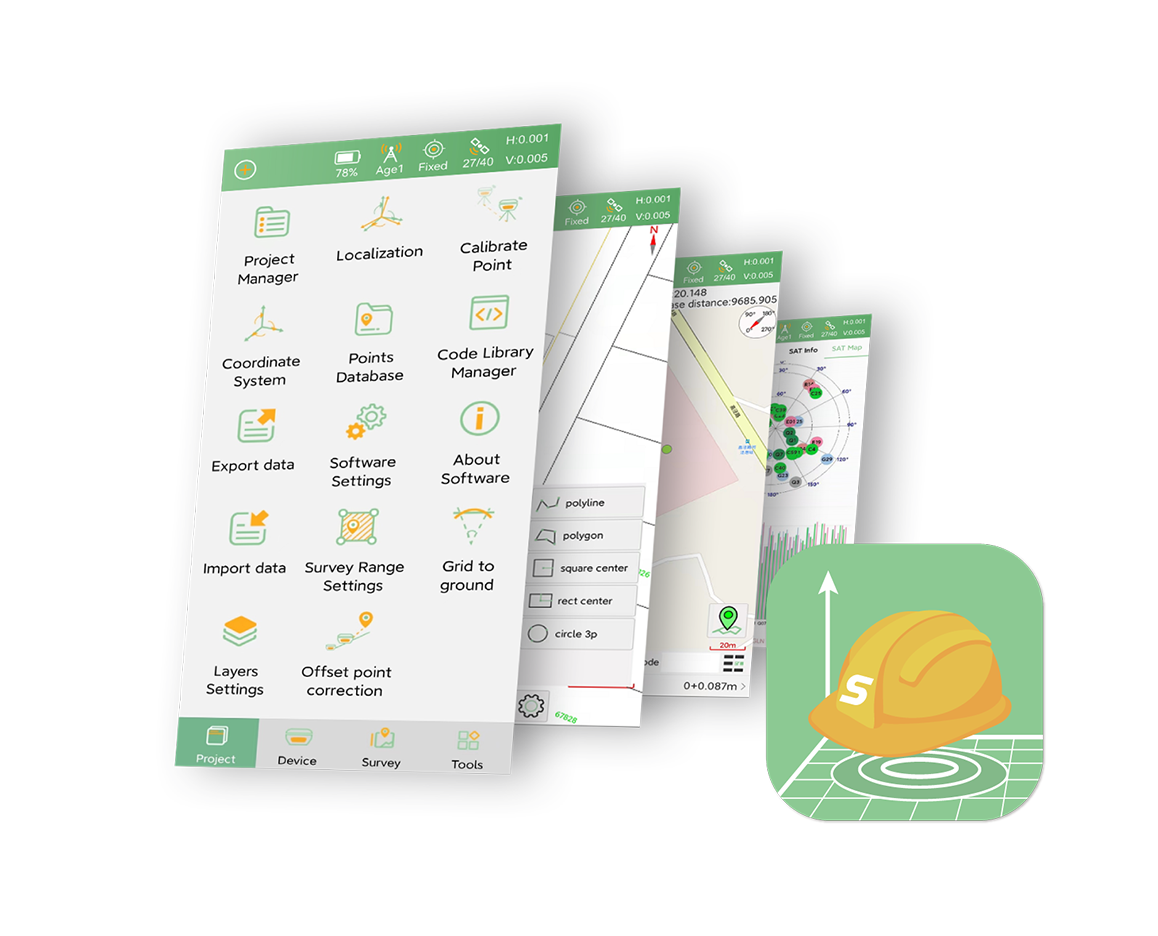

SingularPad Field Surveying Software

Industries & Applications

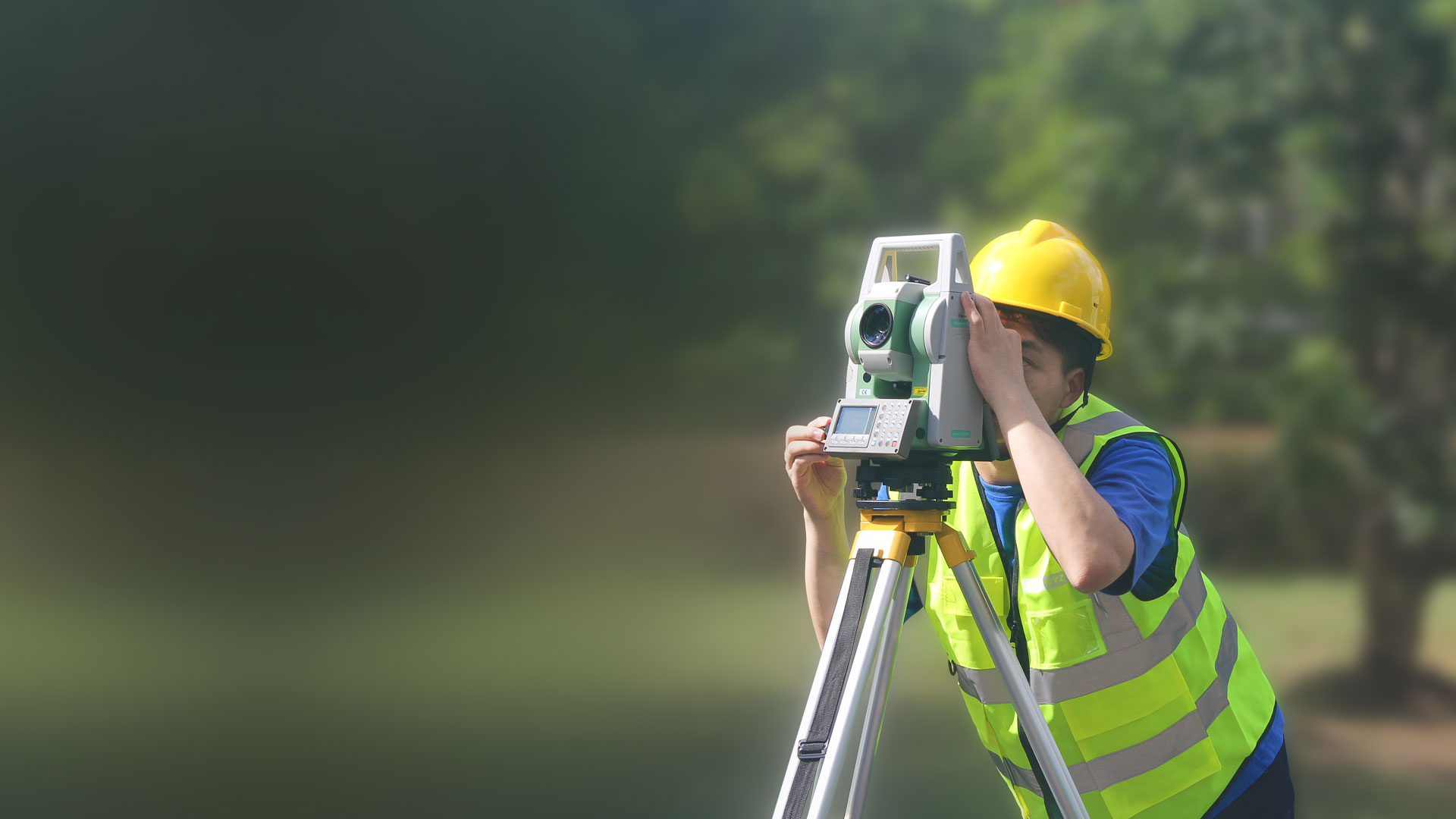

Surveying & Mapping

Specifications

Resources

GENERAL

Display

Dual side, 192 × 128 pixel

Keyboard

Alphanumerical keyboard, 24 keys

Size

190 × 210 × 350 mm

Weight

6.5 kg

Waterproof & dustproof

IP54

Plummet

Red laser, 1.5mm accuracy

MEASUREMENT

Distance Range

- Non-prism: 1000 m
- Single prism: 7500 m

Distance Accuracy

- Non-prism: 5 mm+3 ppm
- Single prism: 2 mm+2 ppm

Angle Measurement Time

0.1 s

Angle Accuracy

2" (0.6 mgon)

Telescope Magnification

30x
