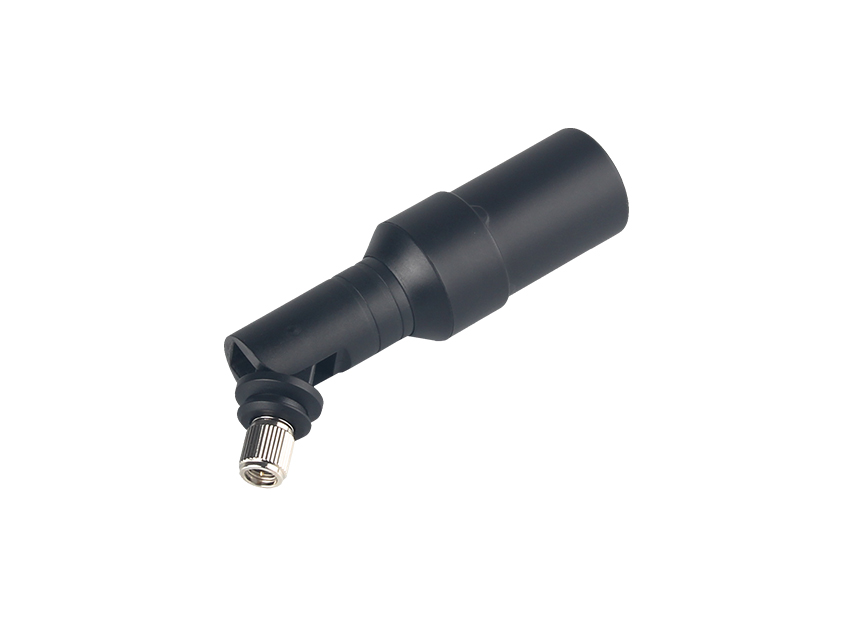

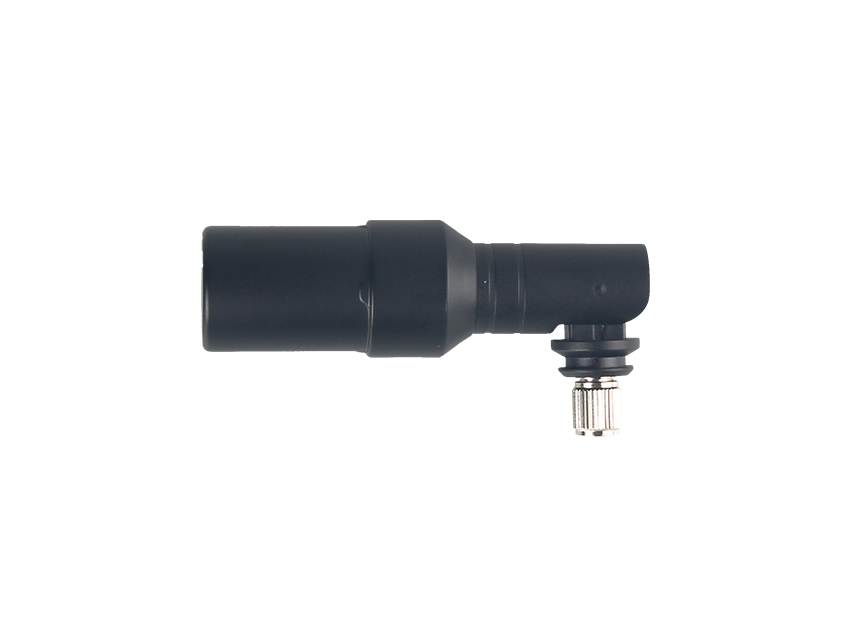

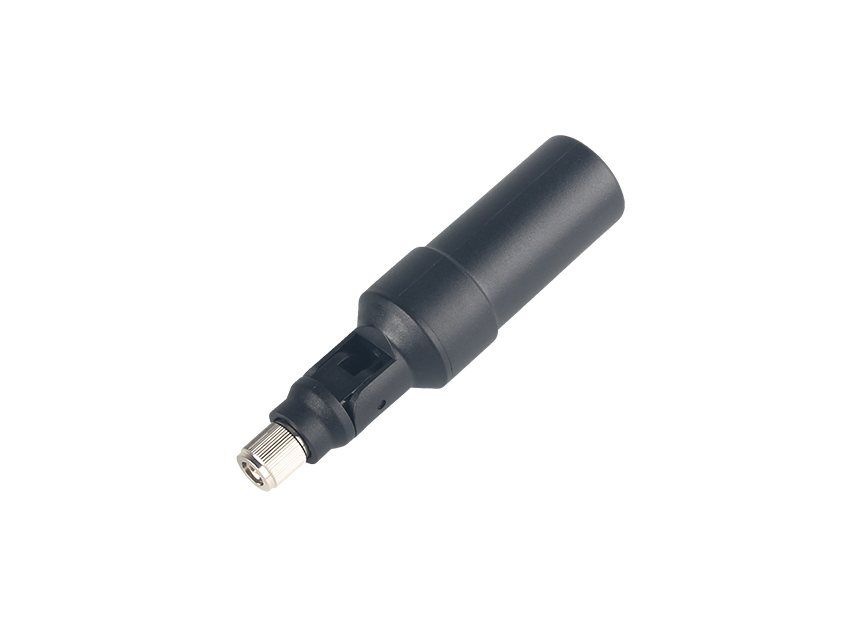

SA180 HELIX
GNSS ANTENNA
Designed for handheld devices & unmanned system
Become a Dealer
Home Products SA180 HELIX
GNSS ANTENNA
Small & Flexible
The rotatable design allows SA180 to change different angles when it is fixed on the platform, delivering greater flexibility. Featuring ultra-small size and light weight, the SA180 can be widely used in various applications.
Multi-Constellation
Capable of tracking GPS, GLONASS, BeiDou, Galileo and SBAS, the SA180 provides stable satellite signals for your use.
Anti-Interference
The low-noise amplifier shows excellent out-of-band suppression performance, which can suppress useless electromagnetic wave signals and prevent the receiver from being interfered by other wireless communication systems.
Small & Flexible
Multi-Constellation
Anti-Interference
Industries & Applications

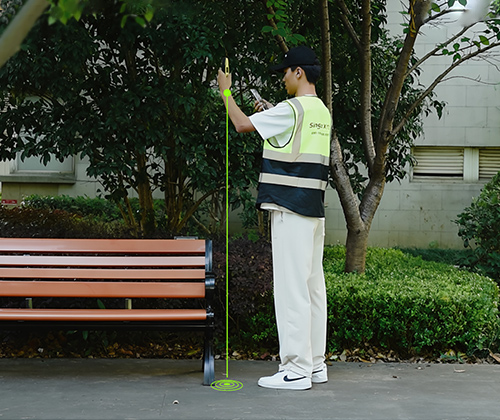

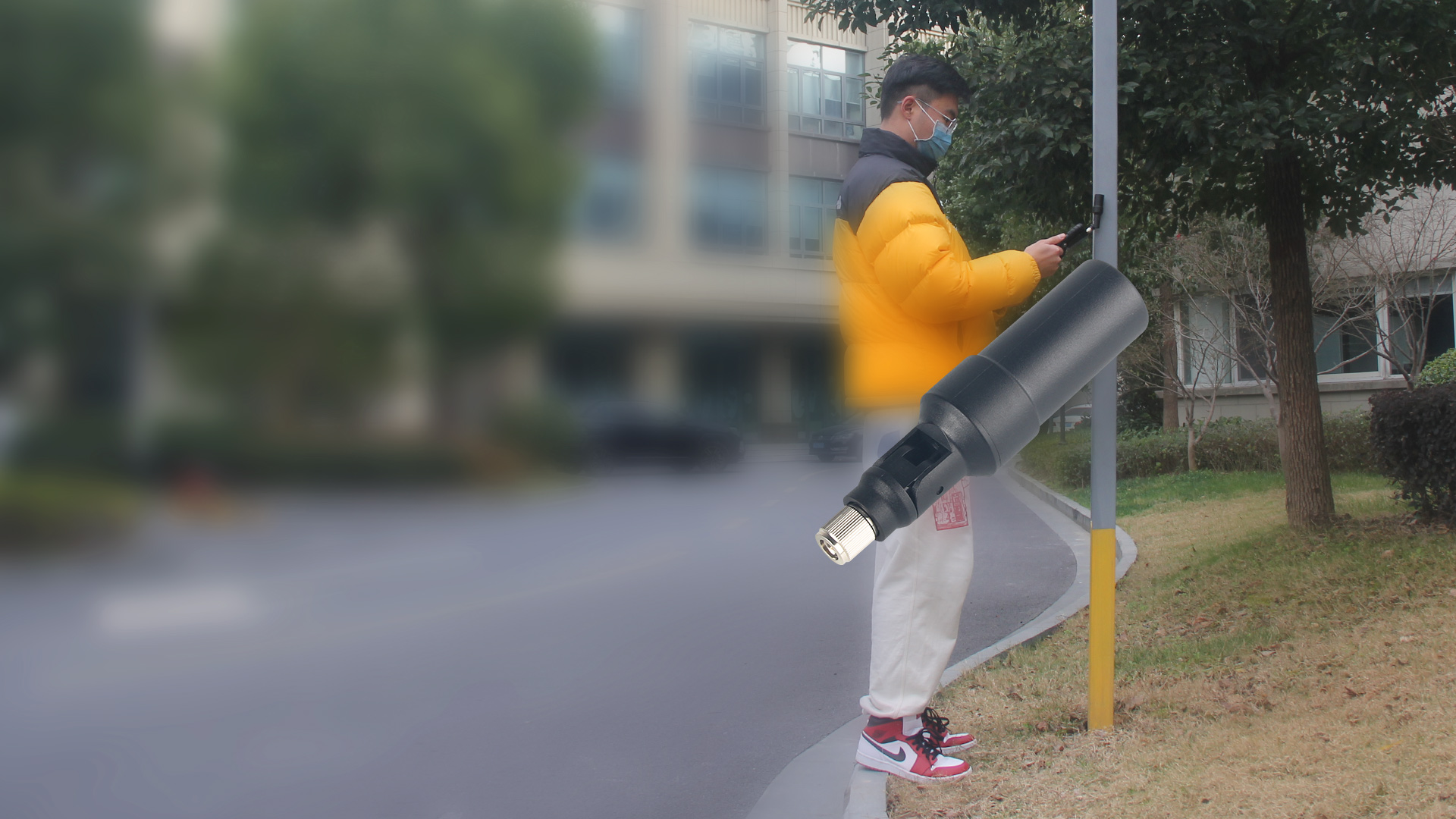

GIS
Specifications
Resources
SATELLITES TRACKING
BDS
B1, B2, B3
GPS
L1, L2
GLONASS
G1, G2
Galileo
E1, E5a, E5b
LNA PERFORMANCE
Impedance
50 Ohm
Gain at Zenith
4dBi
Phase Center Accuracy
±2mm
Noise Figure
≤2dB
LNA Gain
36±2dB
SA-series GNSS Antennas
pdf
2025.06.03
1.39 MB
Download
