S20
GNSS RECEIVER

Precise Positioning

Equipped with a high-precision GNSS engine, the S20 offers full-constellation tracking and versatile work modes. When without base stations, it attains 15cm pass-to-pass accuracy in single-point smooth mode, 20cm accuracy in HAS-PPP mode, and 0.6m accuracy in SBAS mode. In RTK mode, it delivers centimeter-level accuracy for precision navigation.

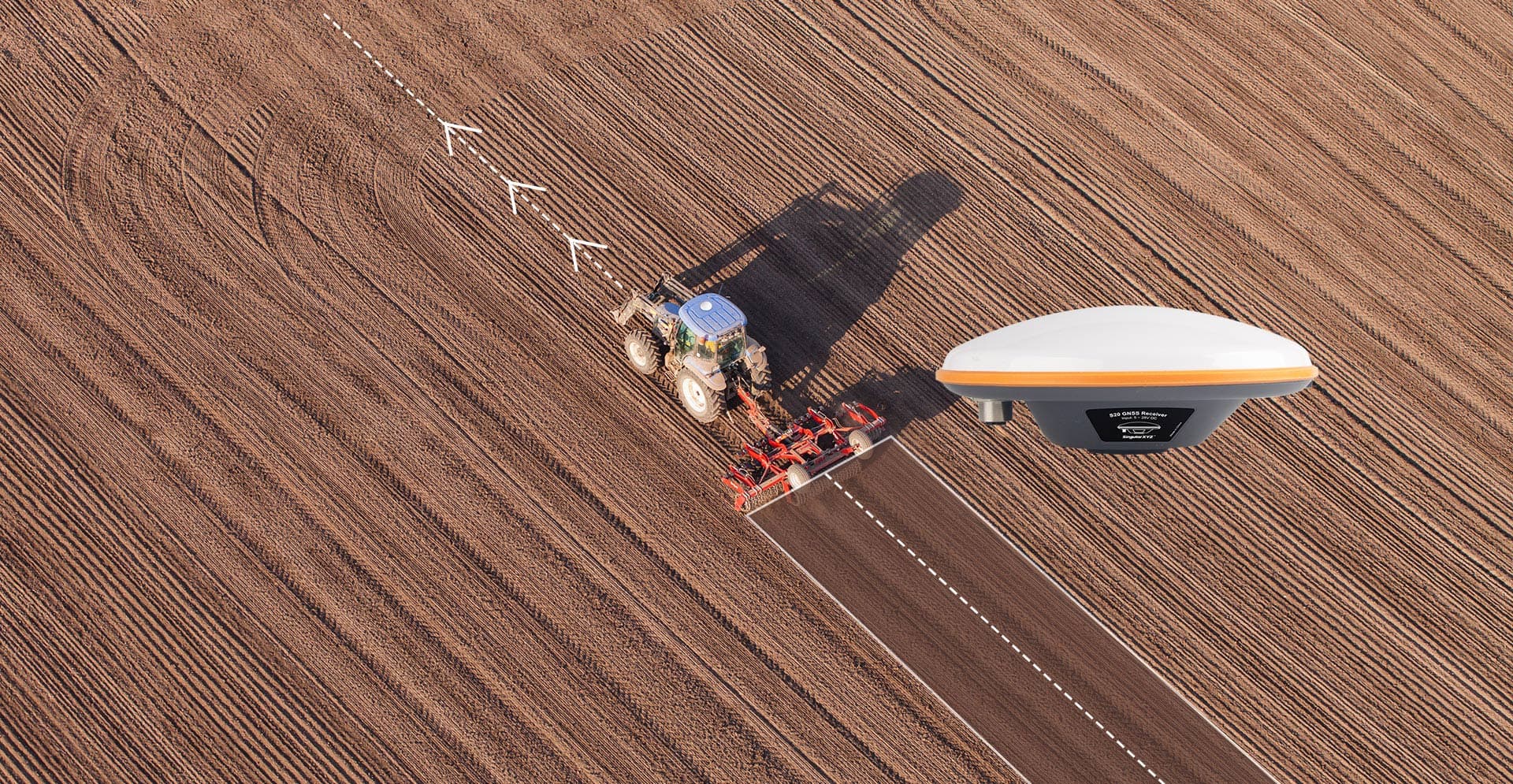

Vehicle Navigation

Designed to be vibration-proof and easy-to-install, it can be easily secured on your vehicle. With precision positioning capability, the S20 provides reliable navigation for your vehicle navigation systems.

All-in-One Design

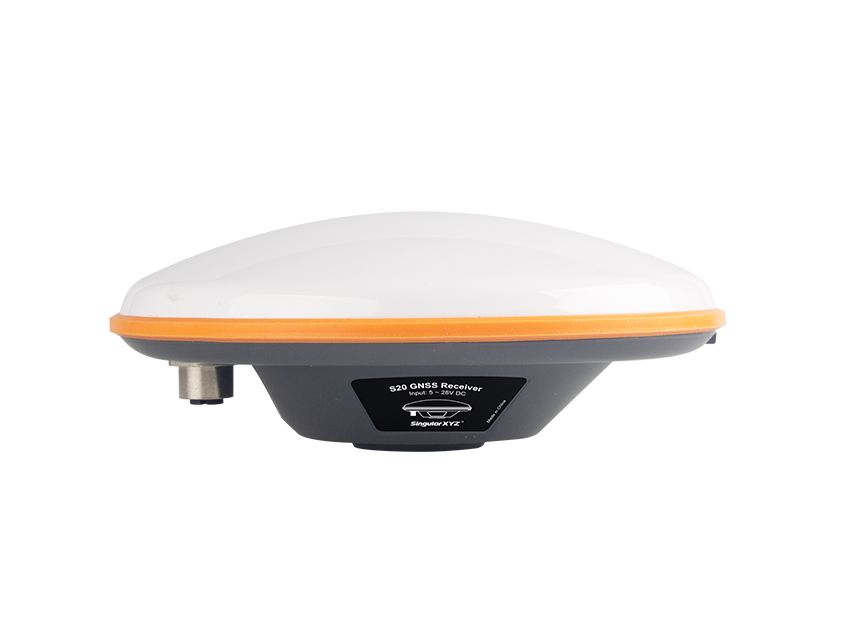

The S20 receiver integrates the GNSS antenna and GNSS module together, largely streamlining the system components and installation. By simply installing the S20 on the top of vehicles, users can easily obtain accurate positioning, which is specially designed for precision agriculture and vehicle navigation.

Precise Positioning

Vehicle Navigation

All-in-One Design

High Compatibility

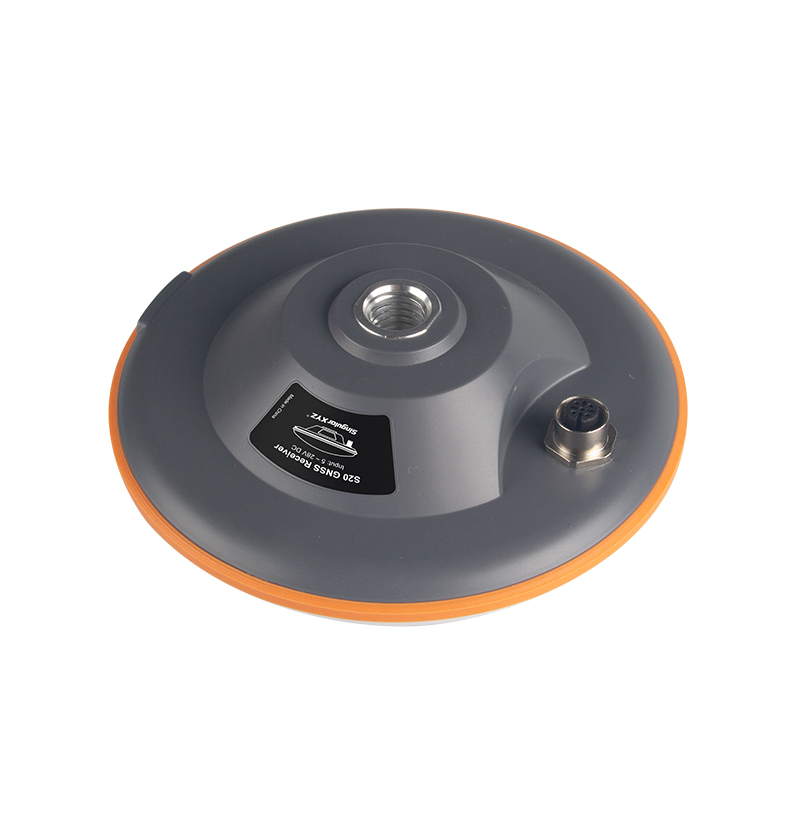

The S20 boasts broad compatibility with various tractor and vehicle models, requiring no specific vehicle prerequisites. Featuring a standard DB9 serial port and NMEA-0183 message output, it facilitates seamless integration into navigation system development, ensuring high adaptability and ease of use.

Rugged Housing

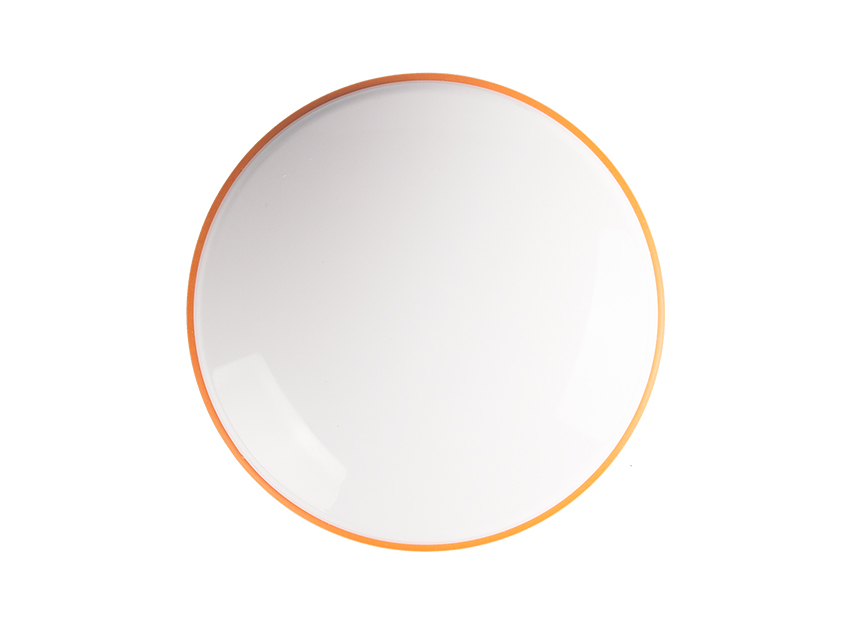

Taking into account the working environments of users, the S20 is IP67 rated for all-weather field applications. Designed to be vibration-proof and easy-to-install, it can be easily secured on your vehicle systems.

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

SBAS

WAAS, EGNOS, MSAS, GAGAN, SDCM

PPP

Galileo HAS, BDS B2b

GENERAL

Size

Φ150 mm × 58.4 mm

Weight

424g

Interface

- DC2.1 female for power supply
- DB9 female for data transmission

Waterproof & Dustproof

IP67

Data Output

NMEA-0183
