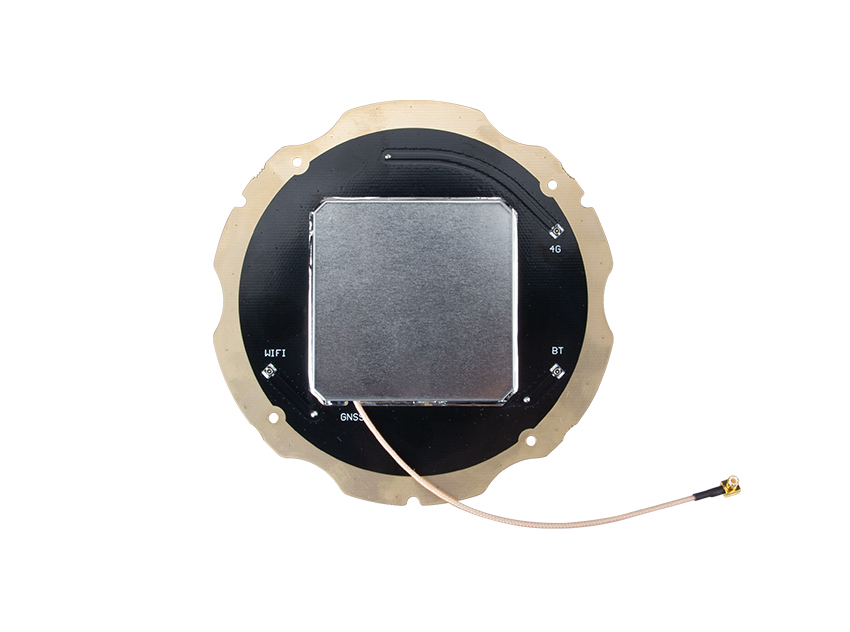

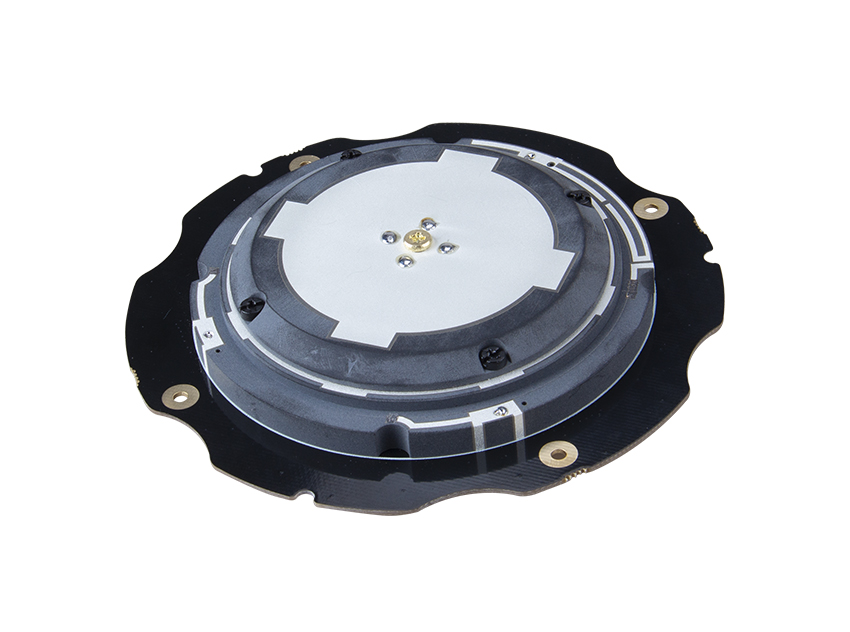

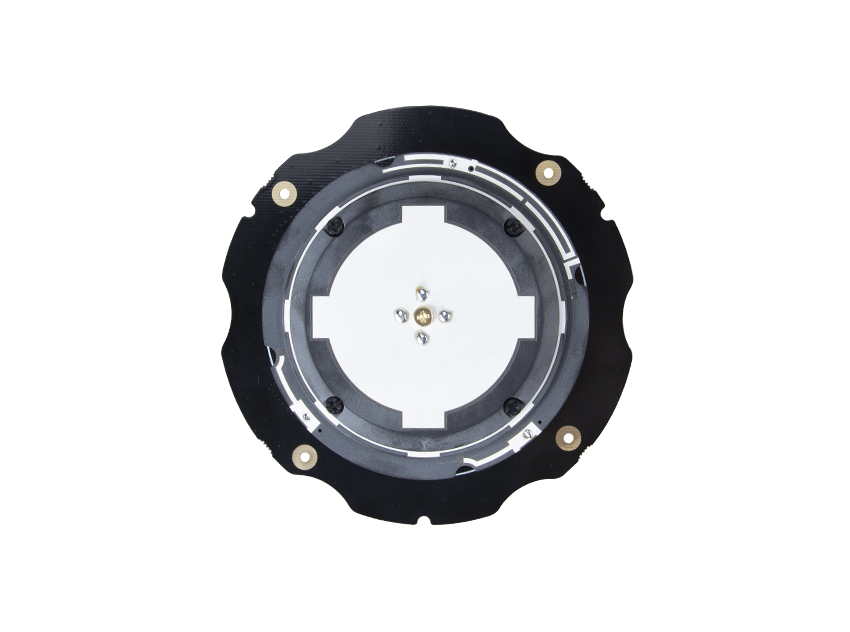

SA410 FOUR-IN-ONE
GNSS ANTENNA
GNSS, Wi-Fi, BT & 4G for Your Integrations
Become a Dealer
Home Products SA410 FOUR-IN-ONE
GNSS ANTENNA
Full-Constellation Receiving
As an GNSS antenna, AT410 is capable of tracking all running and planned satellite signals, including GPS, GLONASS, BeiDou, BeiDou Global, Galileo, QZSS, IRNSS, SBAS and L-Band, meeting your various GNSS requirements.
Four-in-One Design
Especially designed for integration, the SA410 can track GNSS, Bluetooth, Wi-Fi and 4G with only one antenna, which can greatly simplify the development of positioning-related applications for integrators.
LNA Performance
Featuring low noise amplifier and high gain, the AT410 can provide reliable and stable signal quality, even for low elevation angle signal tracking.
Full-Constellation
Four-in-One Design
LNA Performance
Industries & Applications

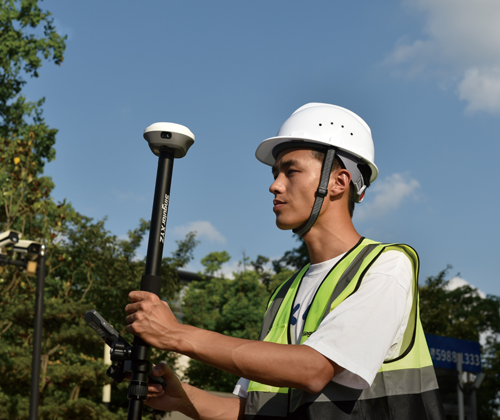

Land Surveying
Specifications
Resources
LNA PERFORMANCE
Gain at Zenith
-GNSS: 5.5dBi
-BT/WIFI: 1dBi
-4G: 0.5dBi
Phase Center Accuracy
±2mm
LNA Gain
40dB±2dB
Noise Figure
≤2dB
Impedance
50 Ohm
SATELLITES TRACKING
BDS
B1, B2, B3 B1C, B2a
GPS
L1, L2, L5
GLONASS
G1, G2
Galileo
E1, E5a, E5b, AltBoC
QZSS
L1, L2, L5
SA-series GNSS Antennas
pdf
2025.06.03
1.39 MB
Download
