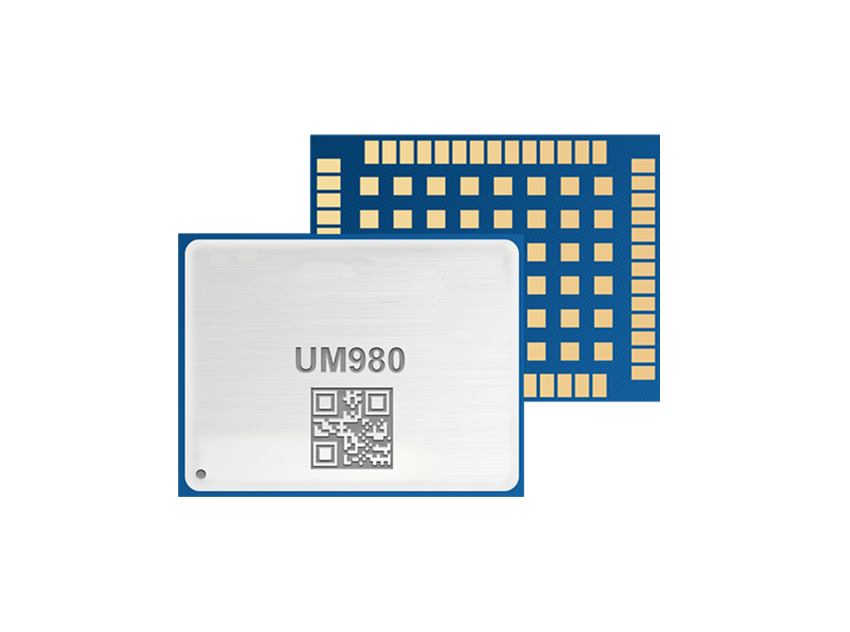

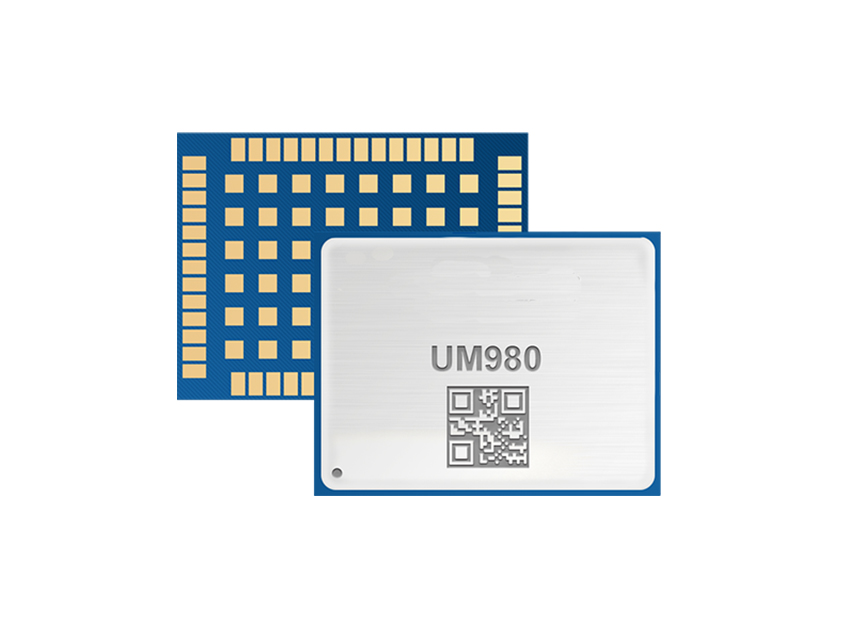

UM980
GNSS MODULE
For Your Versatile GNSS Integration
Become a Dealer
Home Products UM980
GNSS MODULE
Full-Constellation Tracking
As a full-constellation GNSS module, UM980 tracks GPS, BDS, GLONASS Galileo and QZSS for stable satellite signals. Embedded multi-frequency anti-jamming technology and enhanced RTK engine solution significantly improve RTK performance in complex environments.
Easy Integration
Measuring only 17x22x2.6mm, with a 54-pin surface mount design, the UM980 can be easily embedded into most devices. In addition, the abundant interfaces of UART, I2C and SPI, industry-standard data formats & protocols provides huge possibilities for user integrations.
Wide Applications
Designed as a functional module provide high accuracy positioning information for horizontal and vertical applications, such as land surveying, GIS, monitoring, UAV, USV, robotics, personnel positioning, machine control, autonomous vehicles, precision agriculture, etc.
Full-Constellation Tracking
Easy Integration
Wide Applications
Industries & Applications
Land Surveying
Unmanned Systems
Precision Agriculture
Specifications
Resources
SATELLITES TRACKING
BDS
B1I, B2I, B3I, B1C, B2a, B2b
GPS
L1C/A, L1C, L2C, L2P(Y), L5
GLONASS
G1, G2, G3
Galileo
E1, E5a, E5b, E6
QZSS
L1C, L2, L5, L1C/A
GENERAL
Dimensions
22 × 17 × 2.6 mm
Hardware interface
54 pin LGA
Weight
1.88 g ±0.03 g
Power consumption
480 Mw (typical)
Voltage
+3.0 V~+3.6 V DC
UM980 GNSS Module
pdf
2025.06.05
1.5 MB
Download
