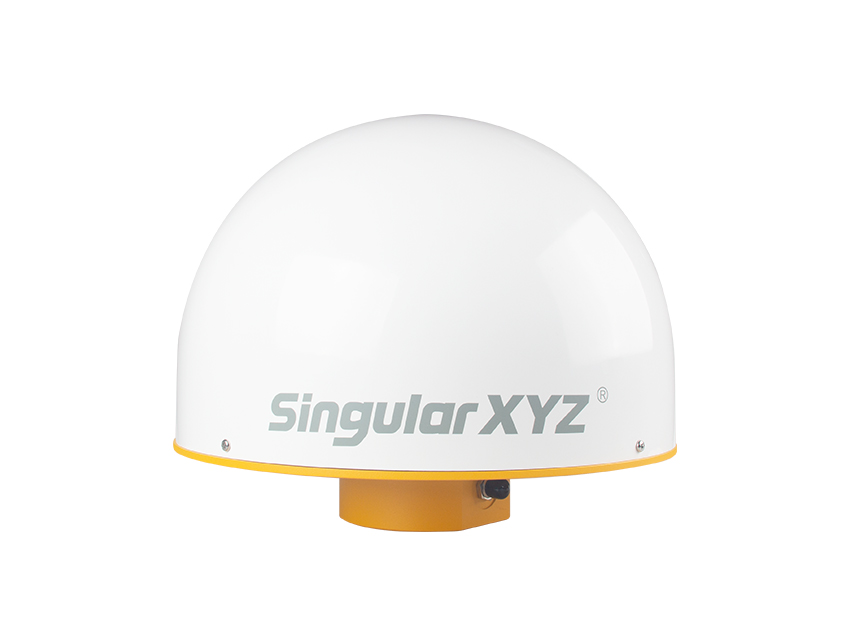

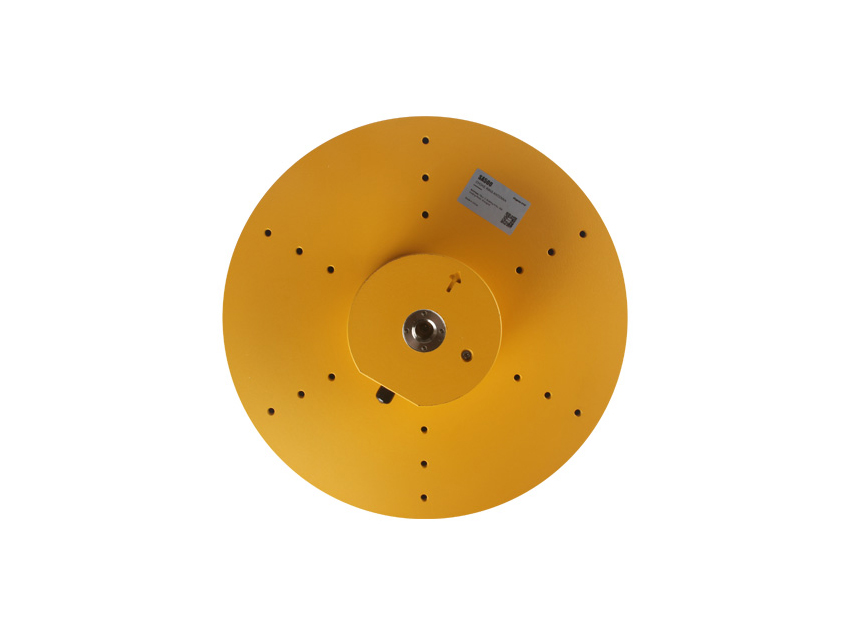

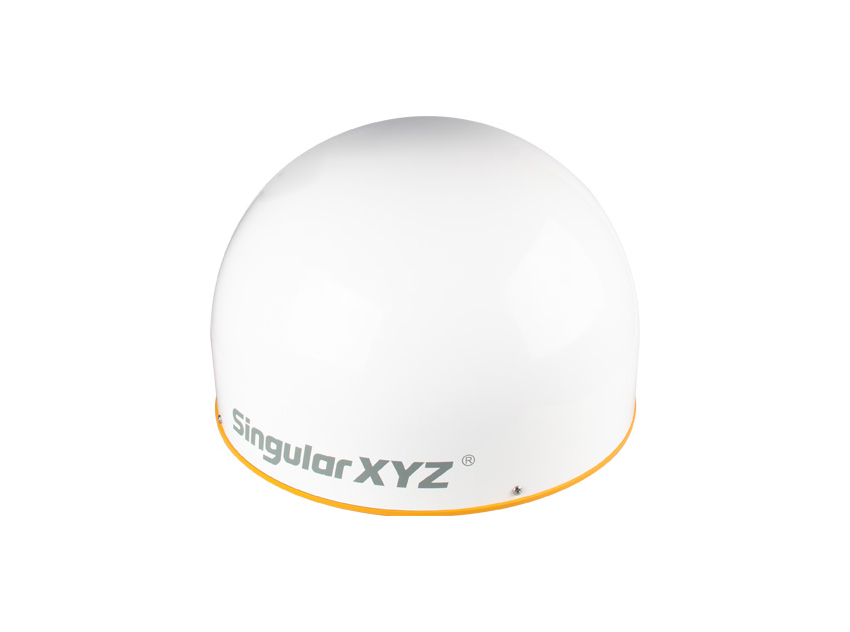

SA550 3D CHOKE RING
GNSS ANTENNA
Designed For Monitoring & CORS Network
Become a Dealer
Home Products SA550 3D CHOKE RING
GNSS ANTENNA
Full-Constellation & High Gain
Capable of tracking GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS, plus 7dBi high gain ensures the strong signals tracking capability, the SA550 provides stable satellite signals for your use. High gain and anti-interference design guarantees the signal quality.
Strong Anti-Interference Performance
Coupled with 3D choke ring design that can greatly reduce signal interference, SA550 is especially designed for reference stations such as CORS and monitoring.
Ruggedized for Long Lasting Durability
With IP67 waterproof & dustproof protection level, the SA550 can constantly provide stable GNSS raw data 24/7 in all weather.
High Gain
Anti-Interference
More Ruggedized
Industries & Applications
CORS
Monitoring
Specifications
Resources
SATELLITES TRACKING
BDS
B1, B2, B3
GPS
L1, L2, L5
GLONASS
G1, G2
Galileo
E1, E5a, E5b, AltBoc
QZSS
L1, L2C, L5
LNA PERFORMANCE
Gain at Zenith
7dBi
Phase Center Accuracy
±1mm
LNA Gain
50dB±2dB
Noise Figure
≤2dB
Impedance
50 Ohm
SA-series GNSS Antennas
pdf
2025.06.03
1.39 MB
Download
