SAGRO150
AUTOMATED STEERING SYSTEM

Higher Yield, Less Cost

With SAgro150 auto-steering system, farmers do not need to concentrate on driving and can work continuously for longer, which means less fatigue and higher efficiency. The 2.5 cm accuracy also maximizes land use and yield while saving resources such as water and fertilizer.

±2.5cm Auto-Steering

Embedded with high-precision full-constellation GNSS module, SAgro150 system provides ±2.5cm auto-steering accuracy, improving your farming efficiency and quality while freeing your hands.

Get Started Easily

Upgraded with single-antenna and dual-gyroscope design, users no longer need to assemble and install the antenna crossbar and angle sensor. SAgro150 system largely reduces the installation difficulty while enhancing the compatibility with different tractors.

Higher Yield, Less Cost

±2.5cm Auto-Steering

Get Started Easily

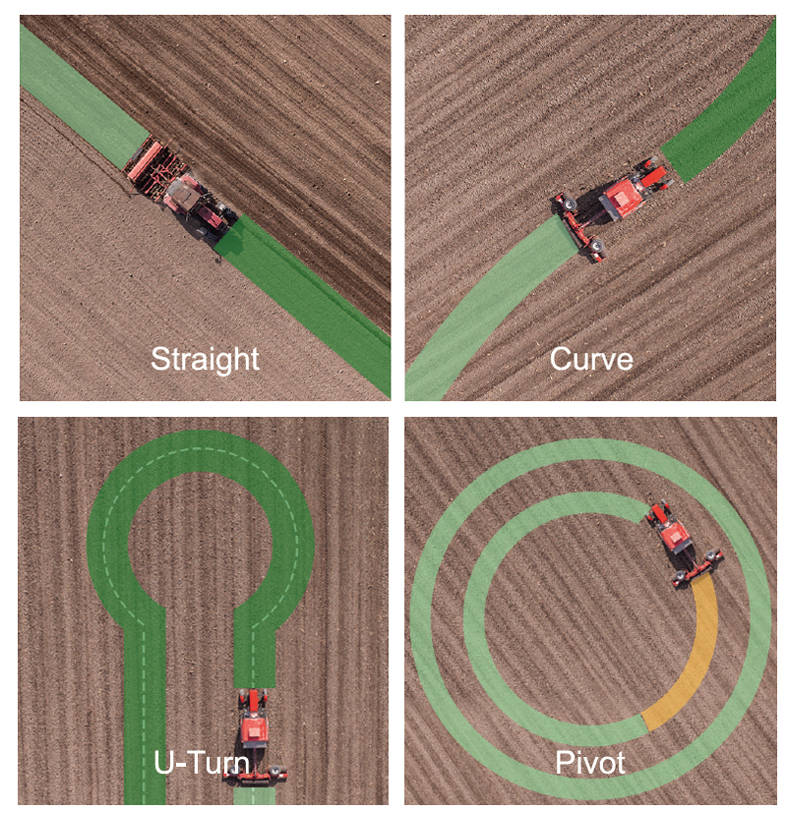

Abundant Work Modes

For different farm shape, terrain types and working tasks, SAgro150 software supports abundant work modes for your convenience, such as straight line, curve, U-turn, pivot, etc.

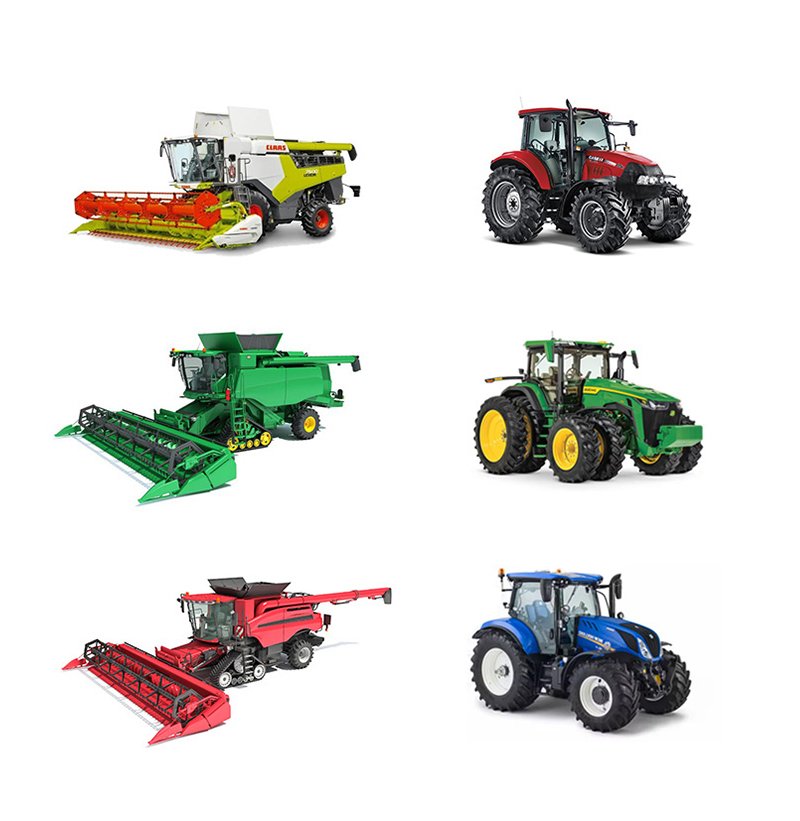

High Compatibility

Offering various spline sleeves for different tractor steering columns and the dual-gyroscope mode for different tractor types, SAgro150 system shows high compatibility with mainstream tractors in the market.

Multiple Task Types

From spring to winter, from harrowing to sowing, spraying, and harvesting, farmers can set different implement types and working modes in SAgro150 to meet your farming needs throughout the year.

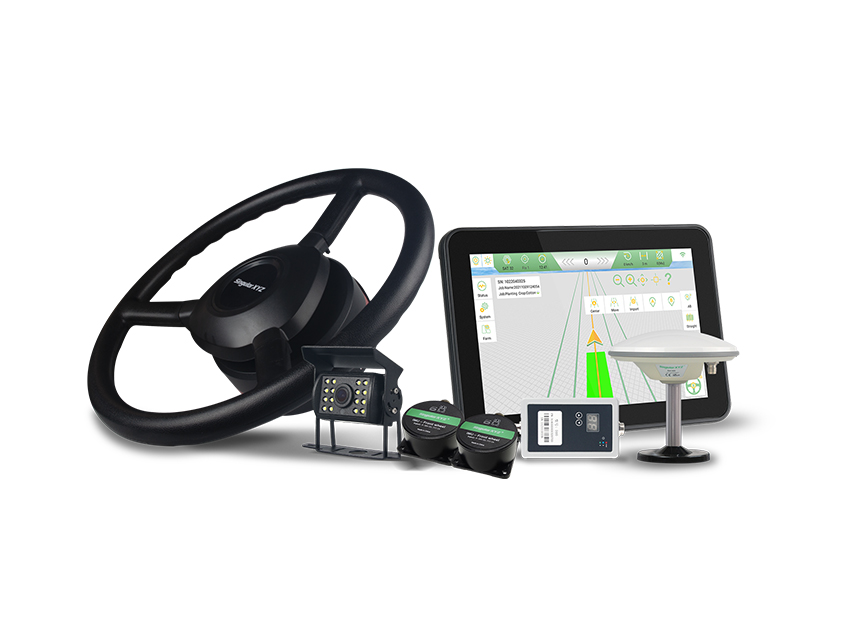

System Components

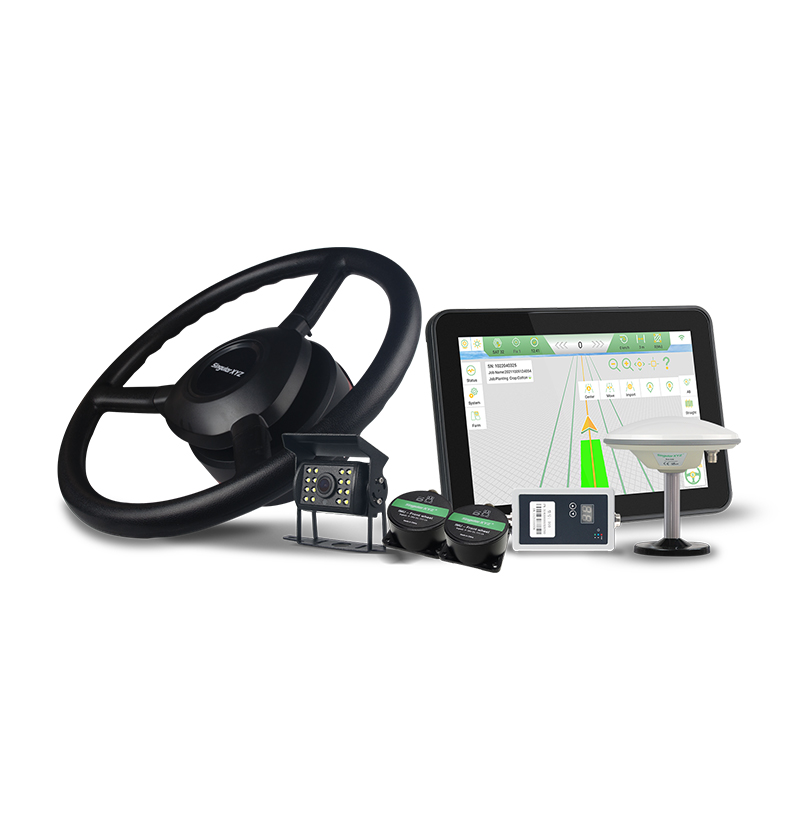

With T10 GNSS tablet for powerful calculation and operation, SA100 antenna for full-constellation signal receiving, high-torque SEM2 electric motor for sensitive steering control, SAgro150 system can provide you with stable and reliable farming experience.

Smart Farm Management

Smart farm management of SAgro150 system makes your farming more clear and less human errors. Farms and plots management is suitable for large farm owner. Real-time work records can clarify work progress and prevent duplication of work.

Software & Platform

PrecisionAG

PrecisionAG is the autosteer software of SingularXYZ SAgro-Series systems, helping users from system calibration to field auto-steering.

Industries & Applications

Precision Agricuture

Specifications

Resources

T10 PLUS GNSS TABLET

Screen

10.1” touch screen, 1280×800 pixels

CPU

Quad-Core 2GHZ

Communication

4G/Bluetooth/WiFi/CAN/USB/ Serial port

Memory

2GB RAM+16GB ROM, upgradable

GNSS

GPS/BDS/GAL/GLO/QZSS

ELECTRIC MOTOR

Rated speed

100 rpm

Rated torque

9 N*M

Dimension

Φ181.5mm*60.4mm

IP Rating

IP67
