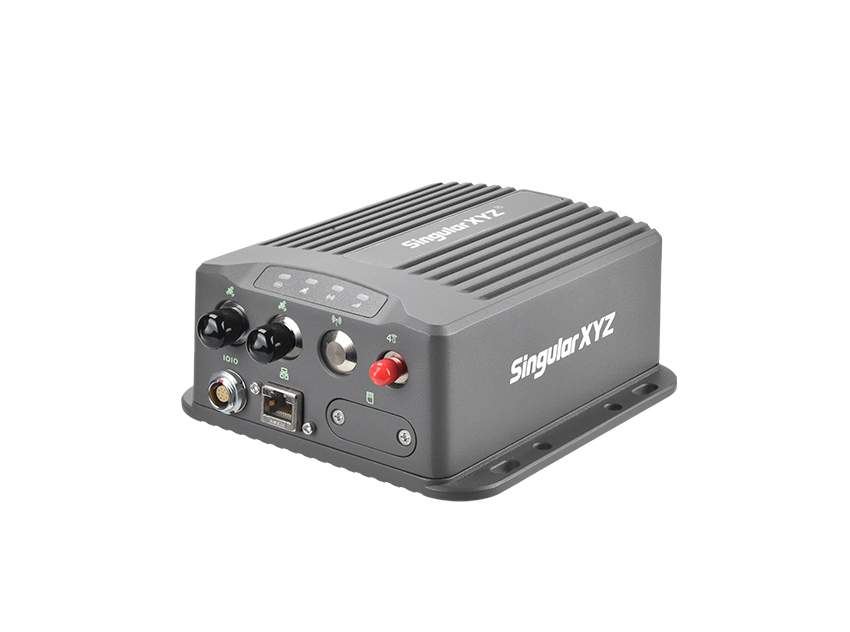

SV100 DUAL
GNSS RECEIVER

Designed For Vehicle Navigation & Machine Guidance

Become a Dealer

Home

Products

SV100 DUAL
GNSS RECEIVER

Precise Navigation

To ensure superior positioning and navigation performance, the SV100 dual is equipped with a dual-antenna GNSS engine that can both track GPS, BDS, GLONASS, Galileo & QZSS. Embedded with multi-frequency anti-jamming technology, the SV100 dual offers high quality GNSS data even in urban blocks and tree shade.

Easy Configuration

Except for the web UI accessed via Ethernet/WiFi for professional users. For vertical industry users requiring GNSS navigation data, SingularXYZ provides an android app connected via Bluetooth, offering a user-friendly & clean interface.

Dual-Antenna Design

Featuring dual-antenna design, the SV100 dual GNSS receiver can provide high precision positioning and heading information for vehicle navigation and machine guidance.

Precise Navigation

Easy Configuration

Dual-Antenna Design

Flexible Transmission

The SV100 dual GNSS receiver shows high flexibility in data transmission. Users can easily get RTK fixed solution via 4G or UHF according to the local conditions, and then output the navigation data to their vehicle systems via RS232 serial port, 4G or USB.

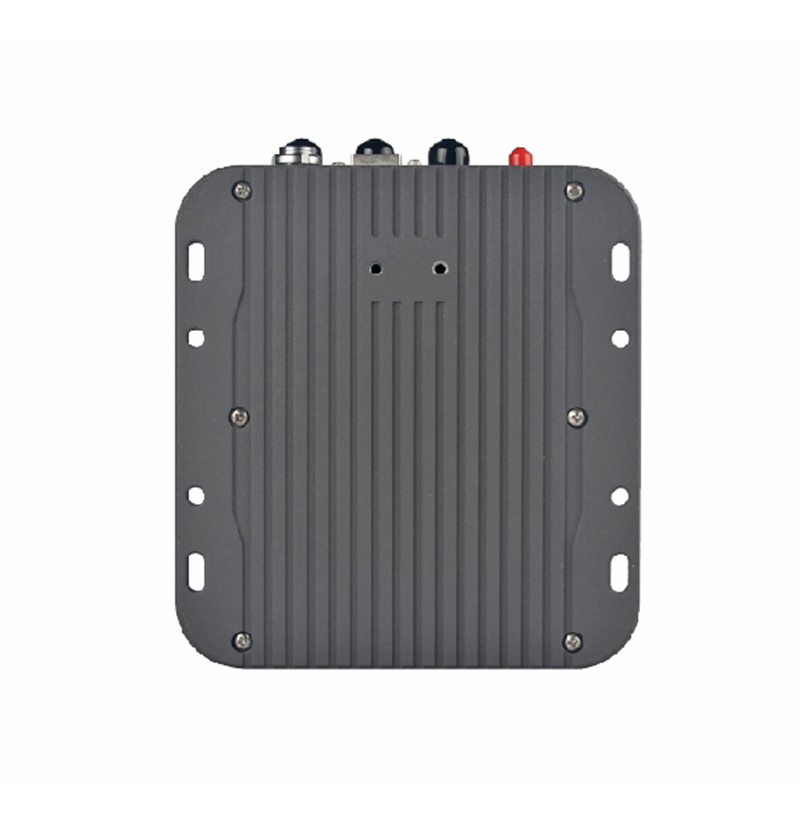

Mountable Design

With flat underside and uniformly distributed screw holes of different sizes, the SV100 dual GNSS receiver shows high compatibility with various vehicles and machines and can be easily installed.

Rugged Housing

Considering various working environments, the SV100 dual is protected with rugged housing. IP67 waterproof and dustproof design, suitable for outdoor work in all kinds of weather. Aluminum alloy housing and compact structure to avoid accidental drop damage.

Software & Platform

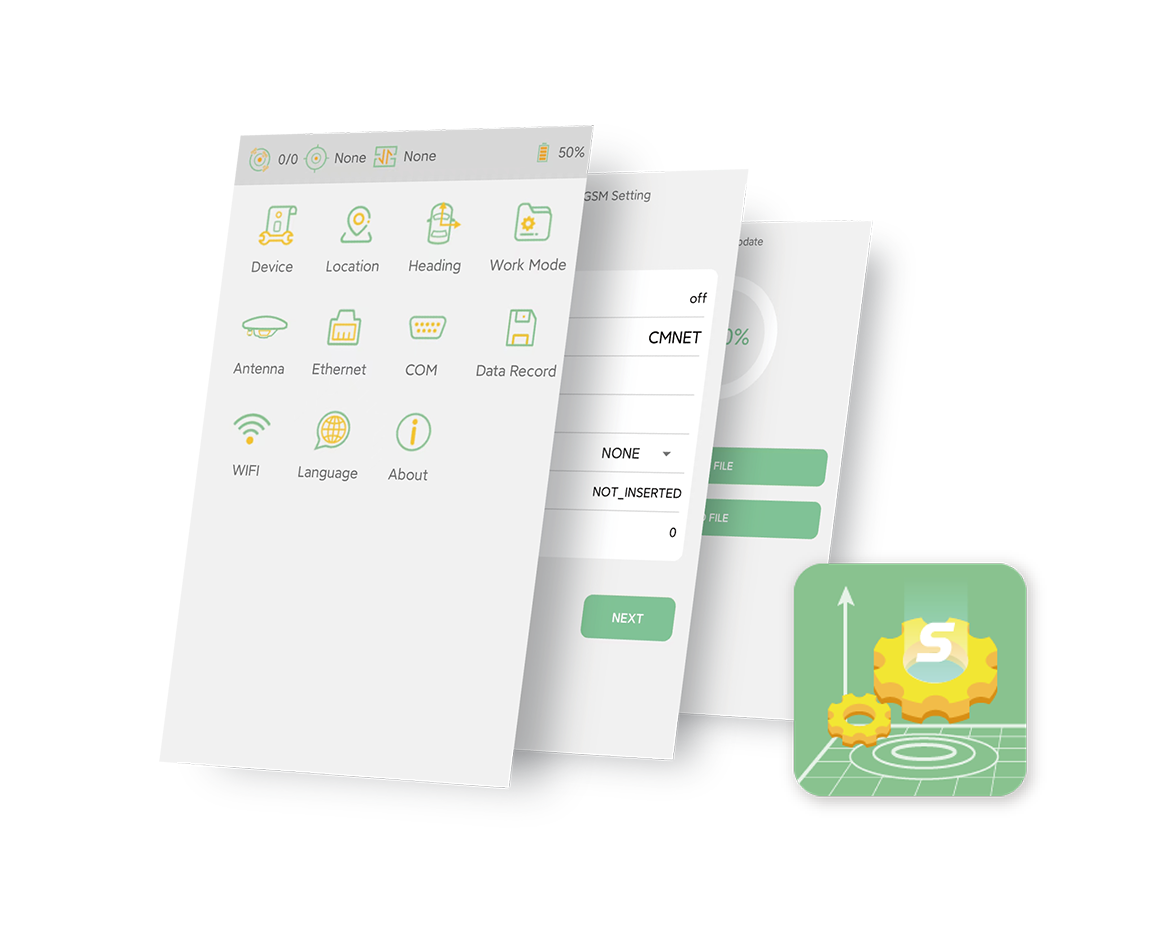

SingularNav Field Software

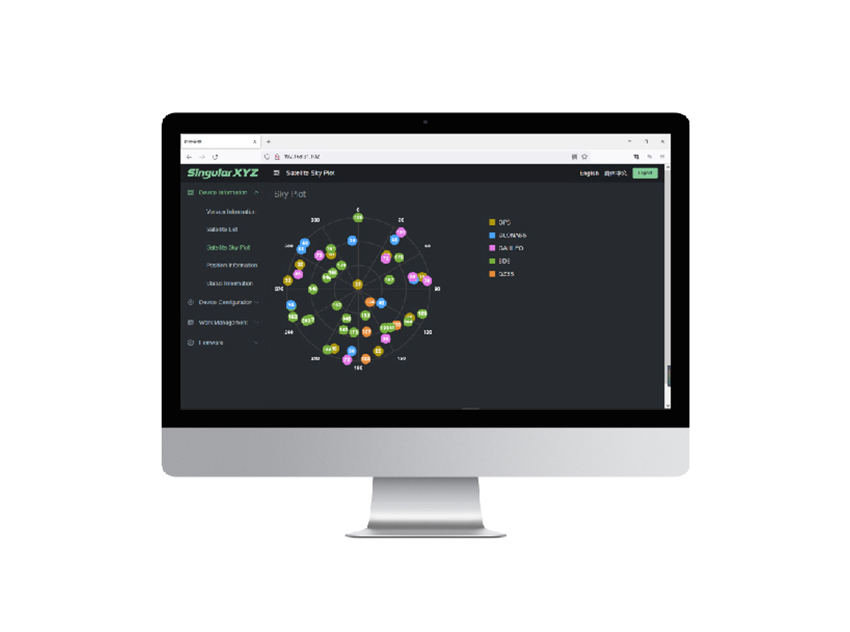

For easy field configuration via Bluetooth connection. More detailed configuration can be conducted via the built-in web page of SV100 Dual GNSS receiver.

Industries & Applications

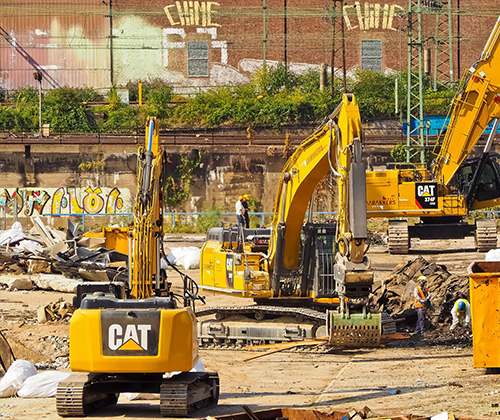

Machine Guidance

Vehicle Navigation

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

GENERAL

Linux

WebUI

Accessible via Wi-Fi

Size

162×142×65 mm, including connectors

Weight

1.05 kg without battery

Waterproof & Dustproof

IP67

COMMUNICATION

4G modem

Support

UHF modem

Optional

Bluetooth

BT4.0 dual mode

WiFi

802.11 a/b/g/n/ac

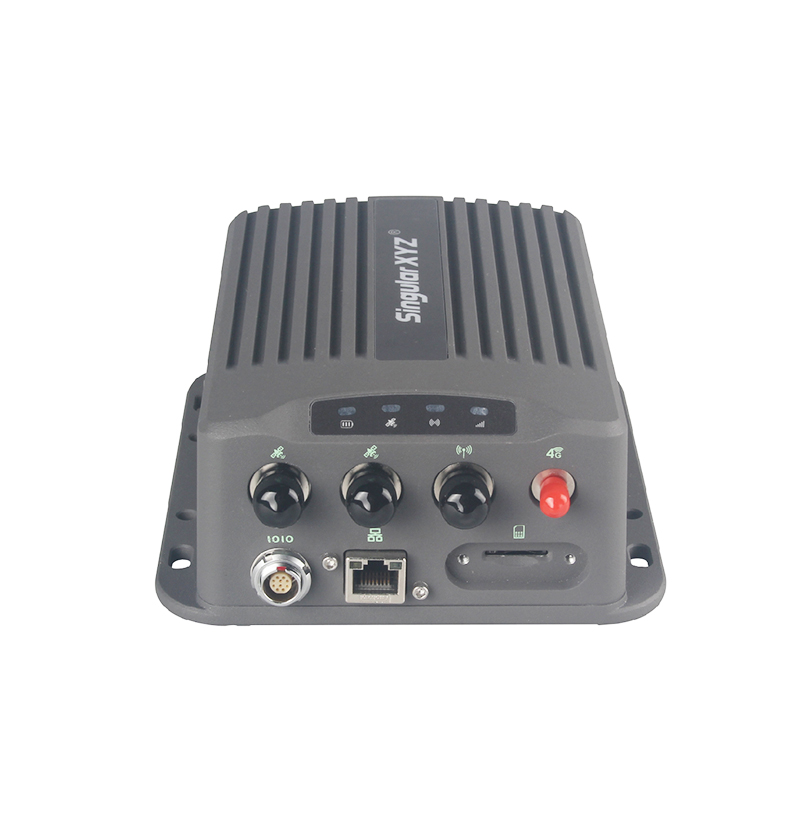

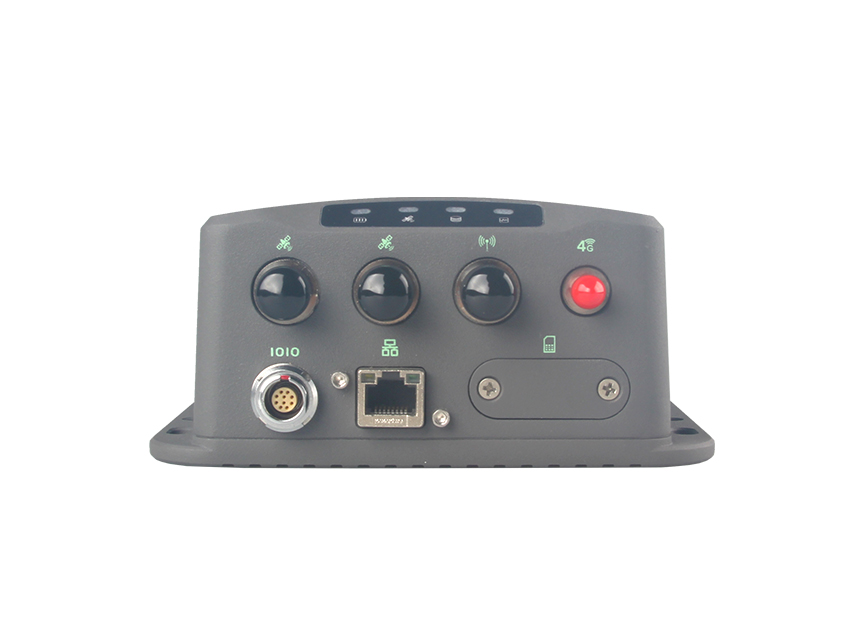

Interface

- 1 10-pin connector, including 1 RS232, 1 PPS output, 1 USB and power supply
- 1 RJ45 for Ethernet
- 2 TNC connectors for GNSS antenna
- 1 TNC connector for UHF* antenna
- 1 SMA connector for 4G antenna
- 1 SIM card slot

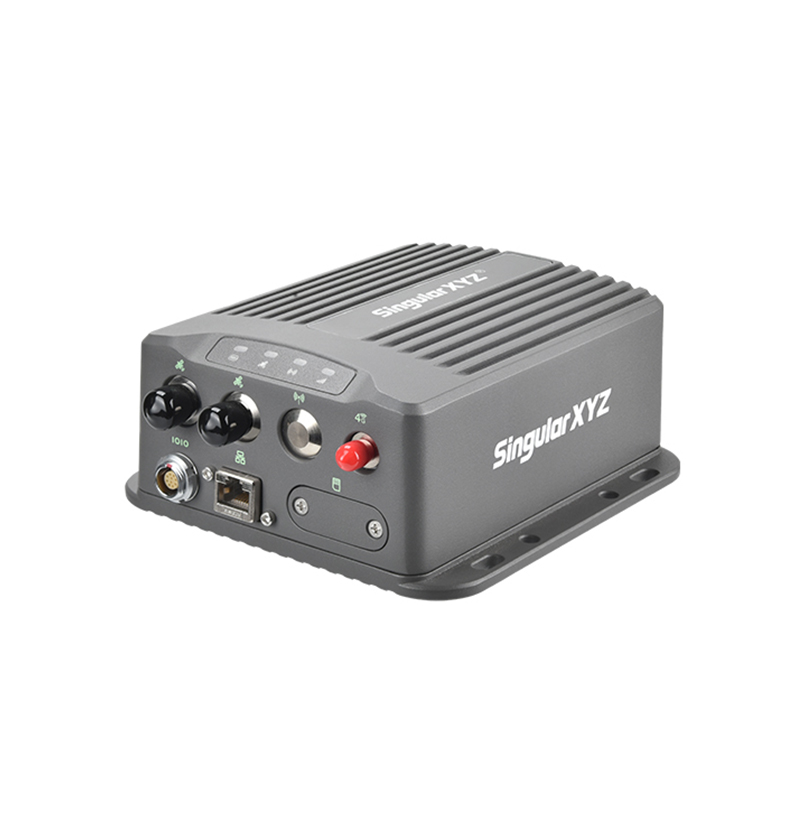

SV100 Dual GNSS Receiver
