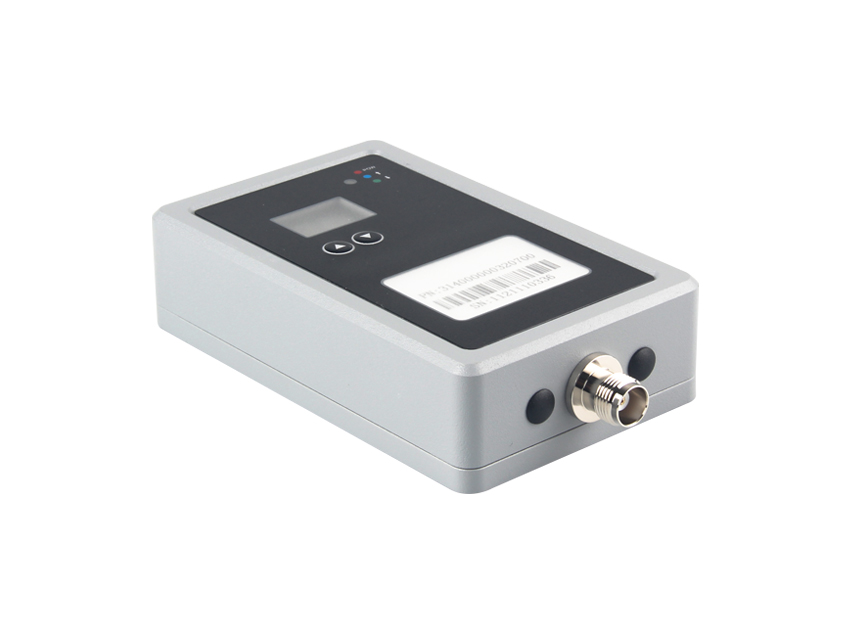

D1-L
EXTERNAL DATALINK
For Your Long Range Data Receiving
Become a Dealer
Home Products D1-L
EXTERNAL DATALINK
Superior Performance
Featuring up to 18000bps air baud rate, the D1-L is suitable for full-constellation & triple frequency GNSS correction data transmission with large amounts of data. With IP66 protection level and anti-vibration design, the D1-L is not afraid of harsh environments.
Long Working Range
Adopted with LoRa (Long Range) protocol, the ultra-long working range of D1-L external datalink greatly saves the time and cost of users.
User-friendly

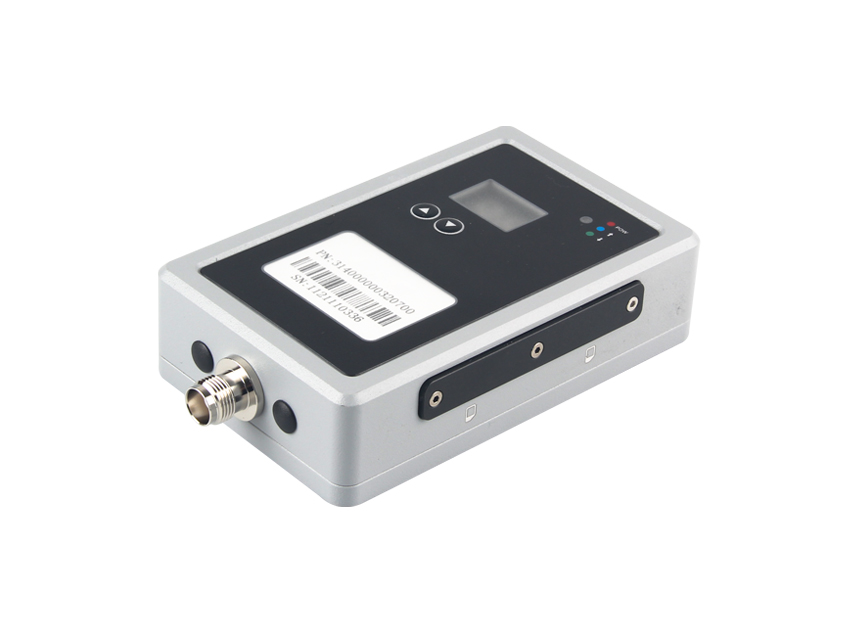

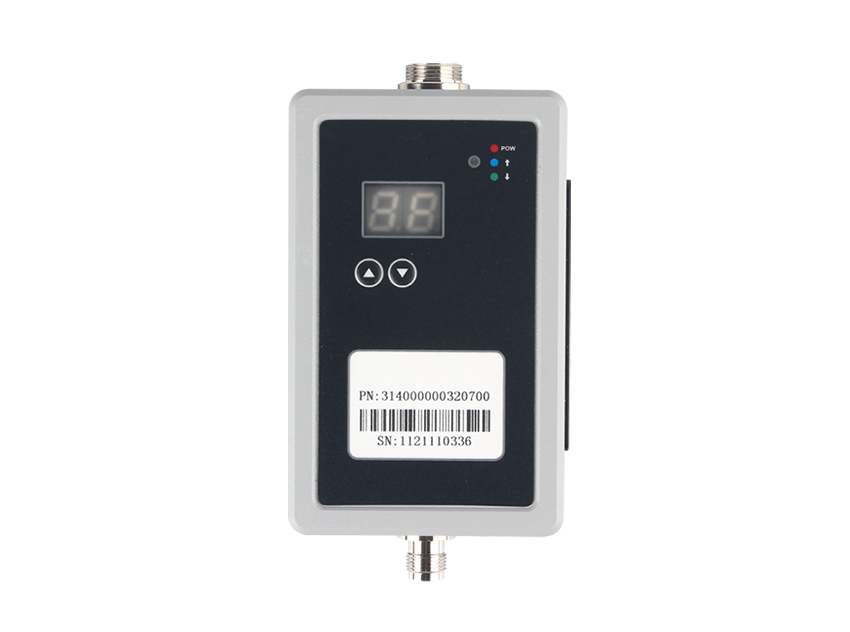

Equipped with an intuitive front panel, users can easily check the work modes from the indicators and switch the frequency channels via the buttons. Automatic turn-on when power on, with anti-reverse polarity protection, D1-L is convenient for farmers to use.
Superior Performance
Long Working Range
User-friendly
Industries & Applications

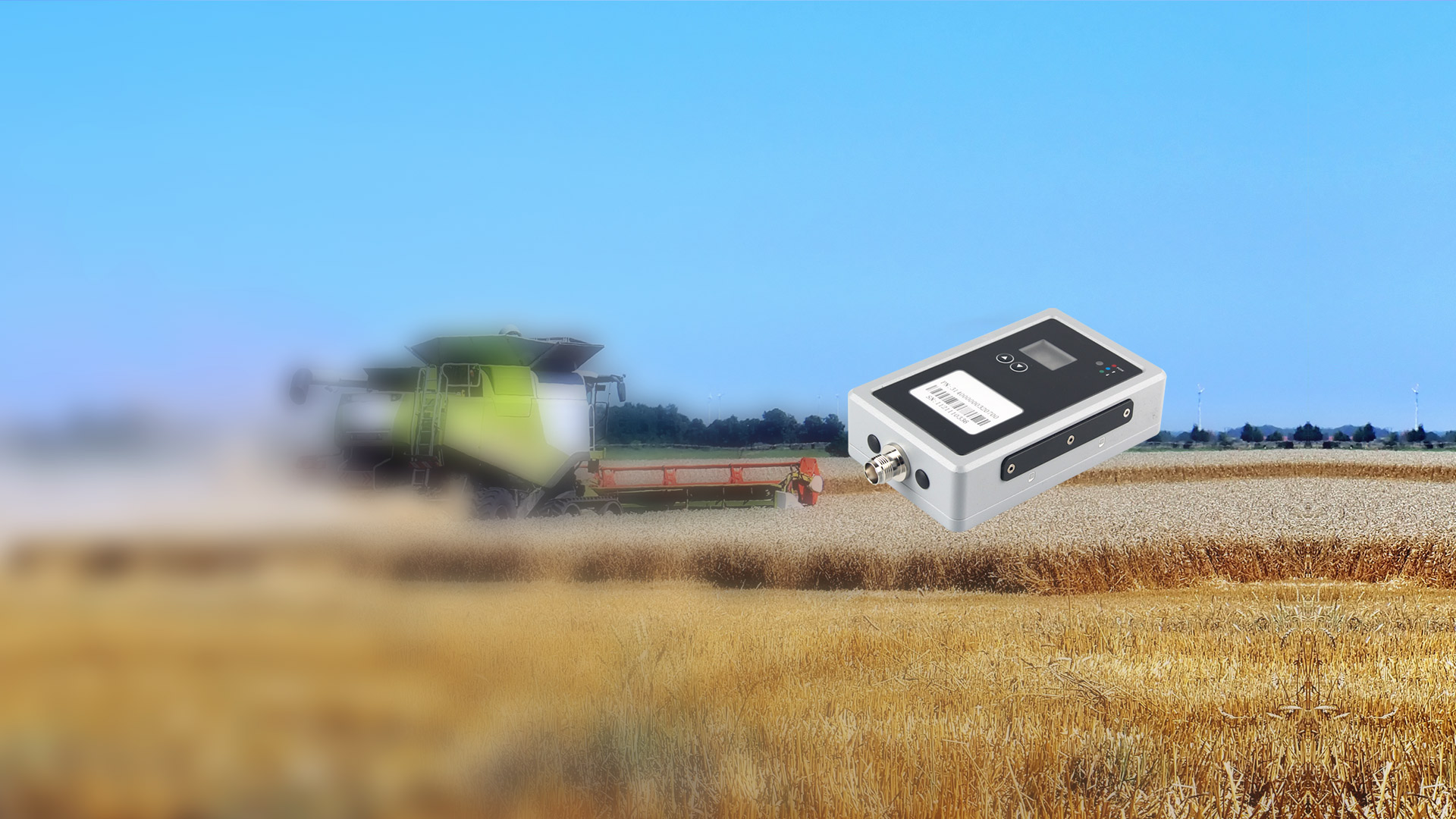

Precision Agricuture
Specifications
Resources
RF PERFORMANCE
Frequency Range
410-470 MHz
Channel Spacing
250 kHz
Work Mode
Half-duplex
Frequency Stability
1.5 ppm
Protocol Type
LoRa
GENERAL
Size
126×71×30mm
Weight
300g
Waterproof & Dustproof
IP66
Antenna Interface
TNC, 50 Ohm
D1-L External Datalink
pdf
2025.06.04
845.03 KB
Download
