N1
GNSS RECEIVER

Reliable & Expert Reference Station

Become a Dealer

Home

Products

N1
GNSS RECEIVER

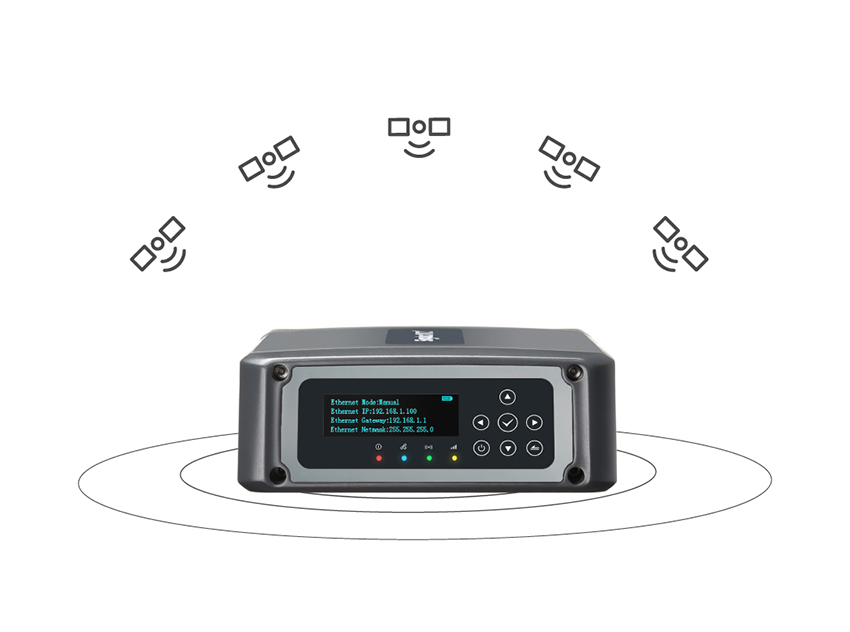

Full-Constellation Tracking

To ensure superior GNSS performance in all application scenarios, N1 is equipped with a high-precision GNSS engine for simultaneously tracking GPS, BDS, GLONASS, Galileo & QZSS, offering high quality and stable GNSS data.

Industry-Standard Communication

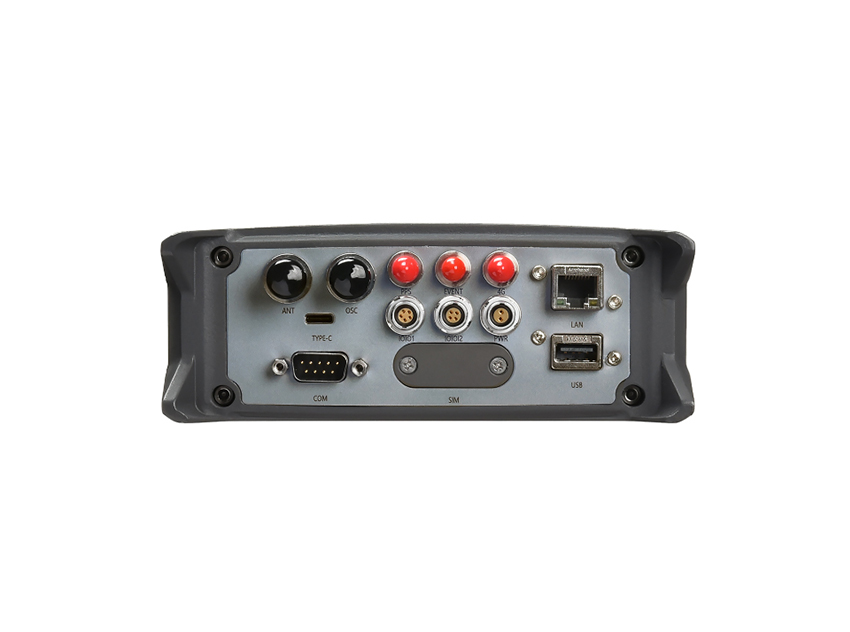

Support industry-standard protocols of TCP, Ntrip server, Ntrip caster, etc., formats of NMEA-0183, RTCM v3.x, etc., and abundant interfaces like PPS, Event, oscillator, RS485 and RS232 for enhanced adaptability.

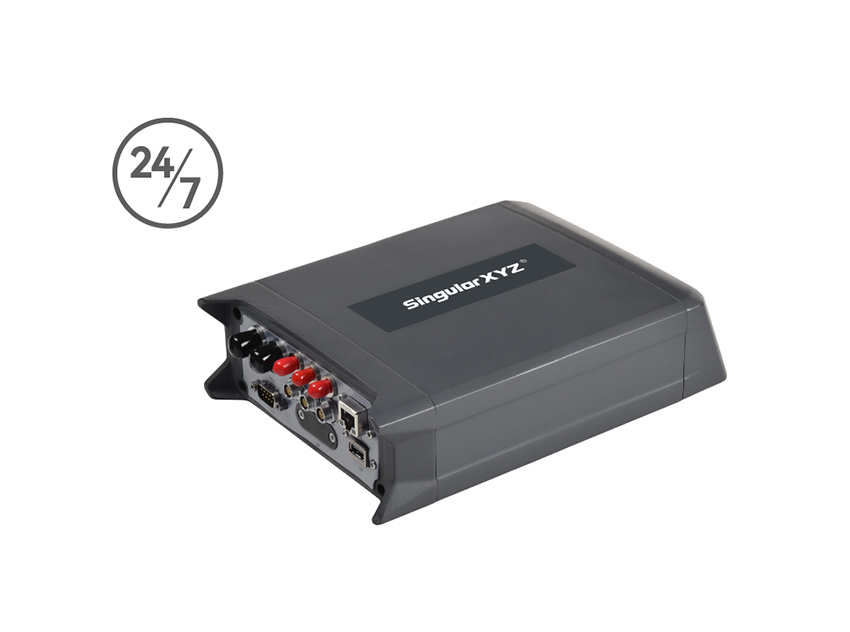

24/7 Long-Term High Stability

Versatile connectivity options of Ethernet/4G, dual power sources of internal battery*/external power and built-in Linux OS of N1 ensure uninterrupted long-term operation with an MTBF over 20,000 hours.

Full-Constellation

Industry-Standard Communication

24/7 Stability

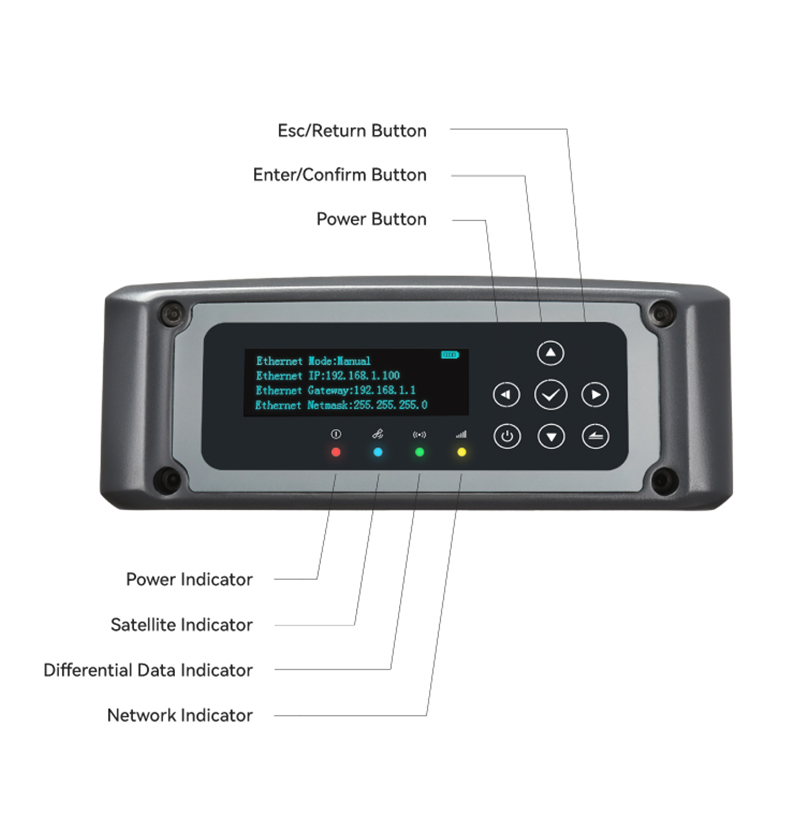

2.45" Display Interaction

Designed with a front panel of 2.45" display, status indicators and interaction buttons, N1 makes it more convenient for status and information checking.

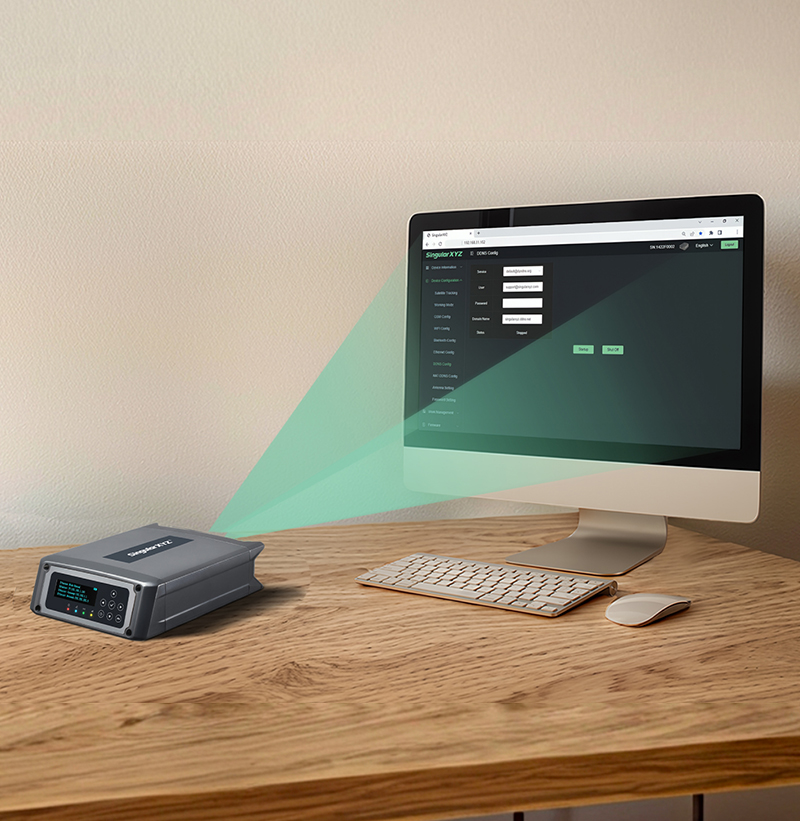

Comprehensive Web Interface

Accessed via Ethernet, users can monitor the device status in real-time comprehensively and do configurations like working modes, data transfer settings, firmware upgrade, etc.

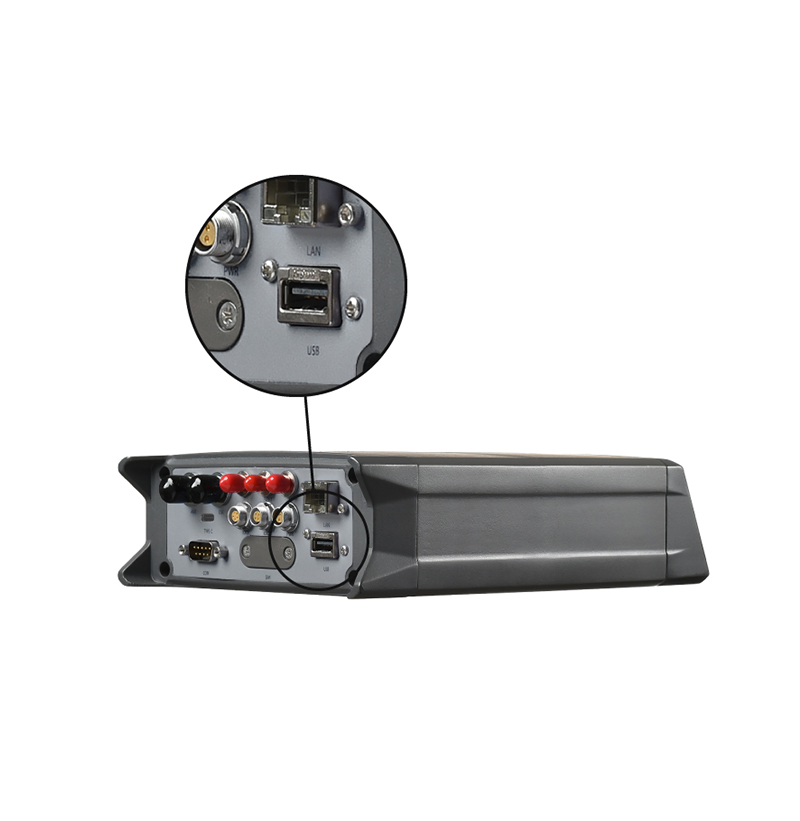

Dual Data Storage

Comes with a default 8GB or up to 32GB customizable internal memory, a USB port for external storage and a loop recording function, N1 can fully save and back up your GNSS raw data.

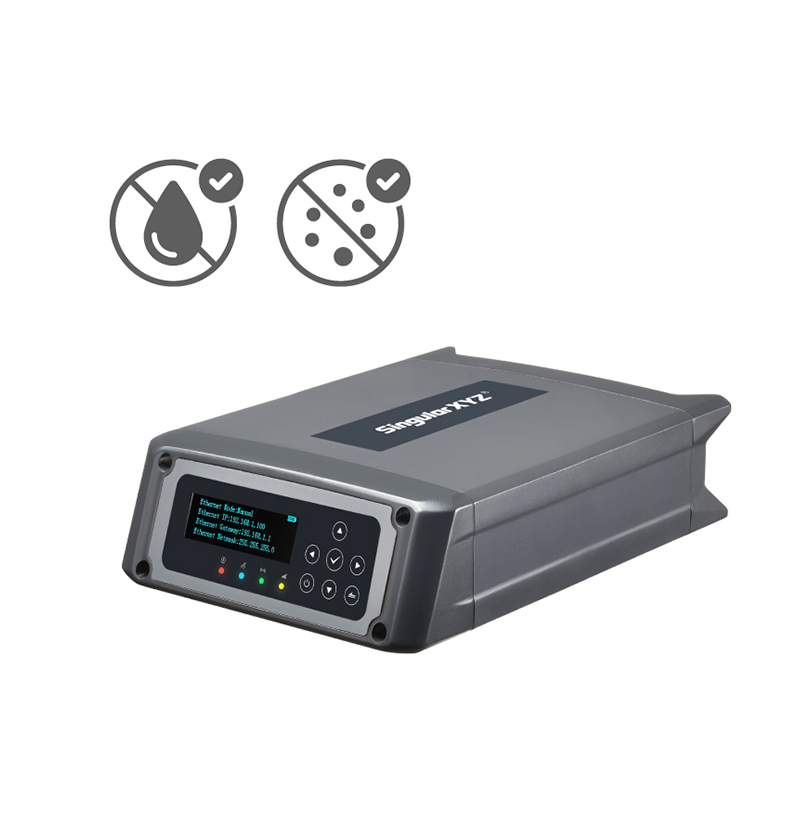

IP67 Rugged Housing

Featured with IP67 protection, aluminum alloy housing and MIL-STD-810 anti-vibration design, the rugged N1 can work stably in any work environment.

Software & Platform

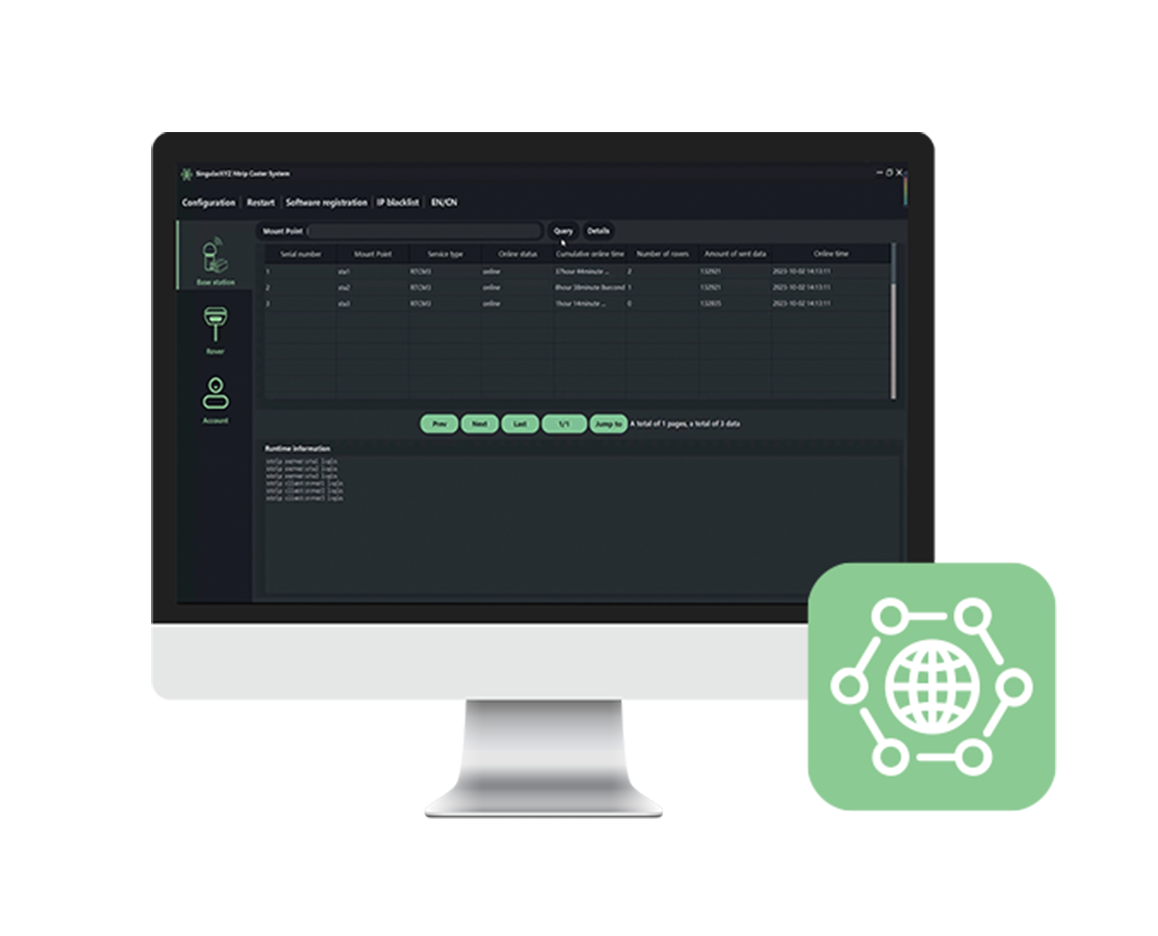

SingularCaster CORS Platform

SingularCaster is designed for your CORS network management, incorporating features such as base station management, online rover management, user subscription management, and system logs.

Industries & Applications

CORS

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

GENERAL

Linux

WebUI

Accessible via Wi-Fi

MTBF

> 20000 hours

Size

238*168*62mm, including connectors

Weight

3 kg without battery

Waterproof & Dustproof

IP67

OLED Display

2.45” screen

COMMUNICATION

Network Protocol

TCP, MQTT*, Ntrip Server, Ntrip Caster, UDP

4G modem

Support

NAT-DDNS

Support

WiFi

802.11 a/b/g/n/ac

FTP

Support FTP download and FTP push
