SingularXYZ Intelligent Technology

S200
GNSS RECEIVER

For Your Centimeter Vehicle Navigation

Become a Dealer

Home

Products

S200
GNSS RECEIVER

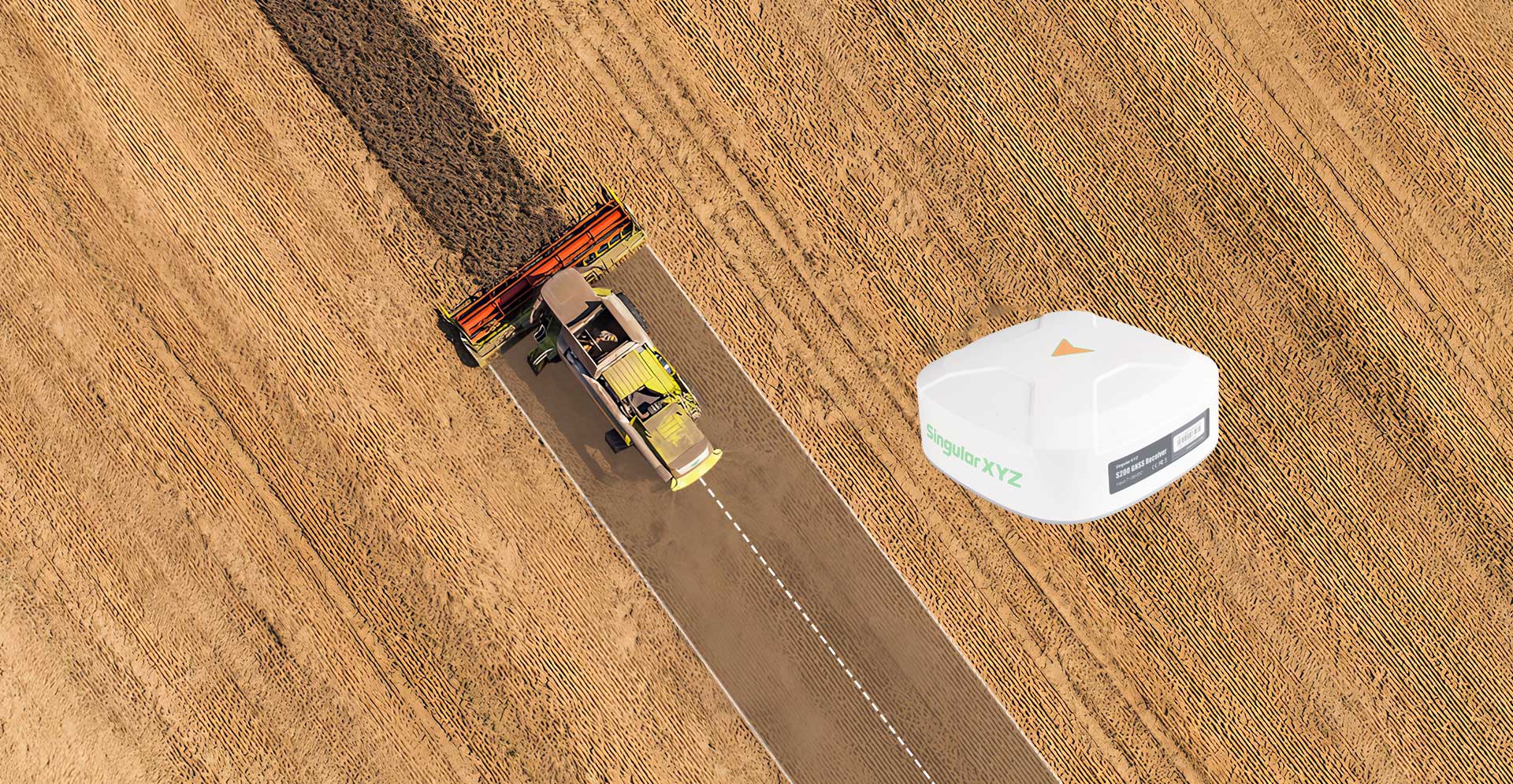

Centimeter-Level Navigation

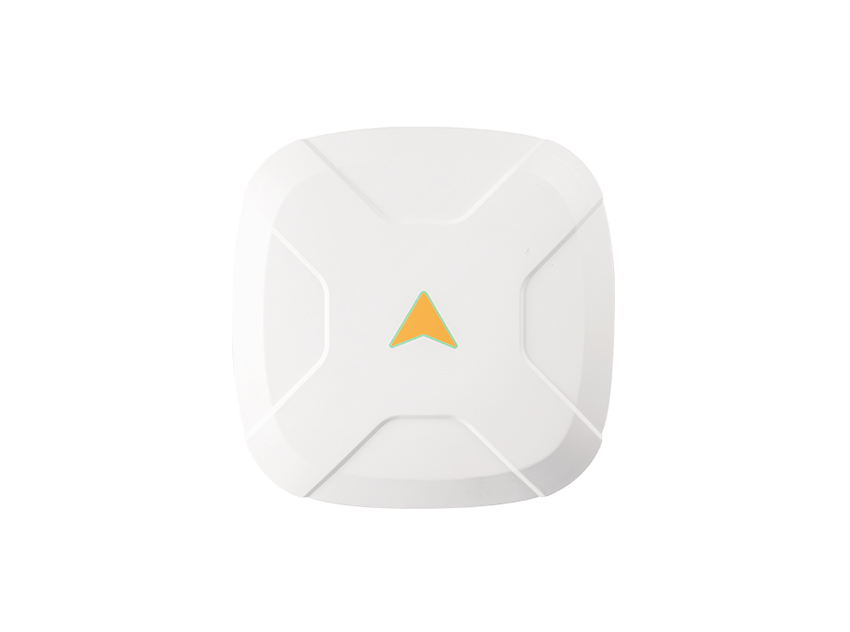

With 1408 channels GNSS engine, S200 is capable of tracking GPS, BDS, GLONASS, Galileo and QZSS and delivers stable & accurate positioning in complex environments. Integrated with gyroscope for vehicle orientation, S200 provides users with centimeter-level accuracy for vehicle navigation.

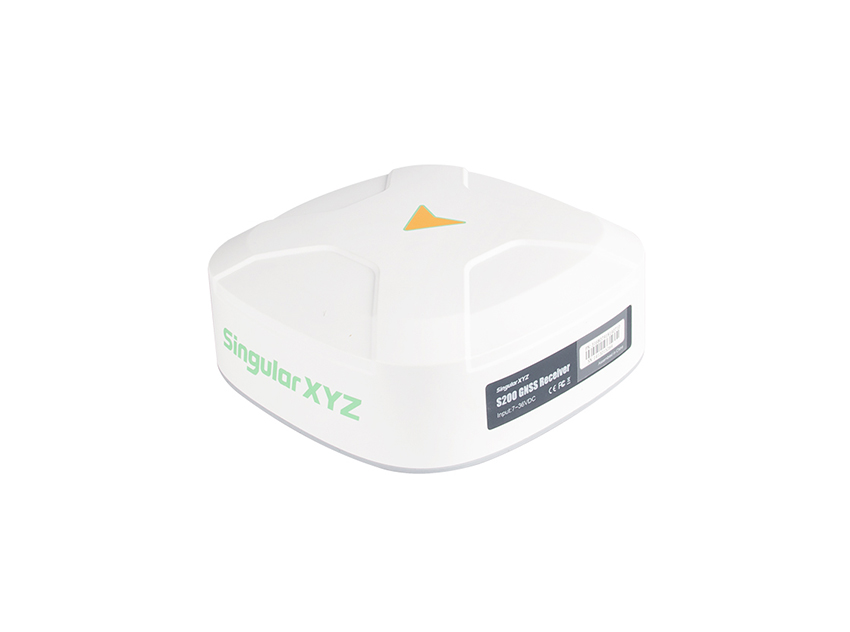

All-in-One Design

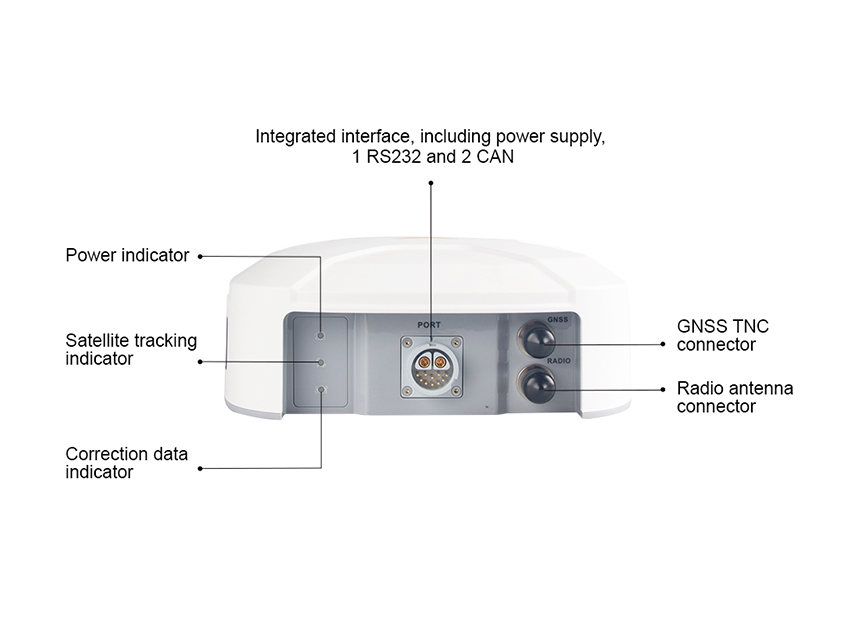

The S200 GNSS receiver has integrated GNSS antenna, GNSS module, gyroscope and transmission modules together, the high integration largely reduces system components of your vehicle system and improves the compatibility on different vehicles.

Flexible Communication

To increase flexibility in configuration and transmission, S200 is equipped with Bluetooth*/UHF/4G/RS232/CAN for communication. RTK correction data can be transmitted by 4G, or radio in some areas without network coverage.

Centimeter Navigation

All-in-One Design

Flexible Communication

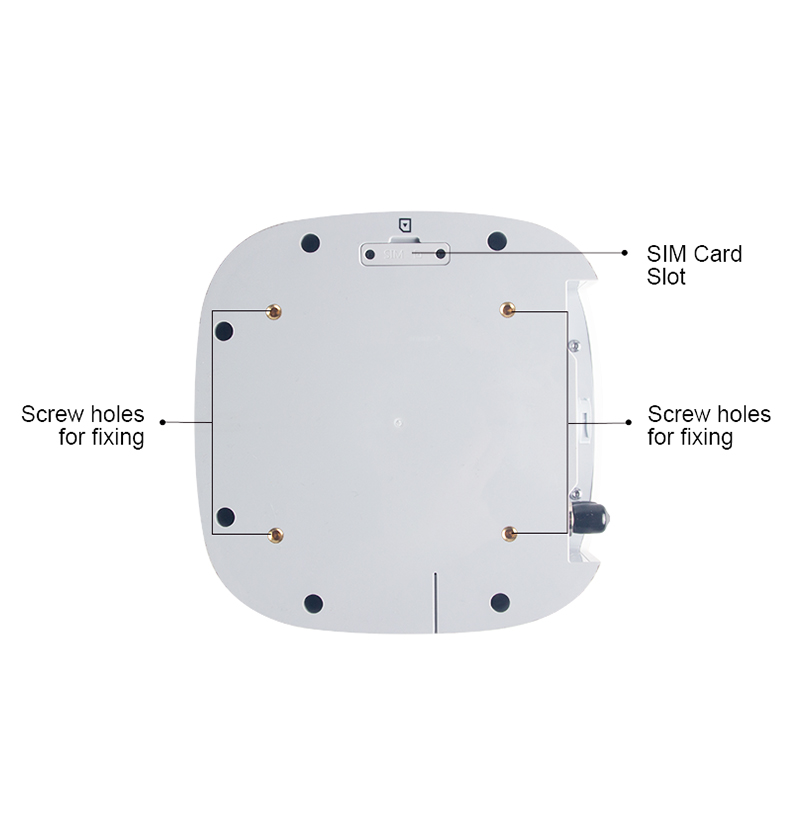

Rugged Durability

Taking into account the working environments of users, the S200 is IP67 rated for all-weather field applications. Designed to be vibration-proof and easy-to-install, it can be easily secured on your vehicle system.

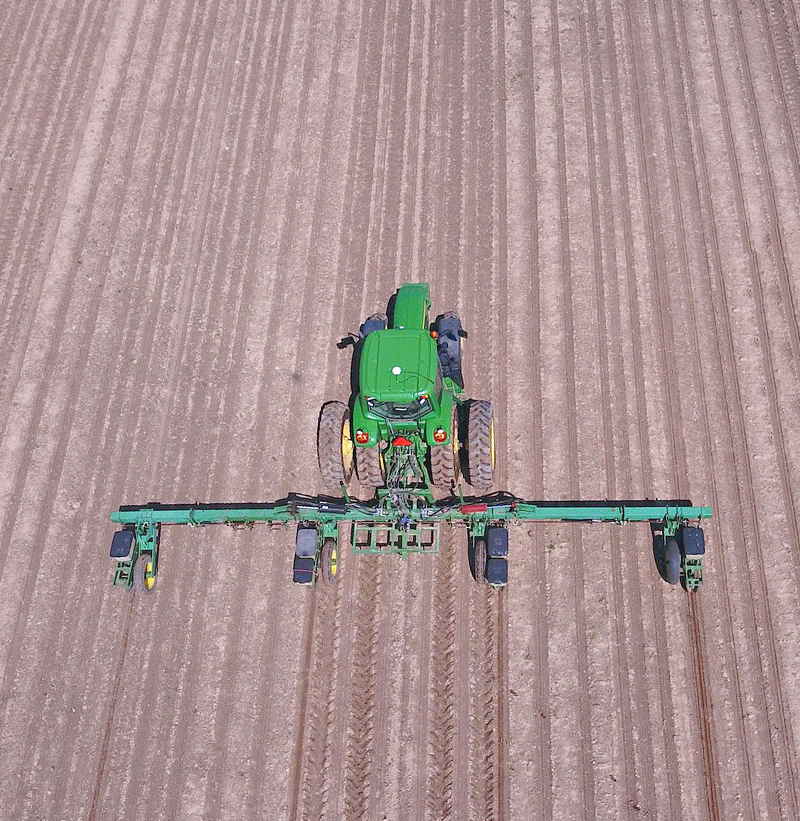

Wide Applications

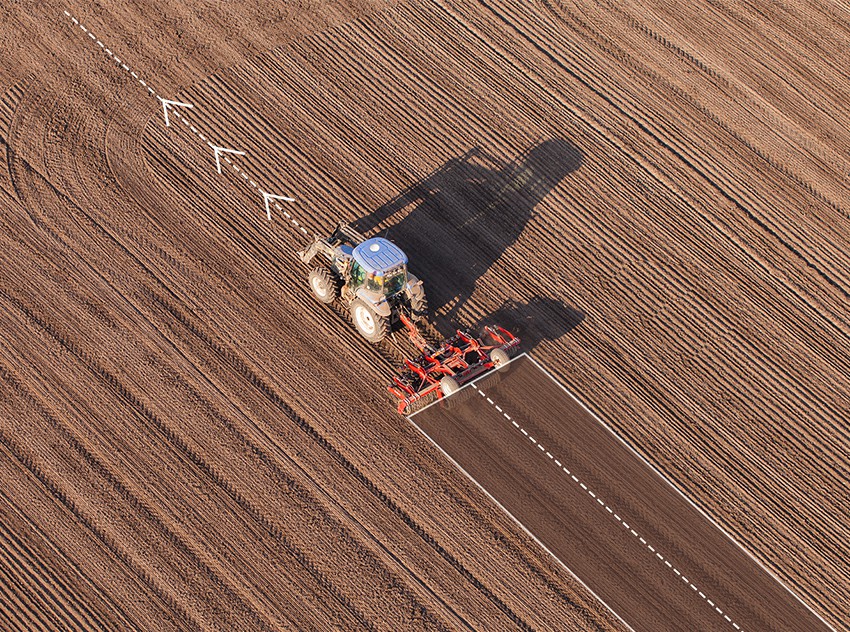

The S200 GNSS receiver is suitable for vehicle-mounted applications such as precision agriculture and construction machinery, providing precise navigation and stable transmission.

Industries & Applications

Precision Agricuture

Vehicle Navigation

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I

GPS

L1C/A, L1C, L2C, L5

GLONASS

G1, G2

Galileo

E1, E5a, E5b

QZSS

L1, L2, L5

GENERAL

GNSS Data output format

NMEA-0183, binary

GNSS Data output rate

1～20Hz selectable

INS Data update rate

1～100Hz selectable

Size

181.4mm×181.1mm×70mm

Weight

1.05Kg

Waterproof & dustproof

IP67
