DK100
DEVELOPMENT KIT
Ready To Use, Make Your GNSS Development Easier
Become a Dealer
Home Products DK100
DEVELOPMENT KIT

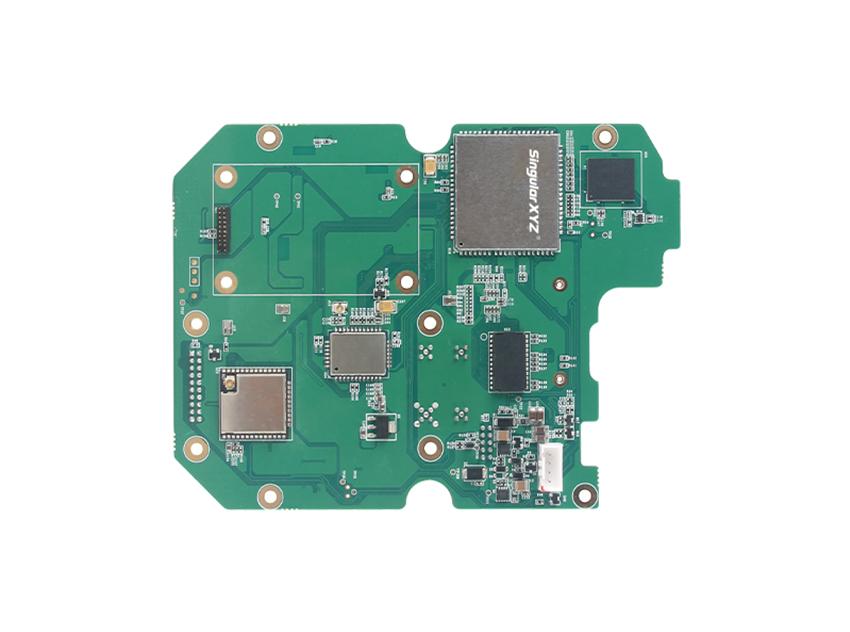

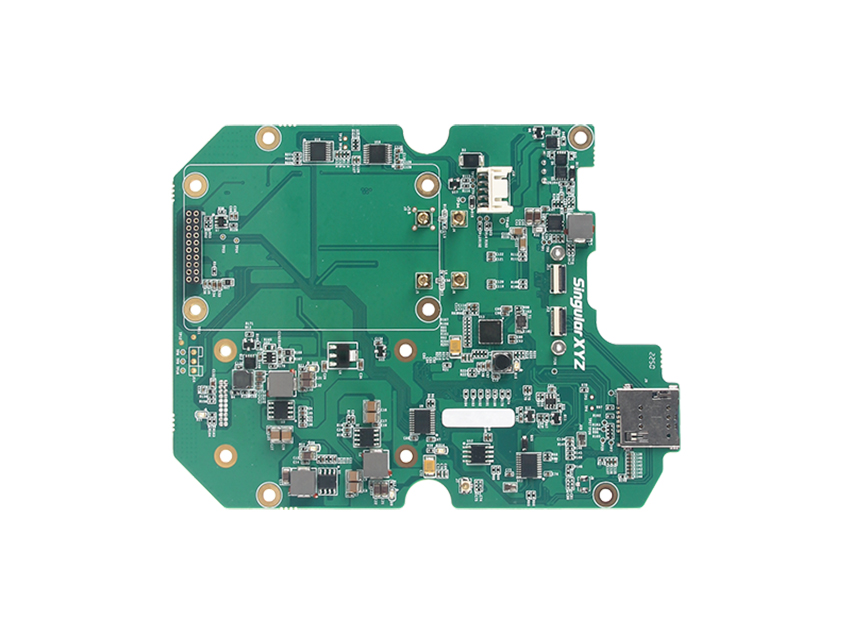

Easy Integration
In order to simplify the difficulty of user integration, the DK100 development kit has integrated GNSS module, 4G module, radio module, WiFi/Bluetooth/Ethernet module, large memory and status indicators on a single PCBA, providing most functions you need.

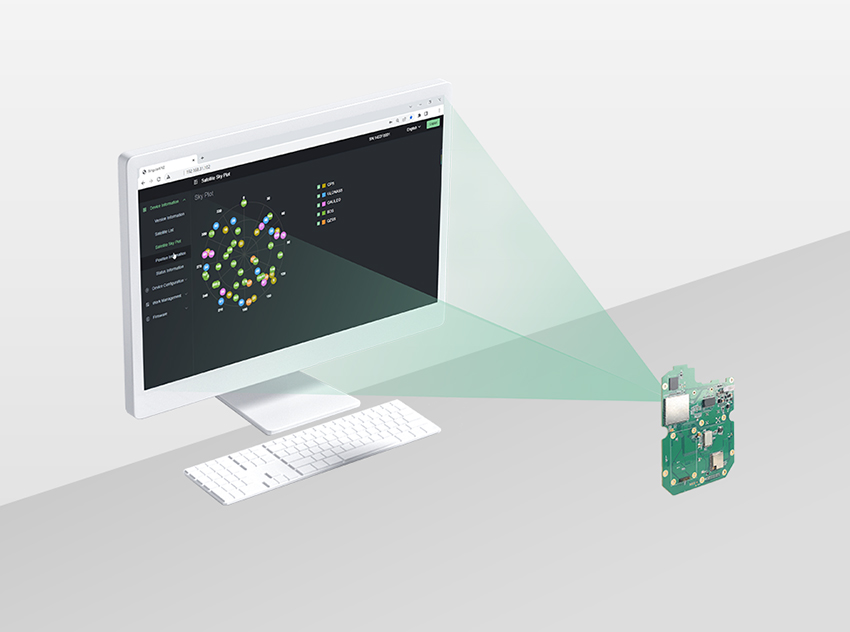

Comprehensive Web UI
For easier and more intuitive configuration, the DK100 is equipped with a clean and comprehensive web page that accessed via Ethernet/ WiFi. Users can directly monitor device status and configure working modes and data transfer settings in the page.
High Compatibility
Designed for different application directions, the high compatibility is what we concerned about. DK100 reserves standard adapter board interfaces to connect different GNSS modules and radio modules based on your specific demands.
Easy Integration
Comprehensive Web UI
High Compatibility
Industries & Applications
Vehicle Navigation
Unmanned Systems
Machine Guidance
Specifications
Resources
GENERAL
System
Linux OS
Web UI
- Accessible via Wi-Fi, Ethernet
- Support configuration, status checking, data transfer, data storage and system upgrade
Network protocol
TCP, MQTT*, Ntrip Server, Ntrip Caster
Dimensions
140mm*106mm*15mm
Power consumption
3.5 W, typical
STANDARD COMPONENTS
GNSS board
- Full-constellation tracking
- Single-antenna & dual-antenna optional
Bluetooth module
Bluetooth 4.0 dual mode
WiFi module
802.11 a/b/g/n/ac
4G module
Support
Memory module
8GB
DK100 Development Kit
pdf
2025.06.05
1.42 MB
Download
