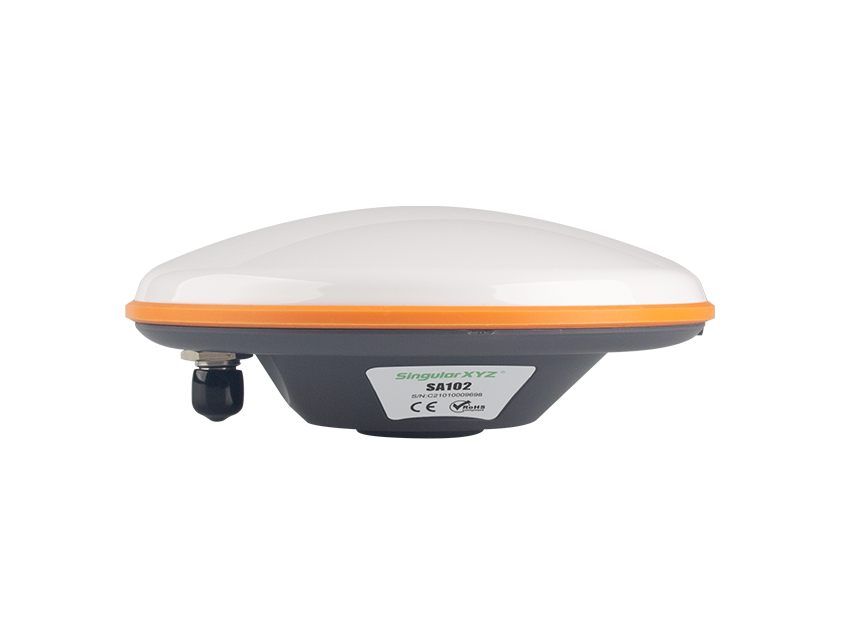

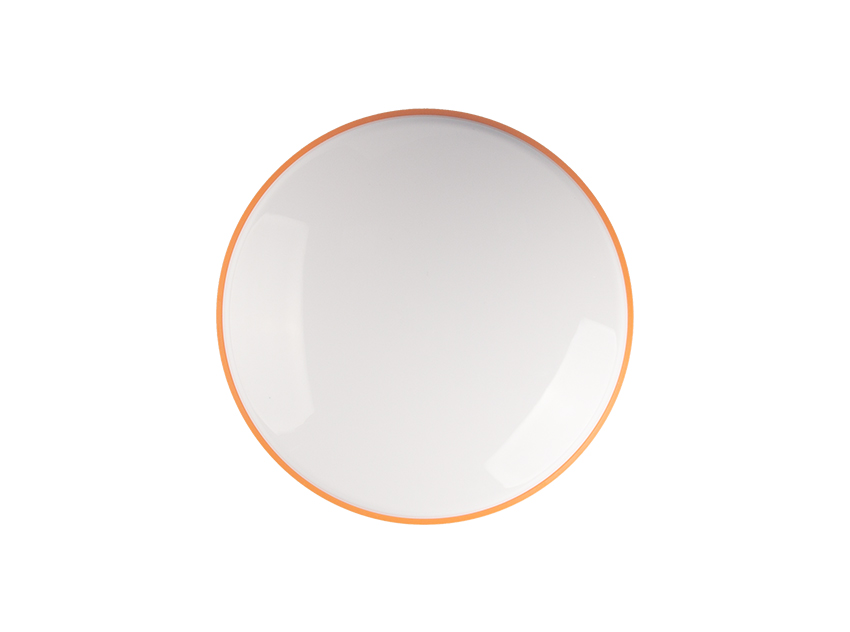

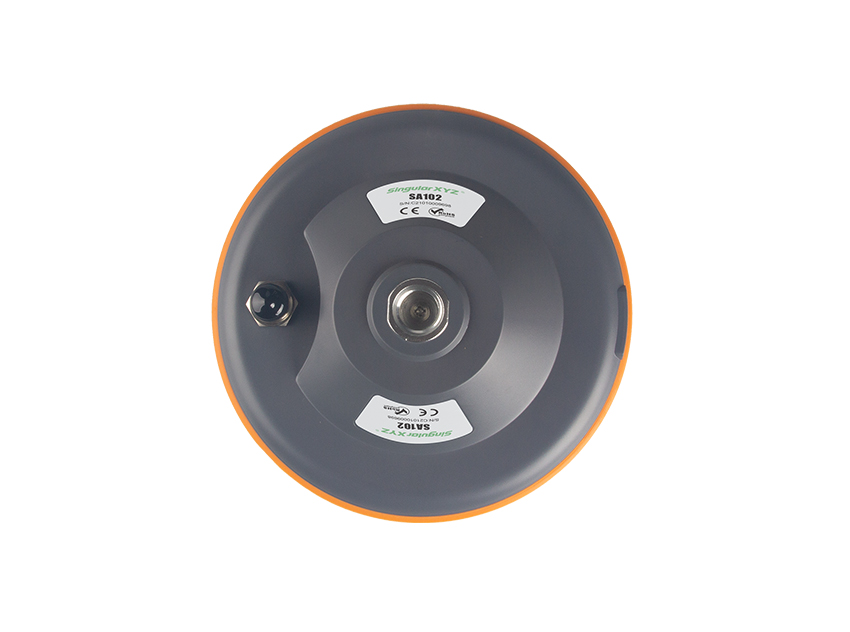

SA102
GNSS ANTENNA
Superior Partner of Your GNSS Applications
Become a Dealer
Home Products SA102
GNSS ANTENNA
High Phase Center Stability
Featuring a multi-point feeding deign, the antenna achieves greater phase center stability to ensure positioning accuracy. Employing anti-interference technology, the antenna operates reliably in complex environments.
Rugged Design
Encased in an IP67 housing, it also withstands temperature variations, water exposure, and UV rays, ensuring prolonged outdoor operation.
Full-Constellation Receiving
SA102 offers full constellation coverage, tracking GPS, GLONASS, BDS, Galileo, QZSS, and more, ensuring stable satellite signals for your needs. Featuring high gain and wide beamwidth, ensuring superior signal reception even in heavily obstructed areas and at low elevation angles.
Phase Center Stability
Rugged Design
Full-Constellation
Industries & Applications

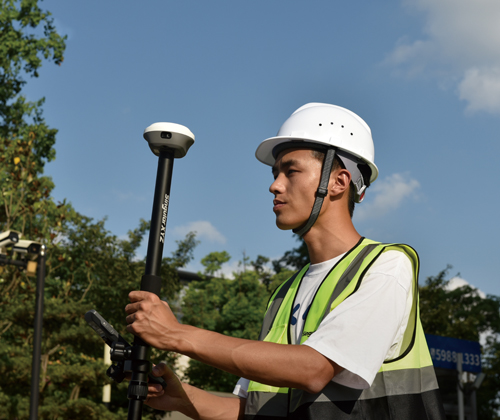

Land Surveying

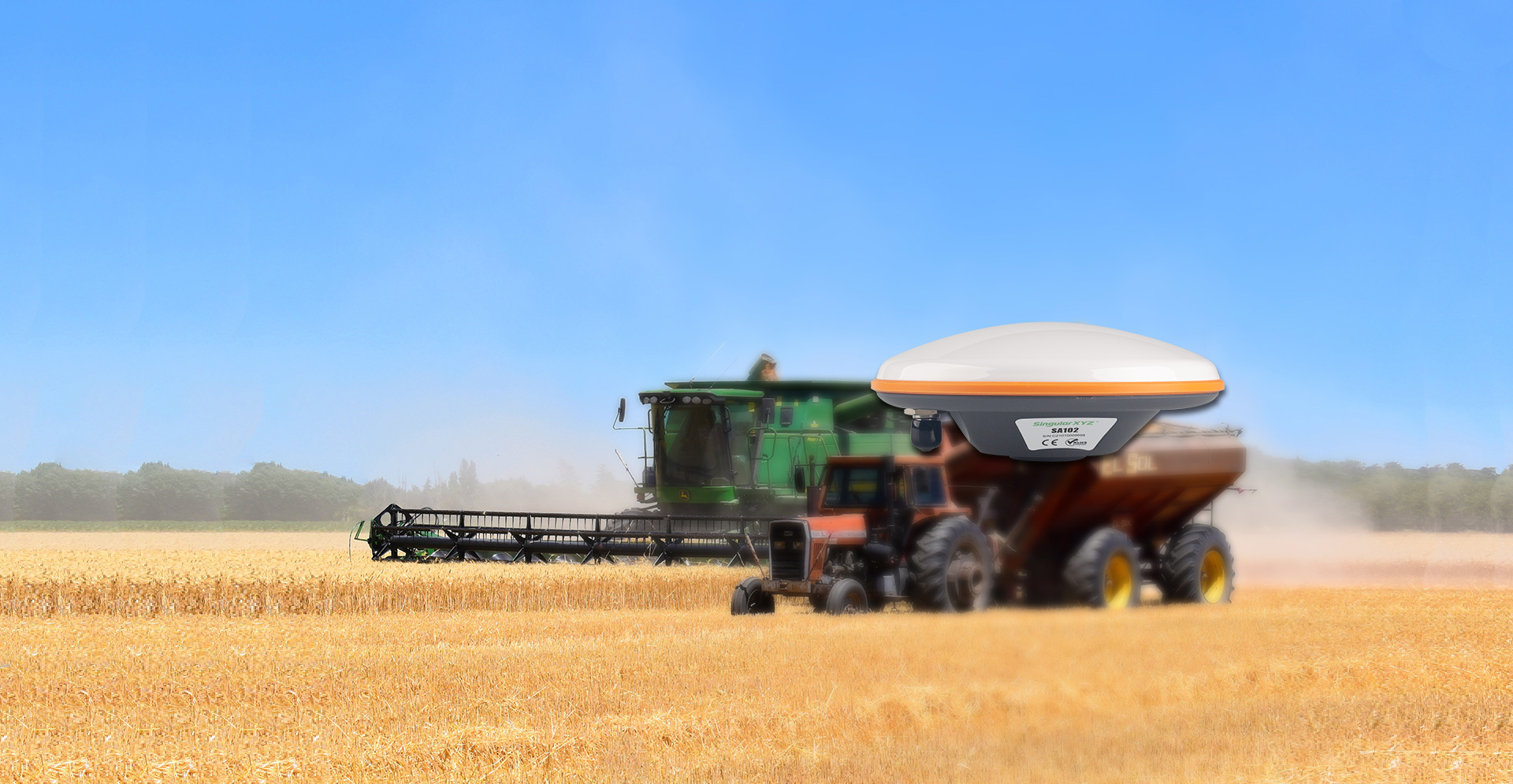

Vehicle Navigation
Specifications
Resources
SATELLITES TRACKING
BDS
B1I, B2I, B3I, B1C, B2a, B2b
GPS
L1 C/A, L1C, L2P, L2C, L5
GLONASS
G1, G2, G3
Galileo
E1, E5a, E5b, E6, E5 AltBoc
QZSS
L1, L2, L5
LNA PERFORMANCE
Axial Ratio
≤3dB
Phase Center Accuracy
±2mm
LNA Gain
36±2dB
Noise Figure
≤1.8dB
Impedance
50 Ohm
SA102 GNSS Antenna
pdf
2025.06.03
615.19 KB
Download
