P2
GNSS RECEIVER

Accurate, Alert, Wearable: Elevating Construction Safety

Become a Dealer

Home

Products

P2
GNSS RECEIVER

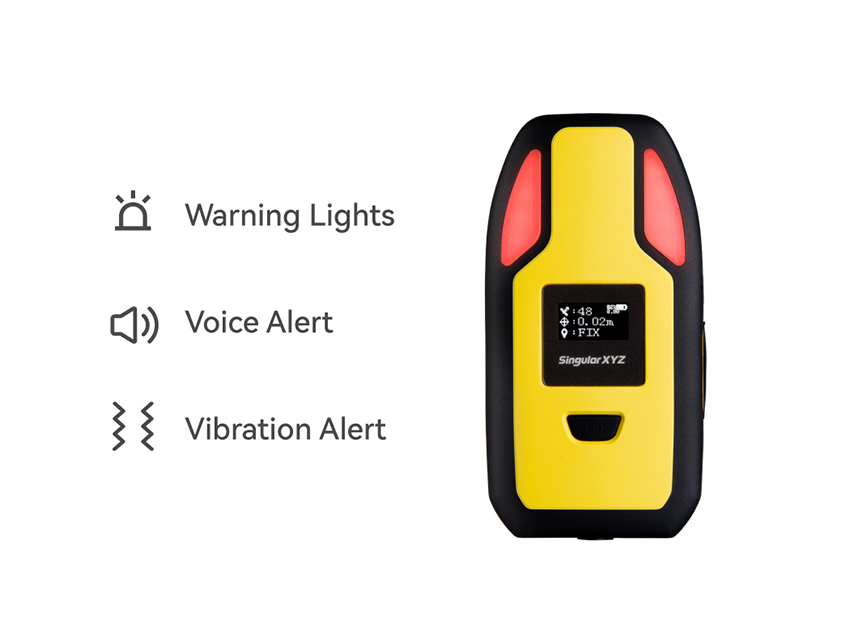

Advanced Safety Alerts

Prioritizing construction site safety, the P2 GNSS receiver comes with a range of warning features including warning lights, voice alerts, and vibration alerts, notifying users when they entering dangerous areas, enhancing safety during construction operations.

Wearable Design

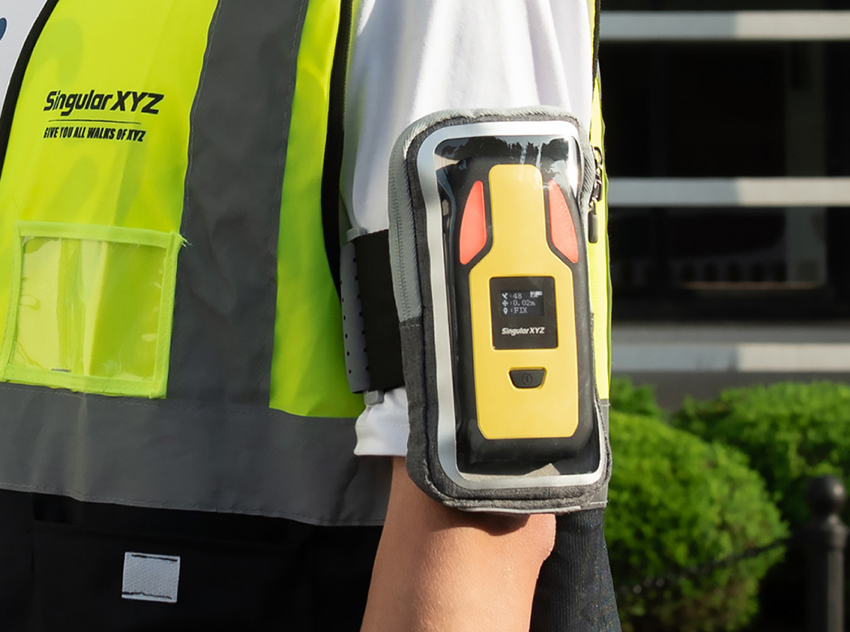

Designed with user comfort in mind, the P2 features a flexible and wearable design that can be easily worn on the arm, around the neck, or attached to a helmet. This ensures enhanced personnel safety without adding unnecessary burden to construction workers.

Centimeter-Level Tracking

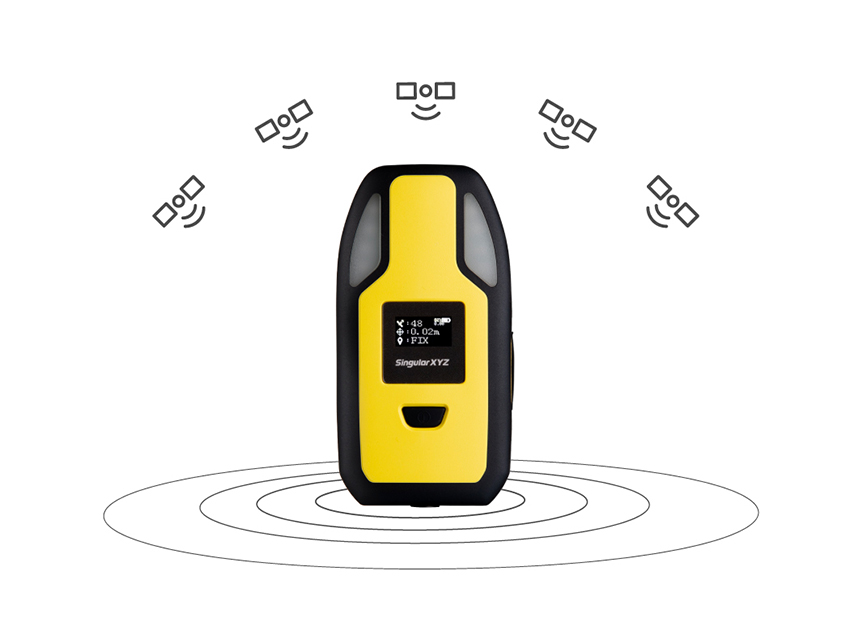

Considering obstacles in the construction site, P2 GNSS receiver is upgraded with 1408-channel GNSS engine, tracking GPS, BDS, GLONASS, Galileo and QZSS synchronously, providing enhancing consistent and reliable centimeter-level positioning.

Safety Alerts

Wearable Design

Centimeter Tracking

Tailored Integration Support

SingularXYZ offers comprehensive SDK documentation and R&D support for customized functions such as geo-fencing integration, trajectory recording, real-time position tracking, operation area statistics, etc.

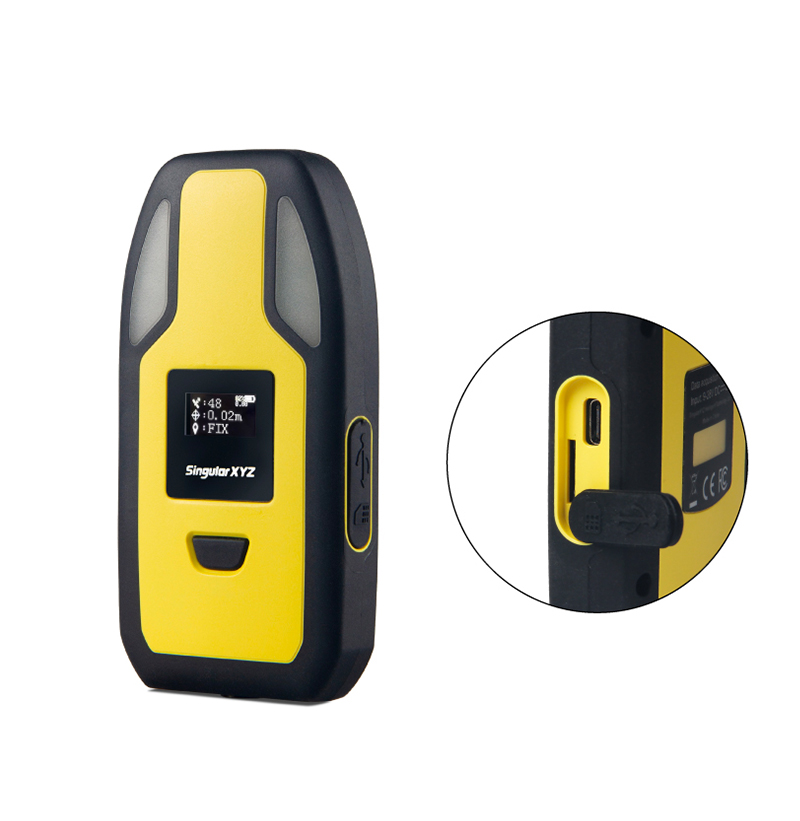

Efficient Communication

Featuring a built-in 4G modem for real-time RTK correction data reception and positioning data returning, the P2 also offers Bluetooth connectivity for convenient configuration and a Type-C interface for charging and upgrades.

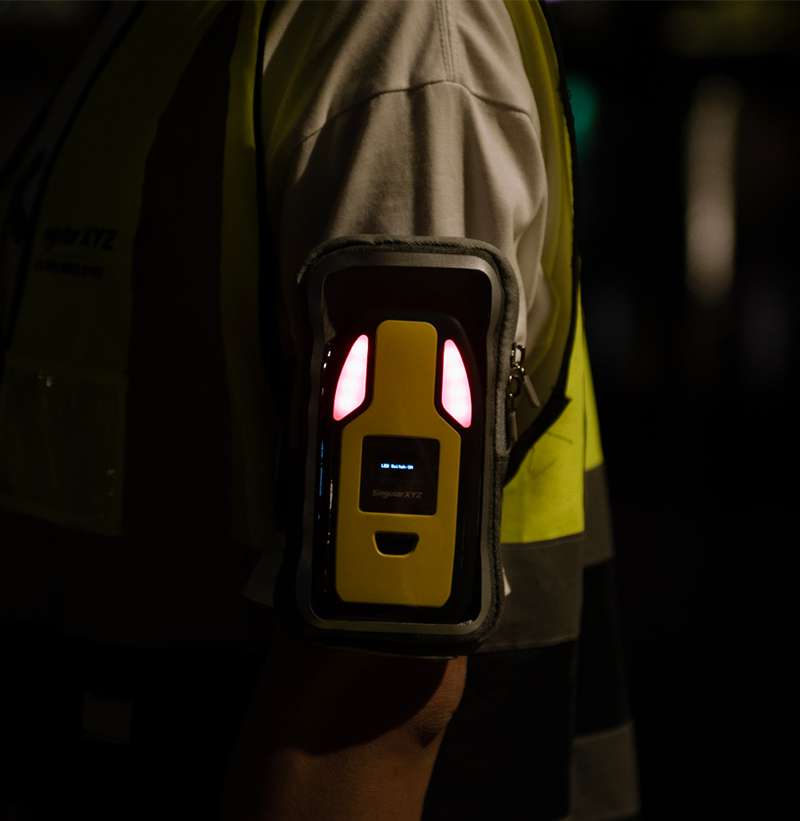

Guarantee Your Safety

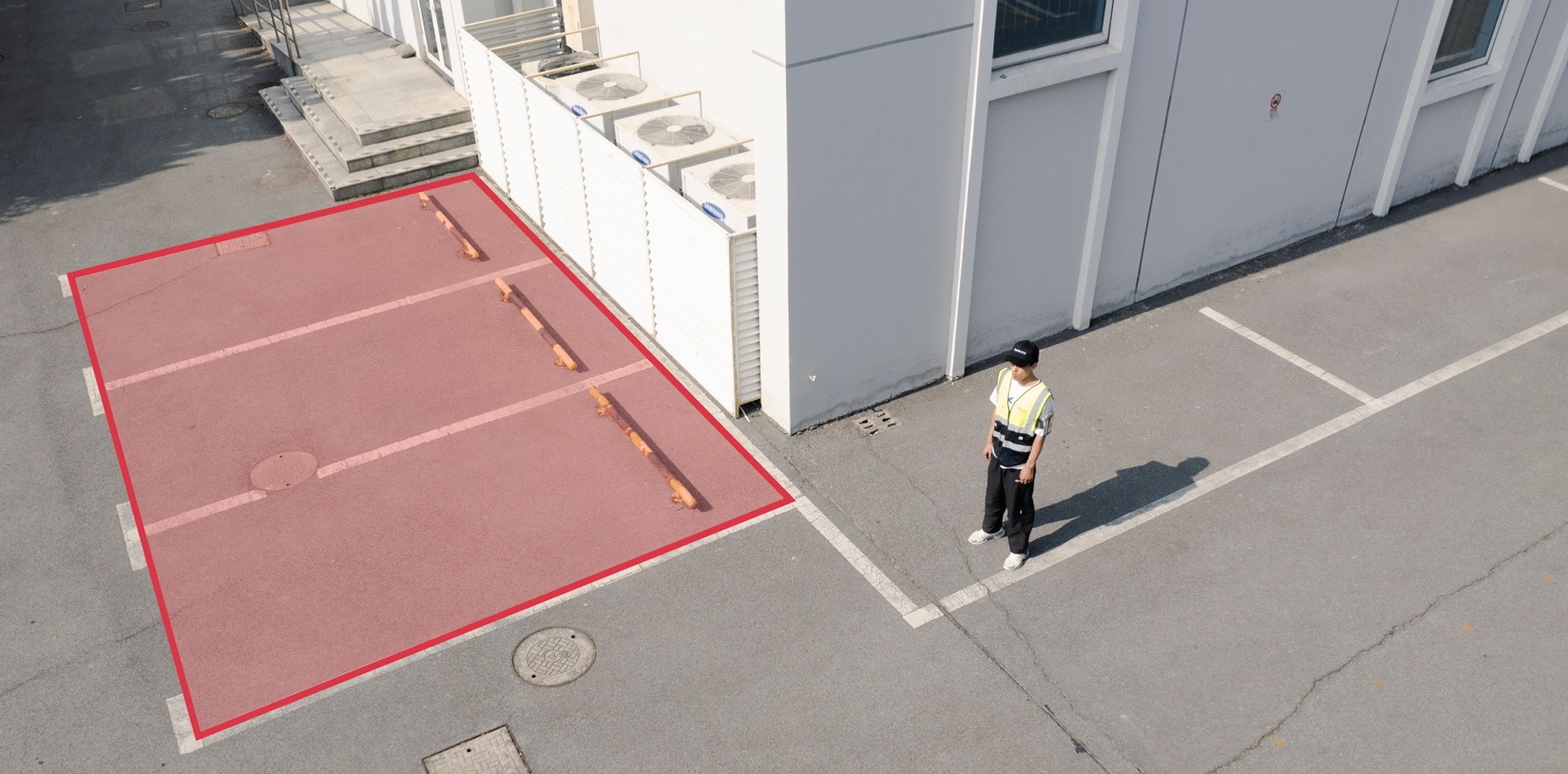

Integrated with geofencing platforms, the P2 can alert operators when they are nearing hazardous or restricted areas. Additionally, the always-on warning light serves as a visual warning during night operations, further enhancing safety on the construction site.

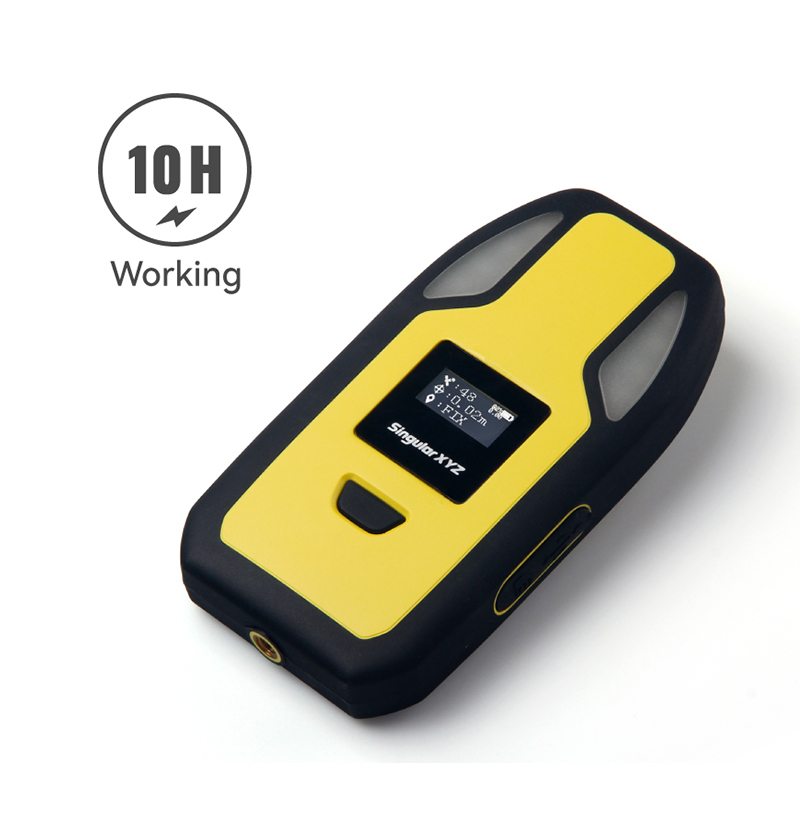

Long Time Battery

Powered by a 4000mAh internal battery and optimized for low power consumption, the P2 can operate continuously for up to 10 hours, ensuring uninterrupted safety throughout the workday.

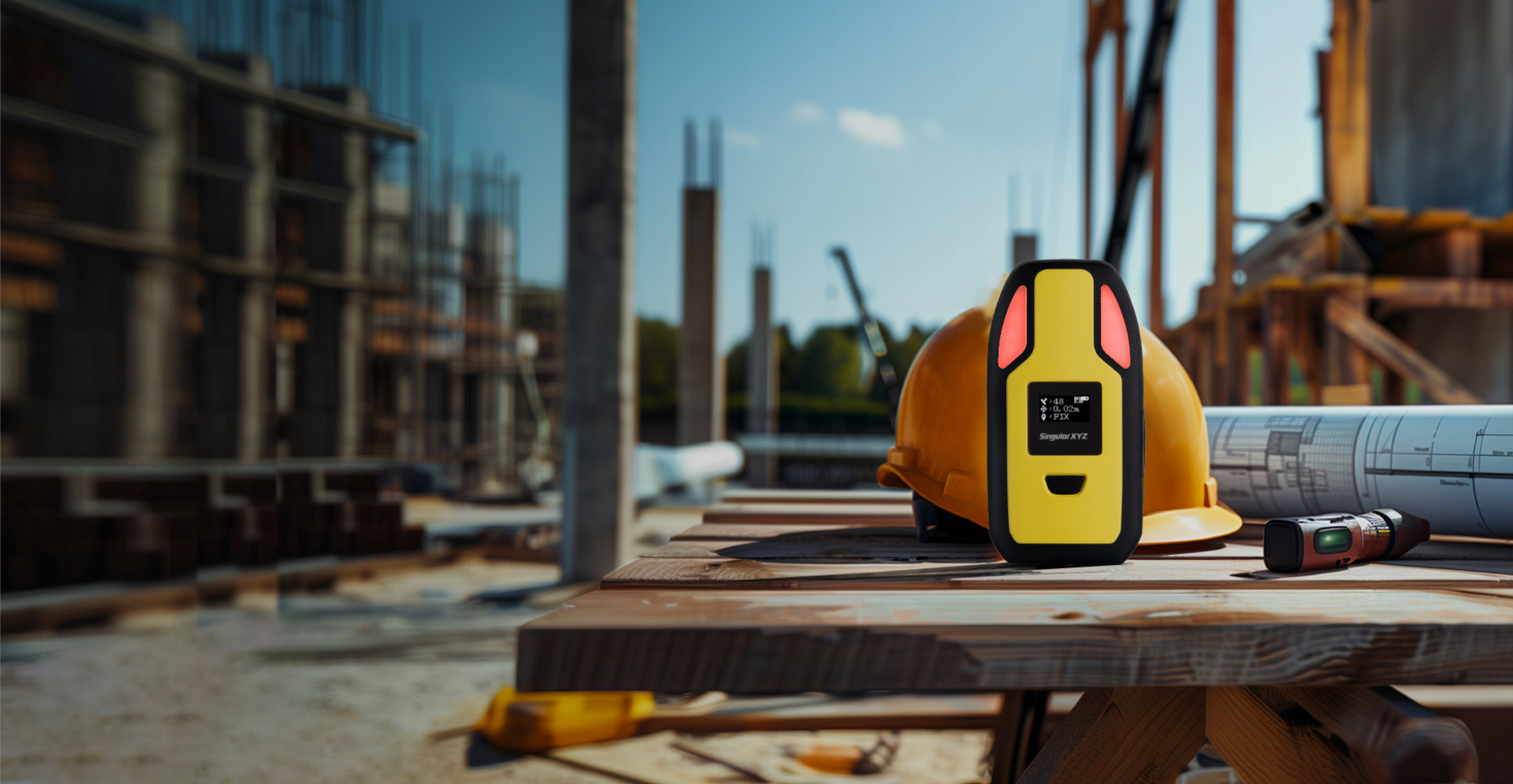

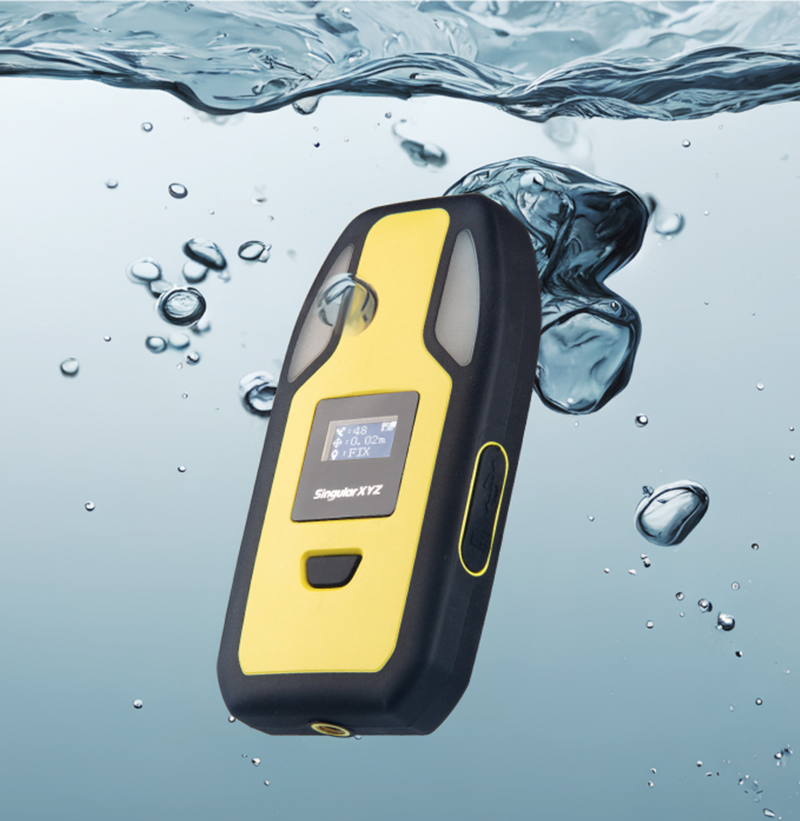

IP67 Protection

Built to withstand harsh working conditions, the P2 is housed in a rugged IP67 enclosure with sealed plugs, providing protection against accidental drops, shocks, inclement weather, and other potential damages.

Handheld For GIS

Weighing only 199 grams, the P2 GNSS receiver is an ultra-lightweight, perfect handheld device for all your GIS tasks and various positioning related applications.

Software & Platform

SingularThings Cloud Platform

SingularNav Configuration Tool

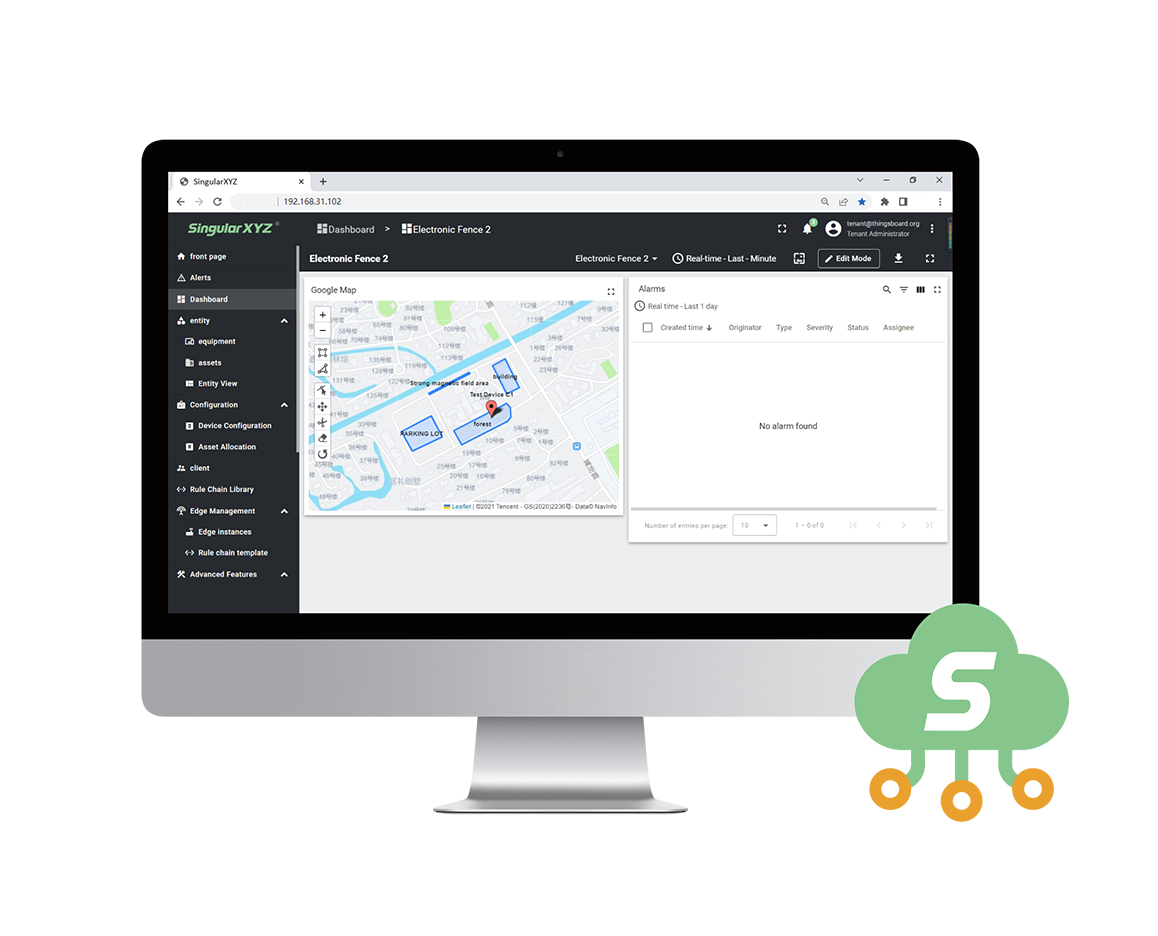

SingularThings Cloud Platform

SingularThings is a cloud platform for remote device management, including configuration, upgrades, alert command sending, and real-time status and positioning monitoring. It supports comprehensive customization according to project needs.

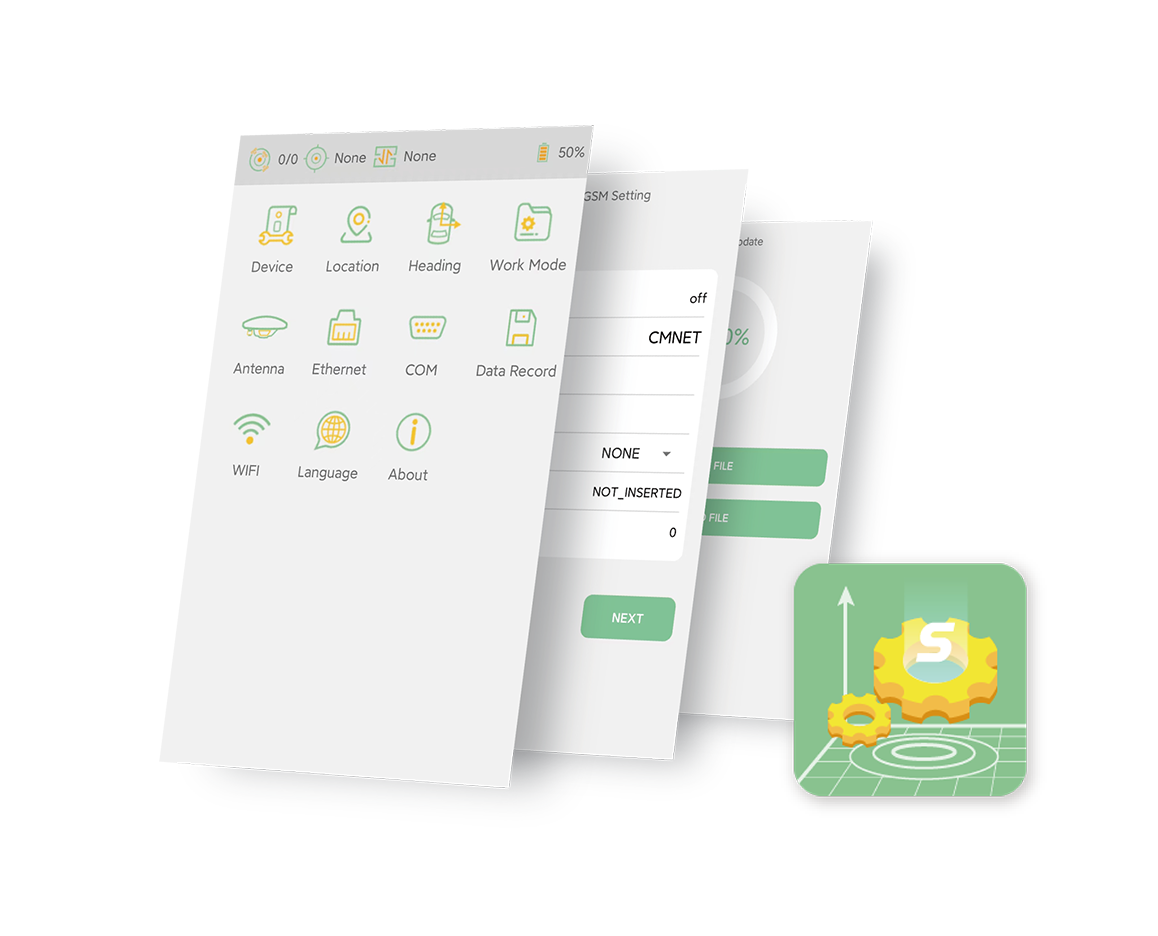

SingularNav Configuration Tool

Connected via Bluetooth, the SingularNav tool allows users to configure the P2 GNSS receiver on-site, check device status, perform firmware upgrades, and more.

Industries & Applications

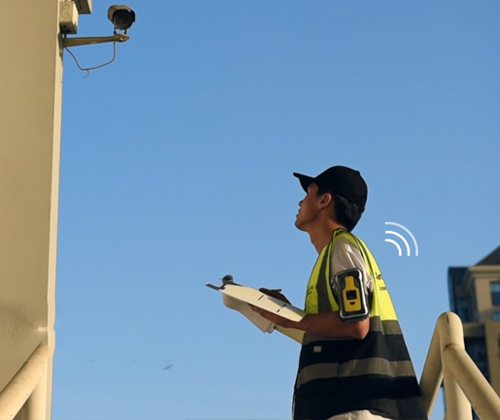

Personnel Tracking

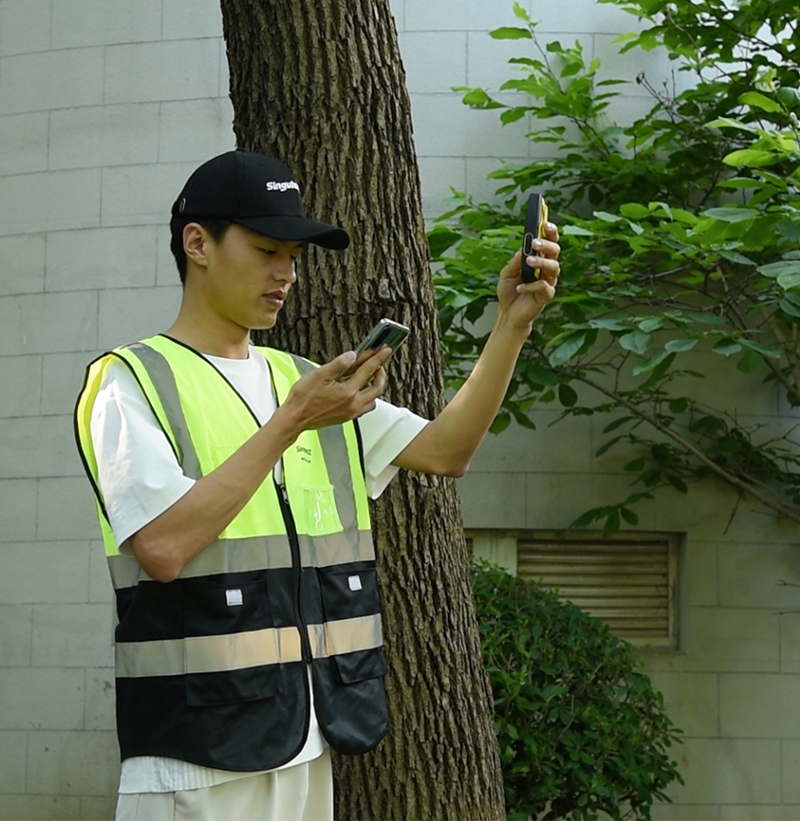

GIS

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

RTK Accuracy

8mm+1ppm Horizontally
15mm+1ppm Vertically

FUNCTIONALITY

Visual Alert

Two bright lights flash to provide a warning signal

Auditory Alert

Emits a loud and distinctive sound as an alert

Vibration alert

The wearable vibrates vigorously to alert the wearer

GENERAL

Battery

4000mAh

Size

135*70*22mm

Weight

199g

Waterproof & Dustproof

IP67

COMMUNICATION

Bluetooth

BT4.2 BR/EDR

Support

P2 GNSS Safety Solution
