DL07
DIGITAL LEVEL

Precision & Productivity Combined

Become a Dealer

Home

Products

DL07
DIGITAL LEVEL

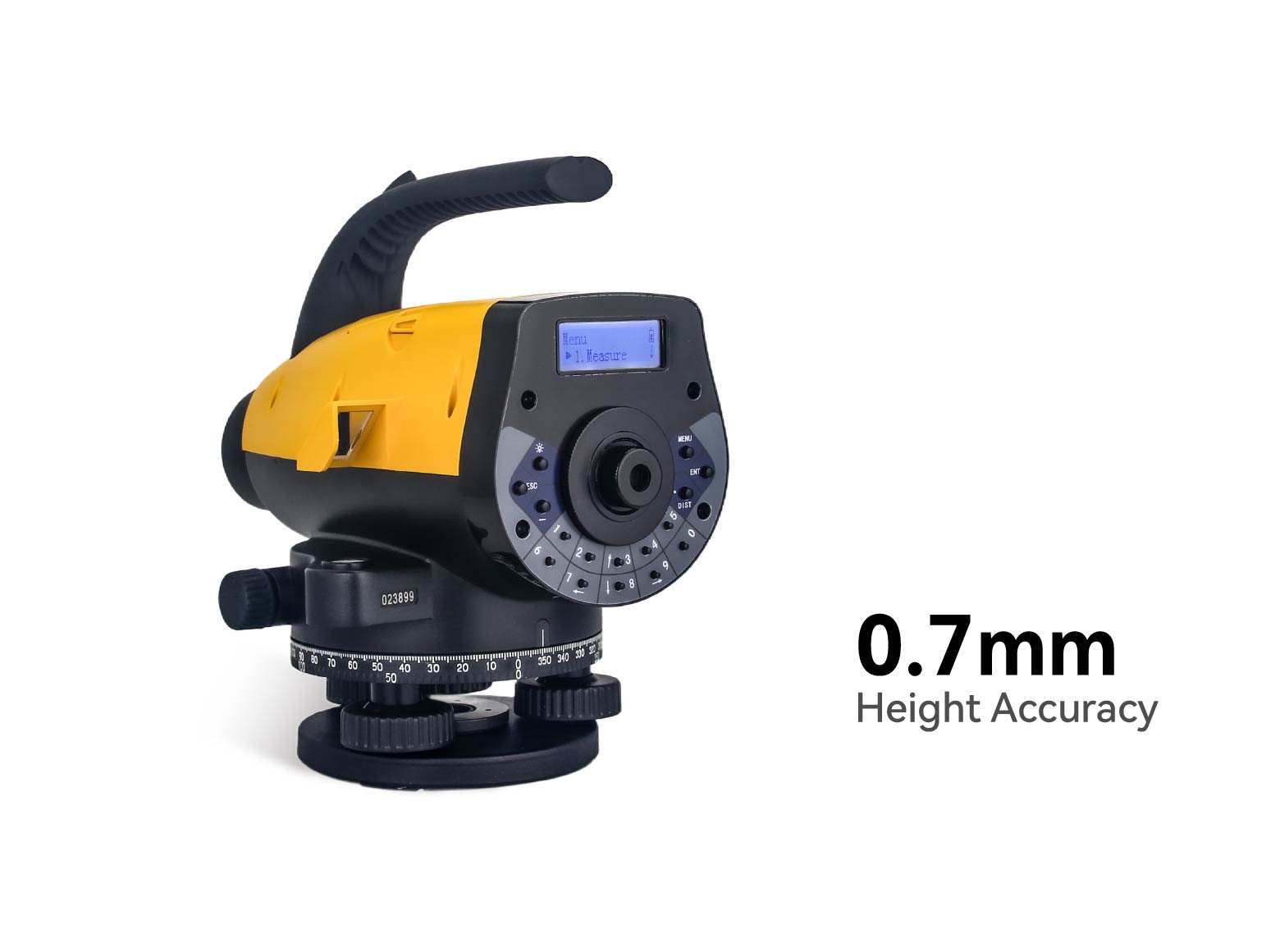

High-Accuracy Leveling

With a digital height accuracy of 0.7 mm per 1 km double-run, the DL07 ensures precise, repeatable results for demanding leveling tasks in construction and engineering.

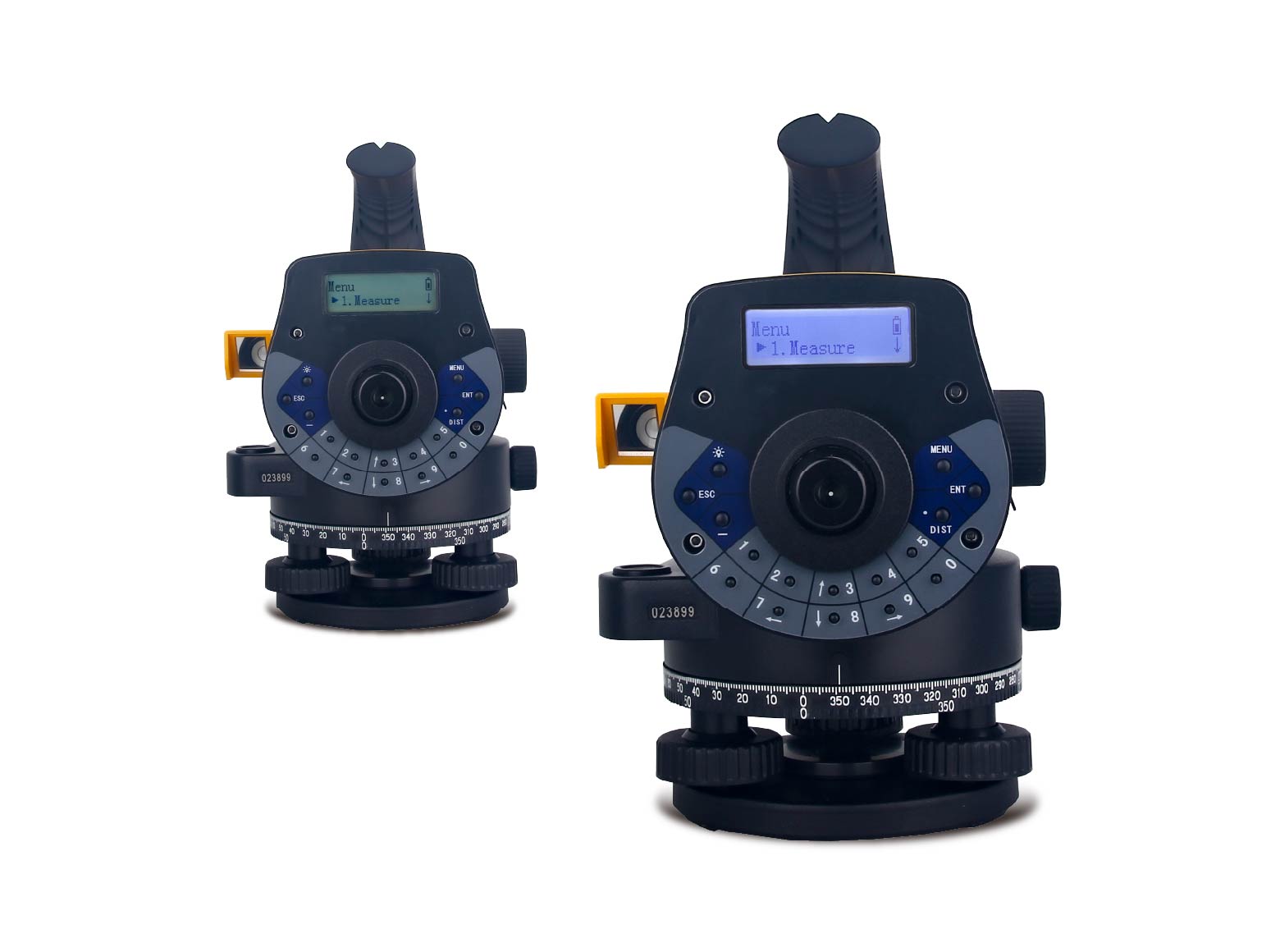

Illuminated LCD & Easy Operation

Equipped with a 160×64 dpi LCD and backlight function, the DL07 offers clear readings even in low-light conditions. The simple software interface ensures smooth and efficient field operation.

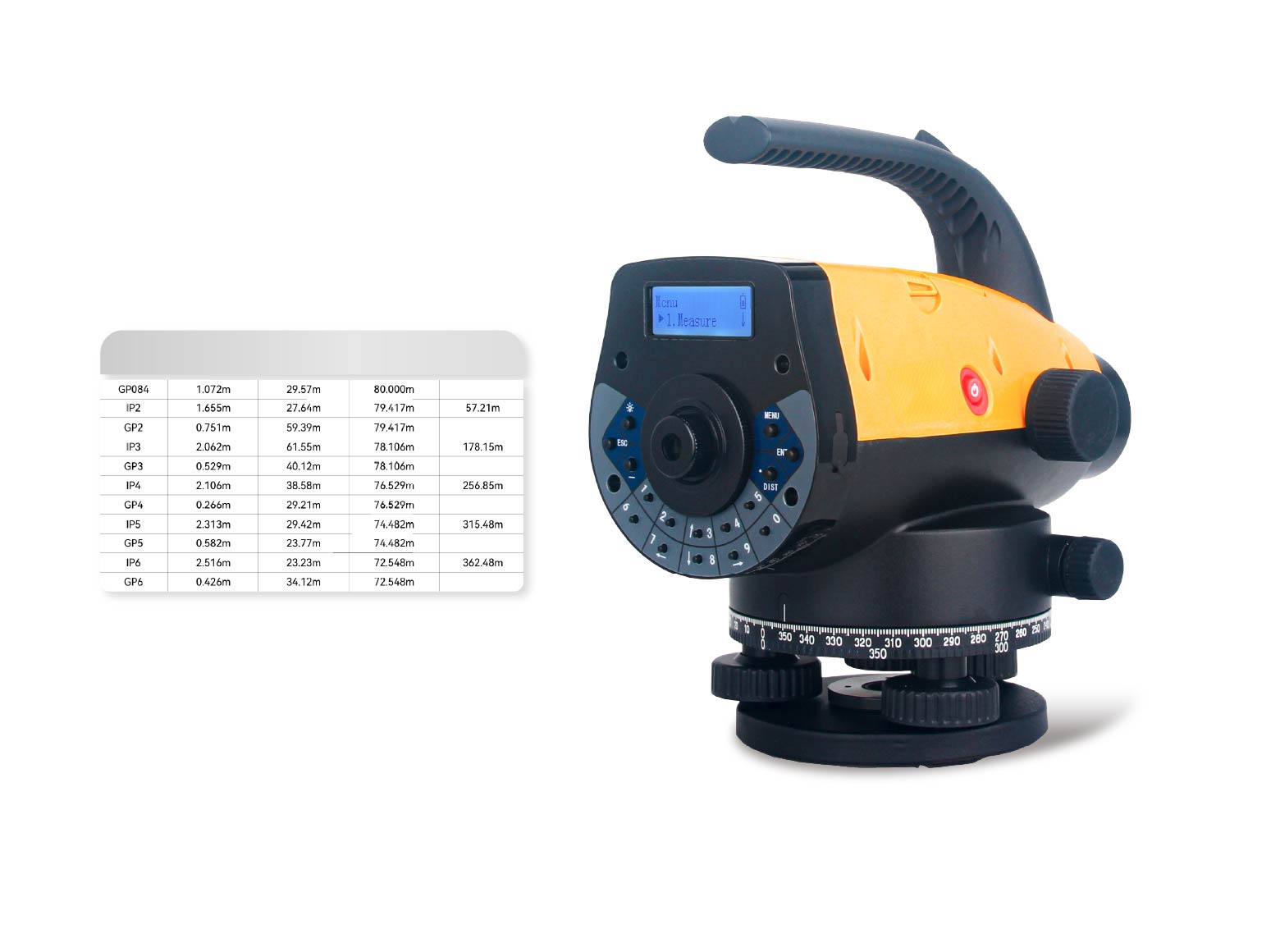

Electronic Reading & Auto Report

The DL07 performs fast digital readings with automatic data logging and one-click report generation, eliminating human error and increasing field efficiency by over 50%.

High-Accuracy Leveling

Illuminated LCD

Auto Report

High-Accuracy Leveling

With a digital height accuracy of 0.7 mm per 1 km double-run, the DL07 ensures precise, repeatable results for demanding leveling tasks in construction and engineering.

Illuminated LCD & Easy Operation

Equipped with a 160×64 dpi LCD and backlight function, the DL07 offers clear readings even in low-light conditions. The simple software interface ensures smooth and efficient field operation.

Electronic Reading & Auto Report

The DL07 performs fast digital readings with automatic data logging and one-click report generation, eliminating human error and increasing field efficiency by over 50%.

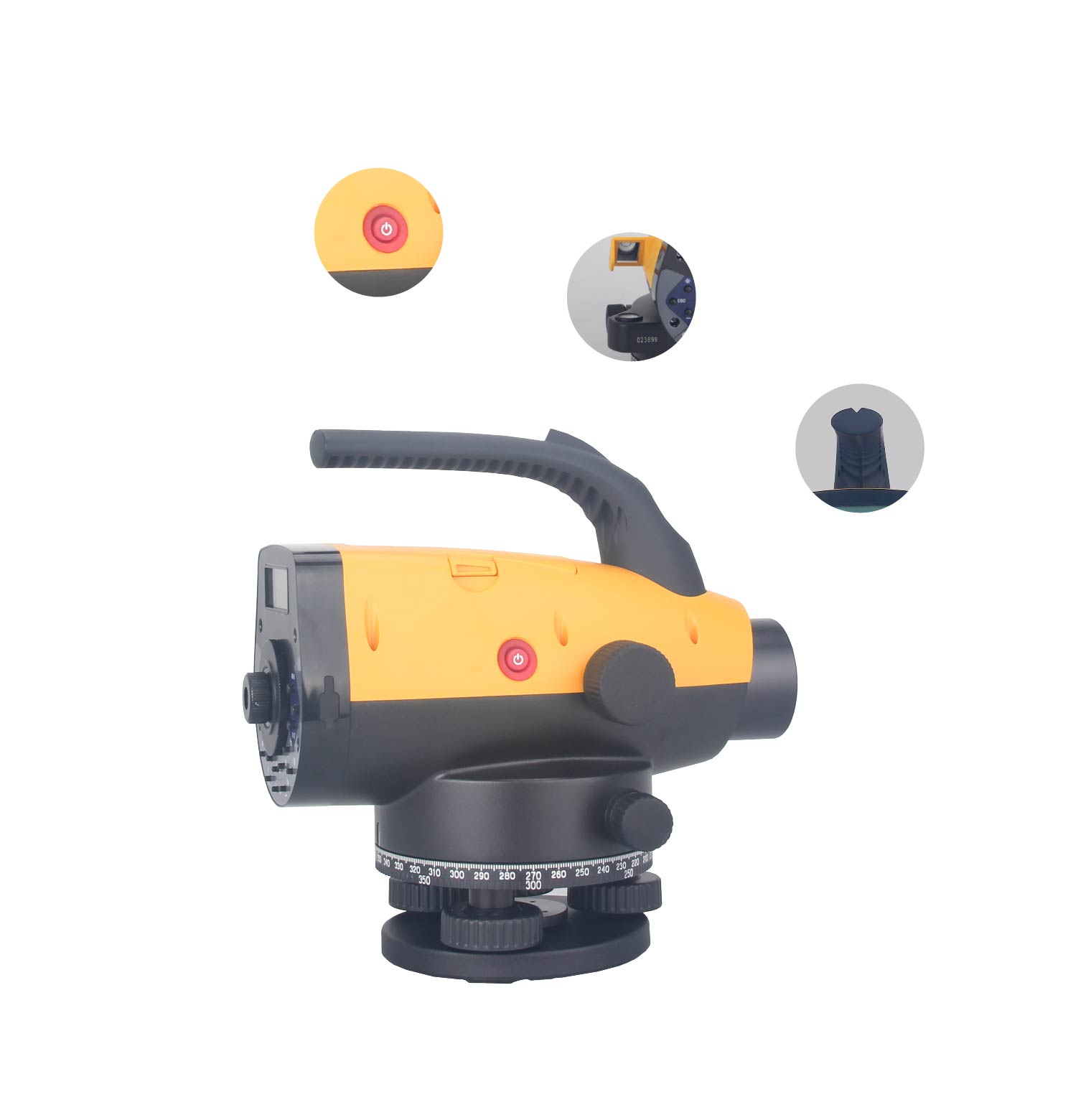

User-Friendly Design

Ergonomic handle with anti-slip grip, built-in bubble mirror for easier leveling observation, and a side-positioned manual measurement button make field operation comfortable and efficient.

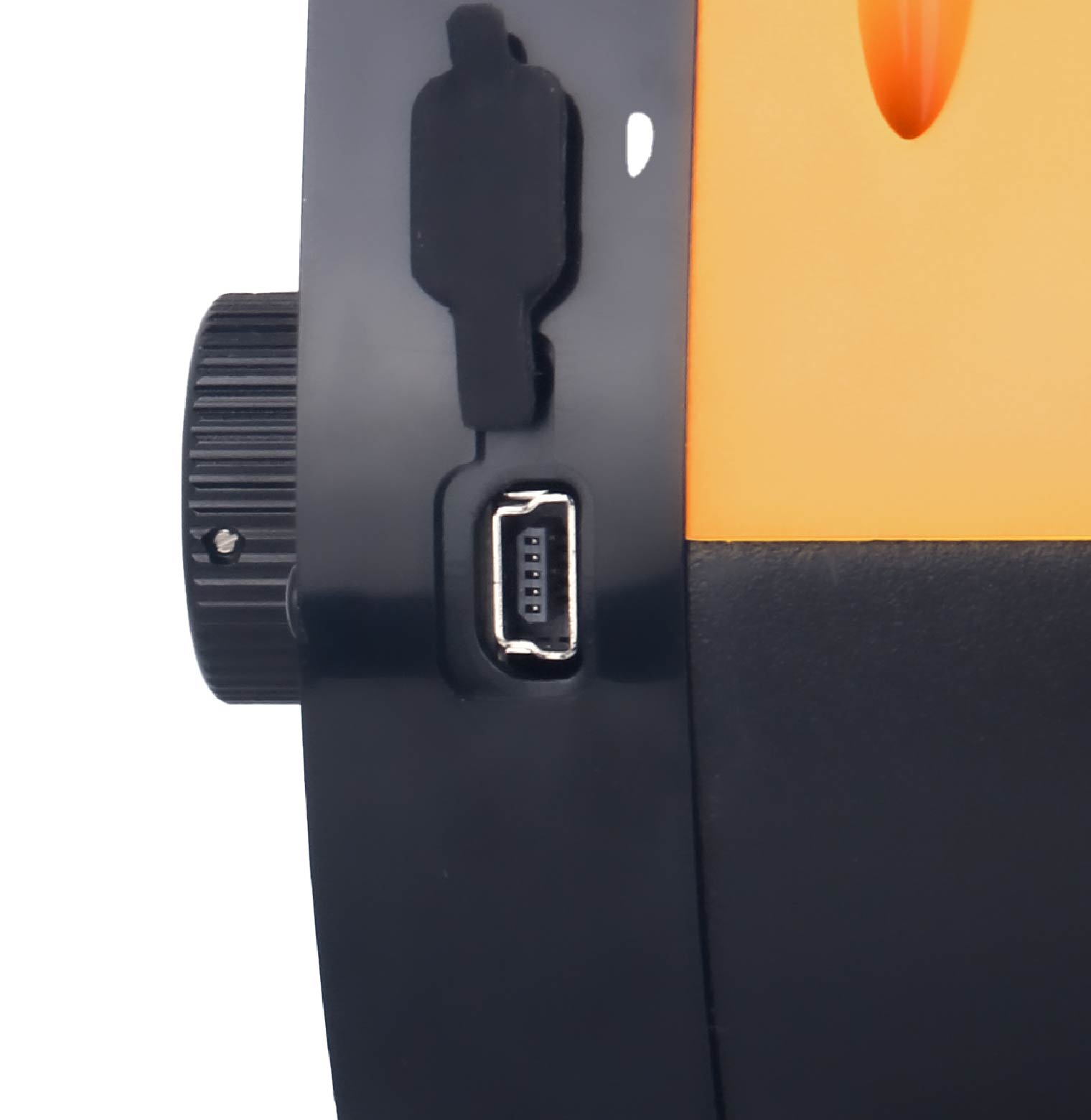

Flexible Storage & Export

Built-in memory stores up to 20,000 points, and data can be exported via USB cable or MicroSD card — with support for conversion between the two formats.

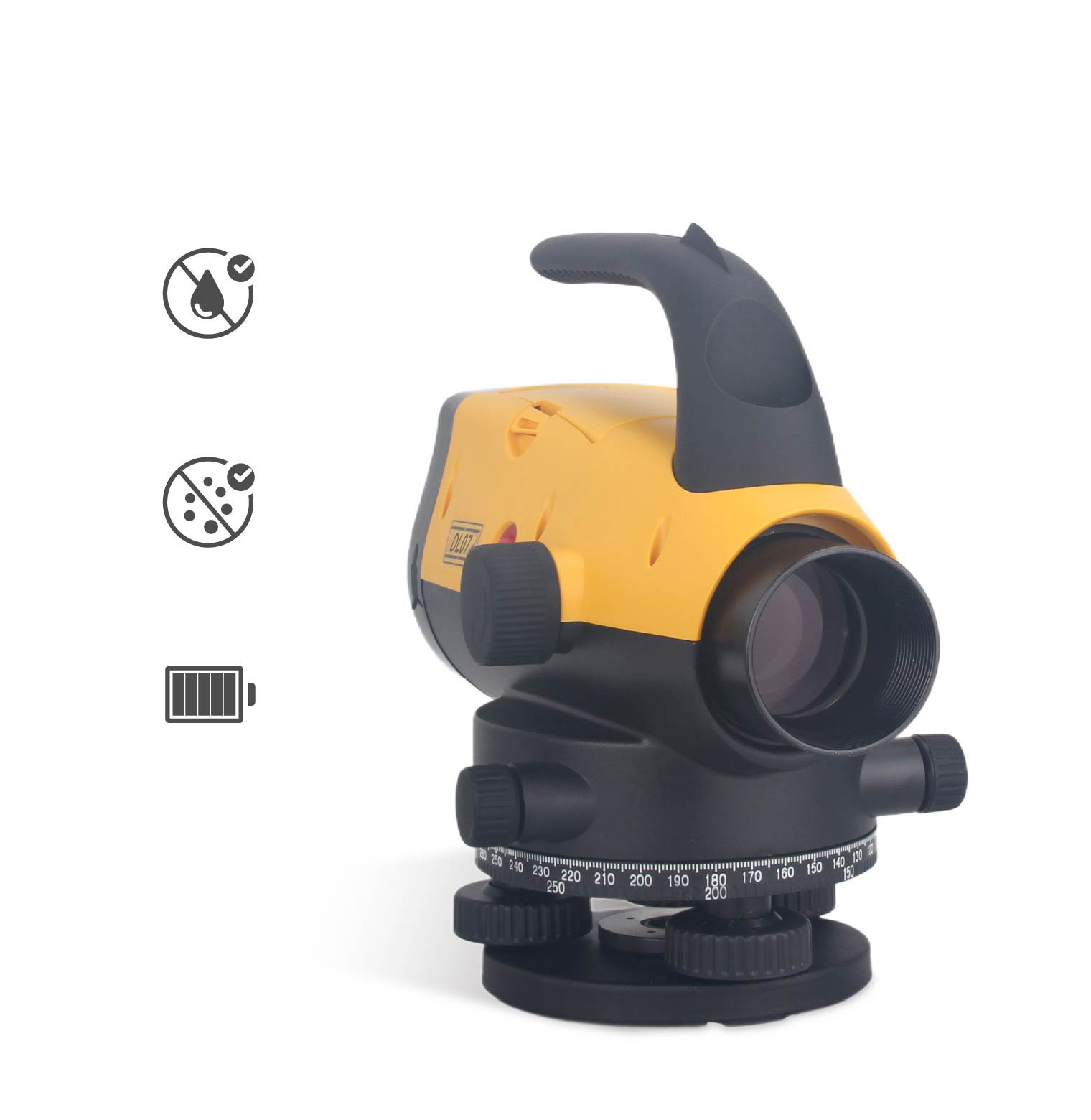

Rugged & Reliable

Designed with waterproof and dustproof design, the DL07 resists dust and water splashes. A 16-hour battery life and auto power-off function ensure extended, worry-free usage.

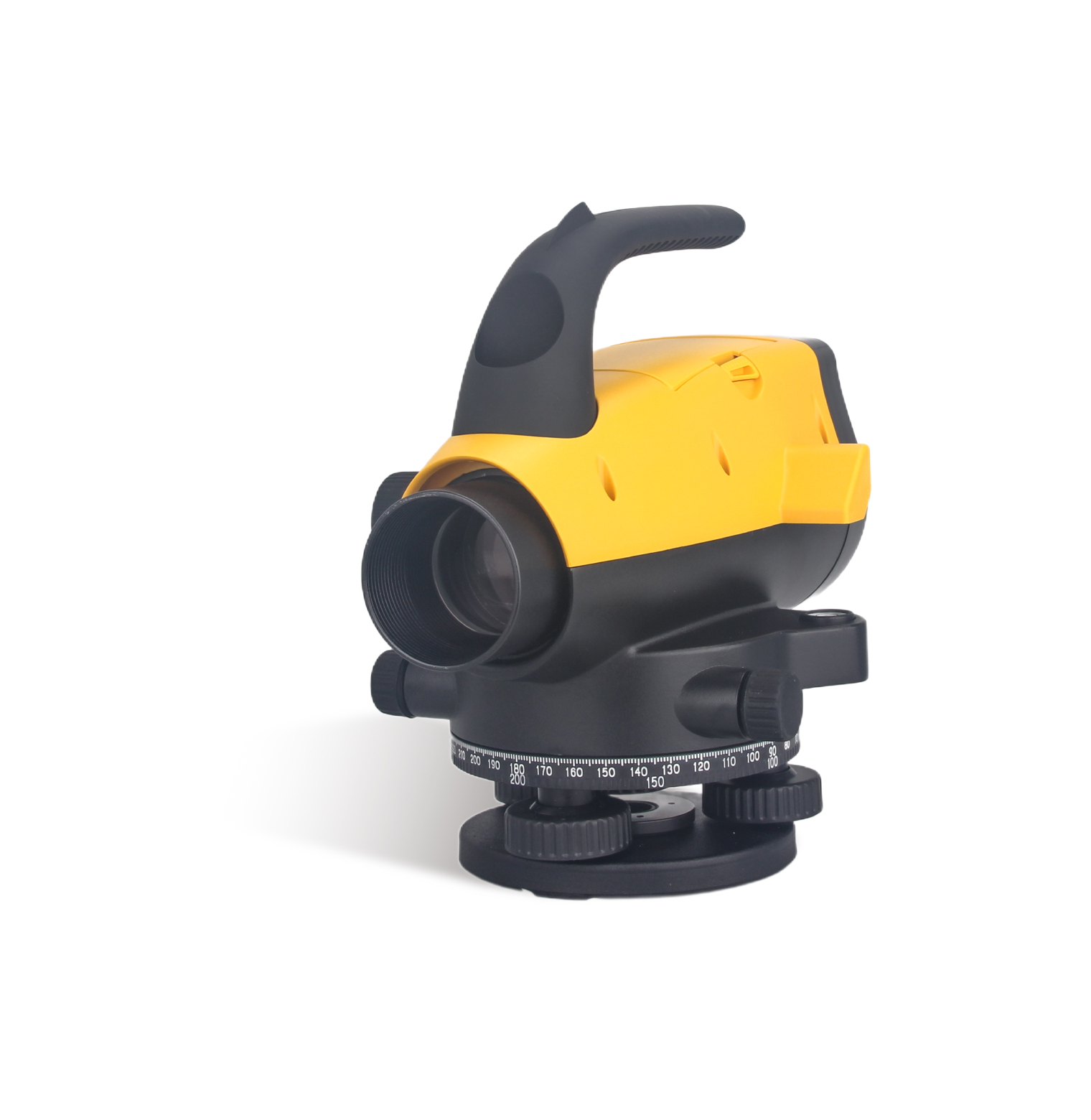

Magnetic-Damped Compensator

Features a ±12' magnetic compensator with 0.3″/1' accuracy, improving stability and reducing manual adjustment errors in the field.

Industries & Applications

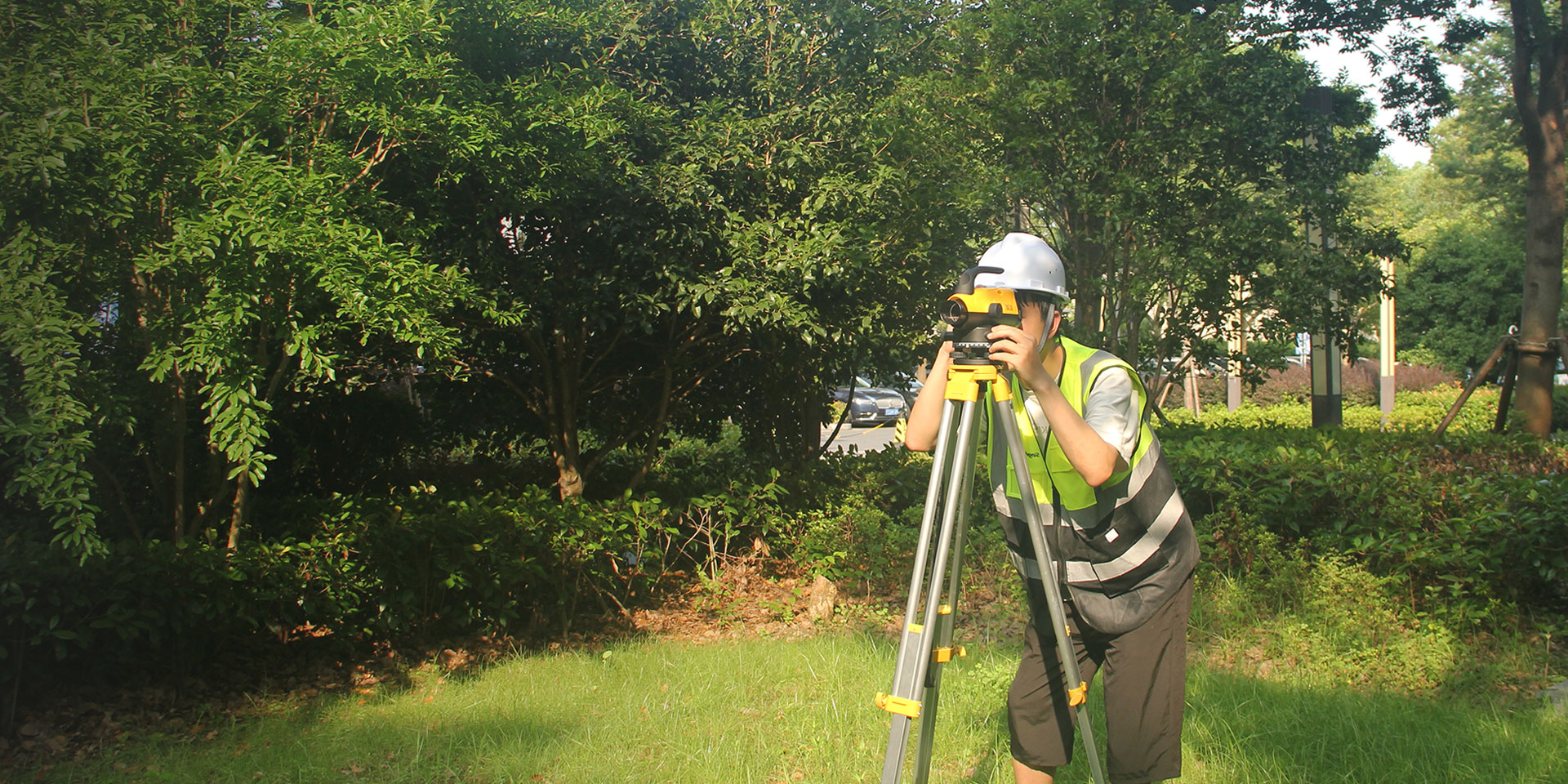

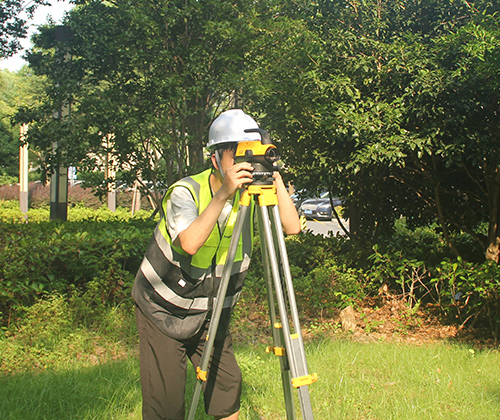

Leveling Survey

Specifications

Resources

GENERAL

Height Accuracy
(standard deviation for 1km double run leveling)

- Digital reading: 0.7 mm
- Optical reading: 1.5 mm

Distance Accuracy

- D≤10m: 10mm;
- D>10m: D*0.001

Distance Range

1.5m - 105m

Minimum Display

- Height difference: 0.01mm/0.1mm
- Distance: 0.1cm

Measuring Time

Within 3s in normal condition

PHYSICAL & ENVIRONMENTAL

Display

160*64dpi LCD with illumination

Dimension

230mm×150mm×210mm

Weight

2.5kg

Working temperature

-20°C ~ +50°C

Waterproof & dustproof

IP54
