SV100 INS
GNSS RECEIVER

GNSS+INS, Stay Precise When Signals Loss

Become a Dealer

Home

Products

SV100 INS
GNSS RECEIVER

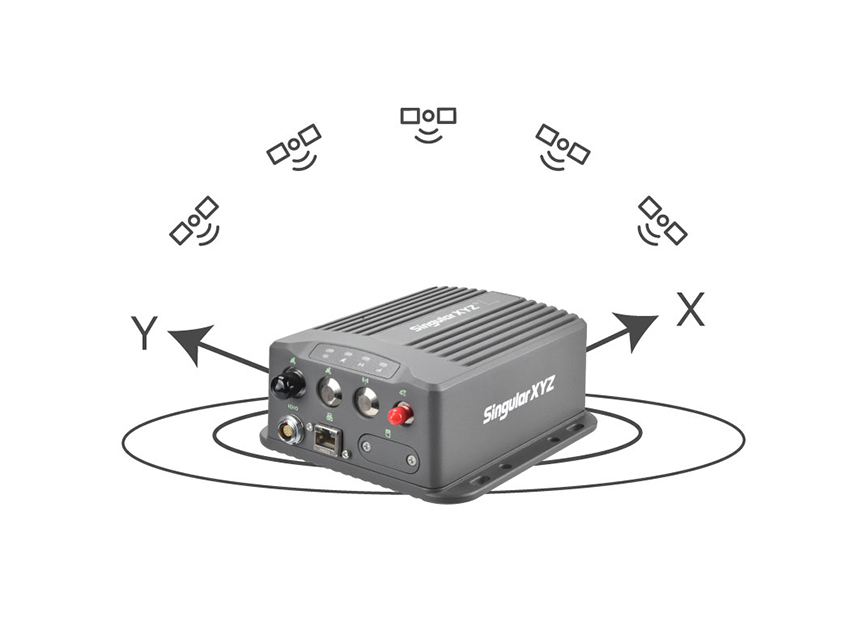

GNSS + INS Fusion

Combining full-constellation GNSS and inertial navigation data, the SV100 INS uses a tightly coupled algorithm to overcome signal obstructions in urban canyons and forests, achieving centimeter-level accuracy for reliable performance in challenging environments.

Precise When Signals Loss

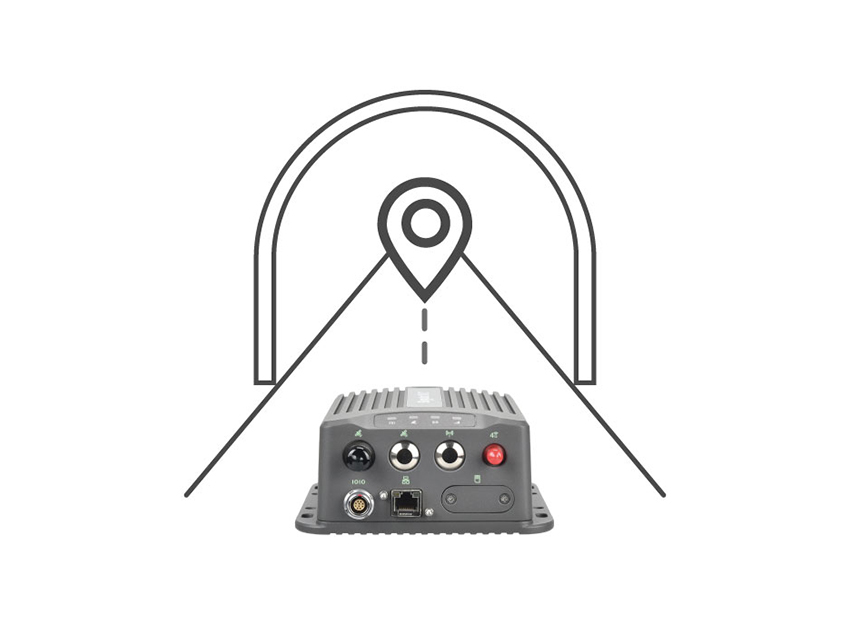

With a high-performance 6-axis IMU and next-gen fusion engine, the SV100 INS continues to deliver precise position, velocity, and orientation data even when GNSS signals are weak or blocked—such as in tunnels, ports, or under elevated roads.

Built-in Web Interface

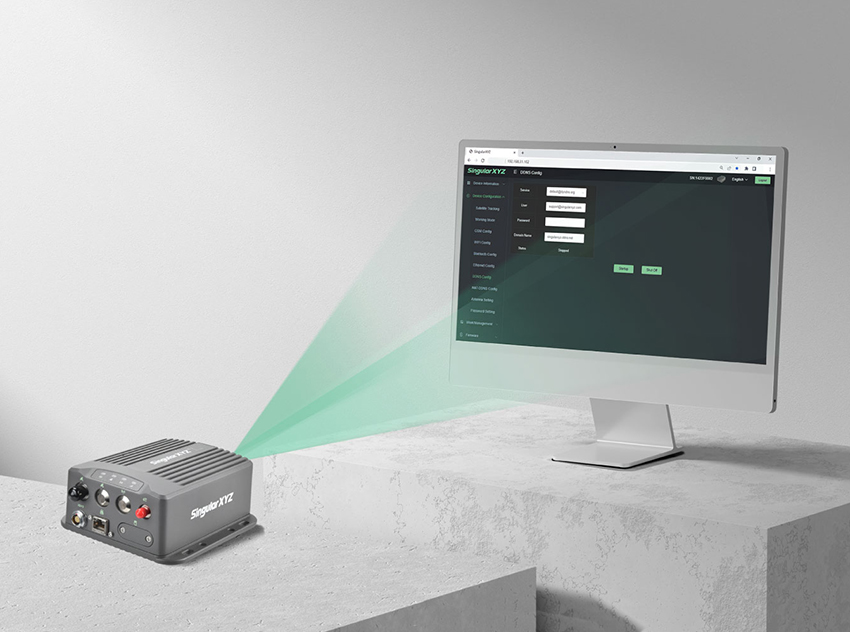

A user-friendly and comprehensive web interface allows quick setup, mode selection, and status monitoring. Easily configure and manage your device without extra software.

GNSS + INS Fusion

Precise When Signals Loss

Built-in Web Interface

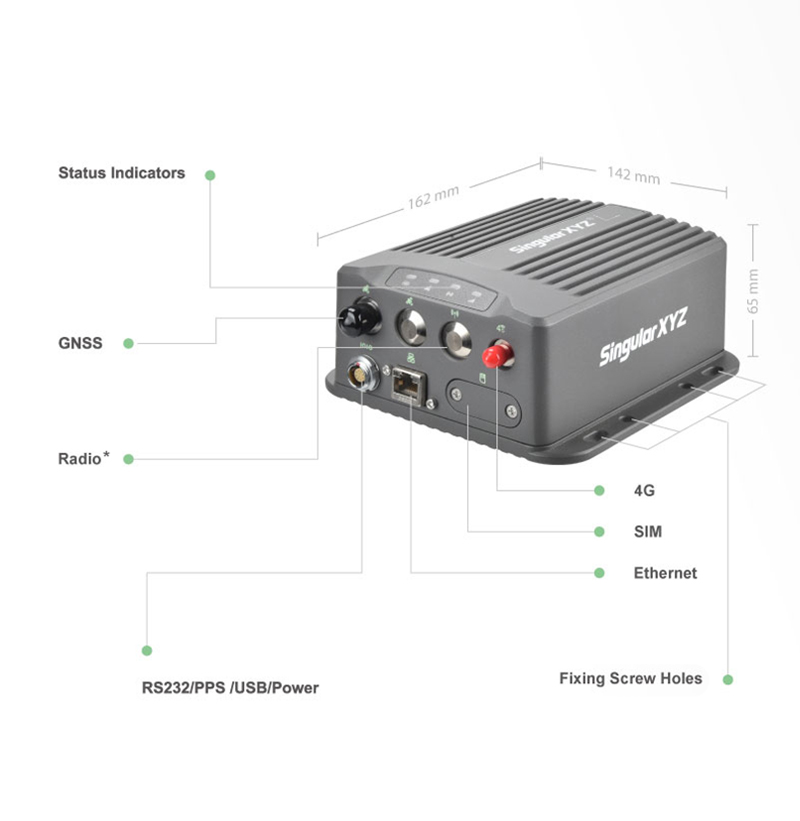

Versatile Communication

Supporting 4G and UHF* for correction data input and RS232, USB, 4G, or LAN for navigation data output, the SV100 INS ensures flexible integration with external systems and various working conditions.

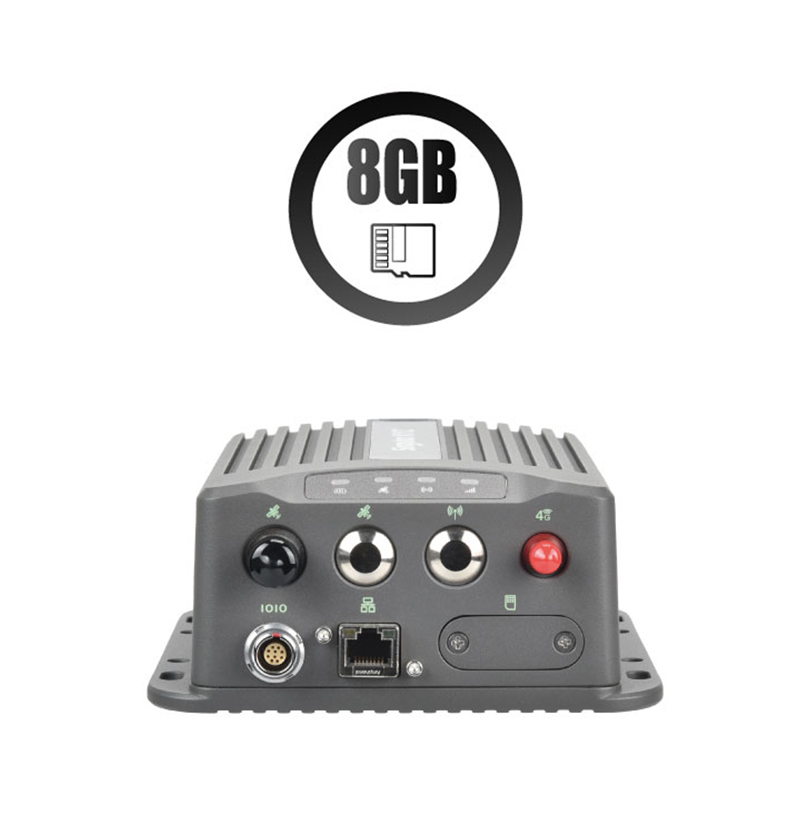

Onboard Data Storage

Equipped with 8GB internal memory (expandable to 32GB), the SV100 INS supports loop recording of GNSS and INS data for reliable, long-duration operation and post-processing flexibility.

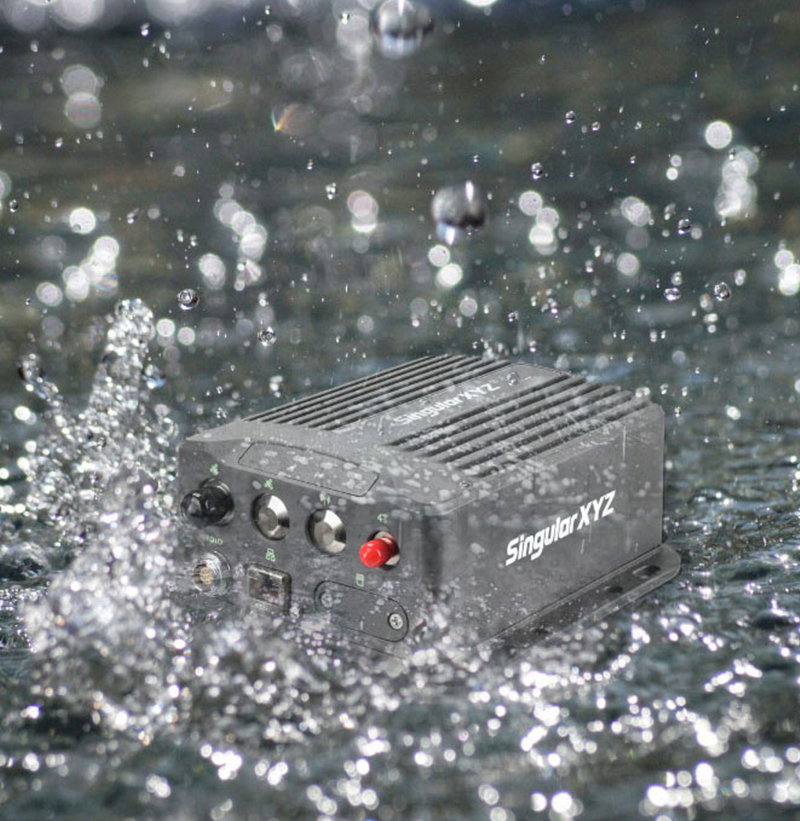

Rugged Housing

The IP67-rated, aluminum-alloy housing with MIL-STD-810 anti-vibration design ensures the SV100 INS performs reliably in tough field environments and demanding work conditions.

Industries & Applications

Vehicle Navigation

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

INS PERFORMANCE

IMU Type

MEMS

Gyroscope

- Bias Repeatability: 0.4°/h
- Range: ±350°/s
- Bias Instability: 1.6°/h (XY), 1.3°/h (Z)
- Angle Random Walk: 0.08°/√h (XY), 0.08°/√h (Z)

Accelerometer

- Range: ±8g
- Bias Repeatability: 15 mg
- Bias Instability: 16 μg
- Velocity Random Walk: 35 mm/s/√h

IMU data update rate

100Hz

GENERAL

Size

162×142×65 mm, including connectors

Weight

1.05 kg without battery

Housing material

Aluminum alloy

Waterproof & dustproof

IP67

Storage

8 GB, support loop recording
