SingularXYZ Intelligent Technology

X1 LITE
GNSS RECEIVER

A Cost-effective Choice For Professional Surveying

Become a Dealer

Home

Products

X1 LITE
GNSS RECEIVER

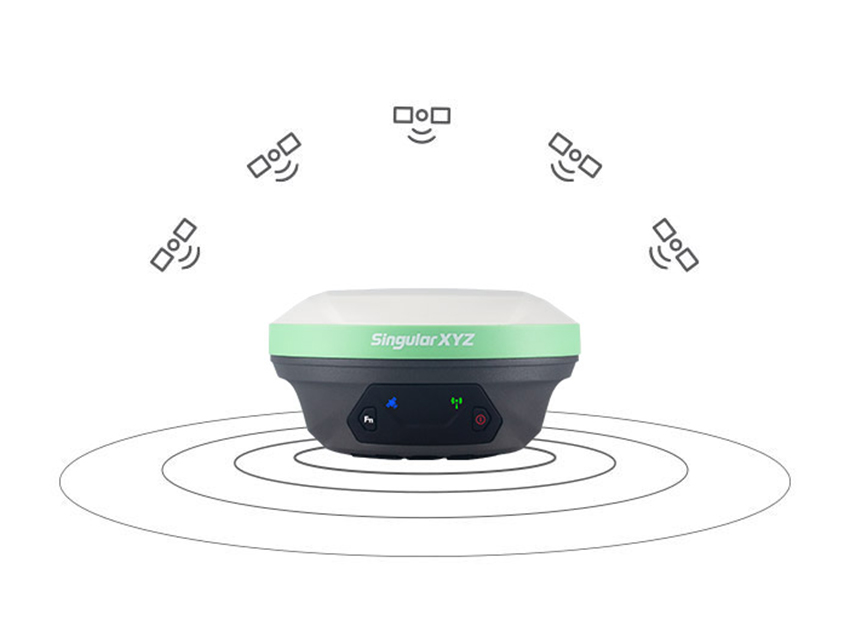

Full-Constellation, Fixed in Seconds

Full-constellation tough signal tracking, robust anti-interference and advanced RTK algorithm, X1 Lite takes only a few seconds to get a stable fixed solution even in challenging environments like multipath, tree canopy, city canyons, etc.

Ultra-Long Baseline

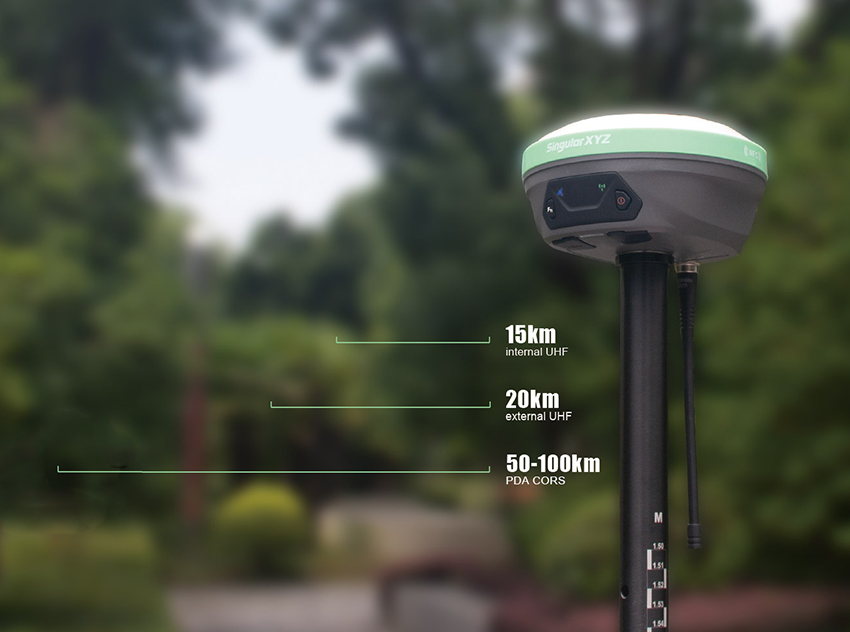

Supporting standard RTCM correction data transmission, in optimal conditions, X1 Lite can reach up to 15km range in enhanced internal UHF mode, 20km range in external mode and over 50km via PDA CORS mode.

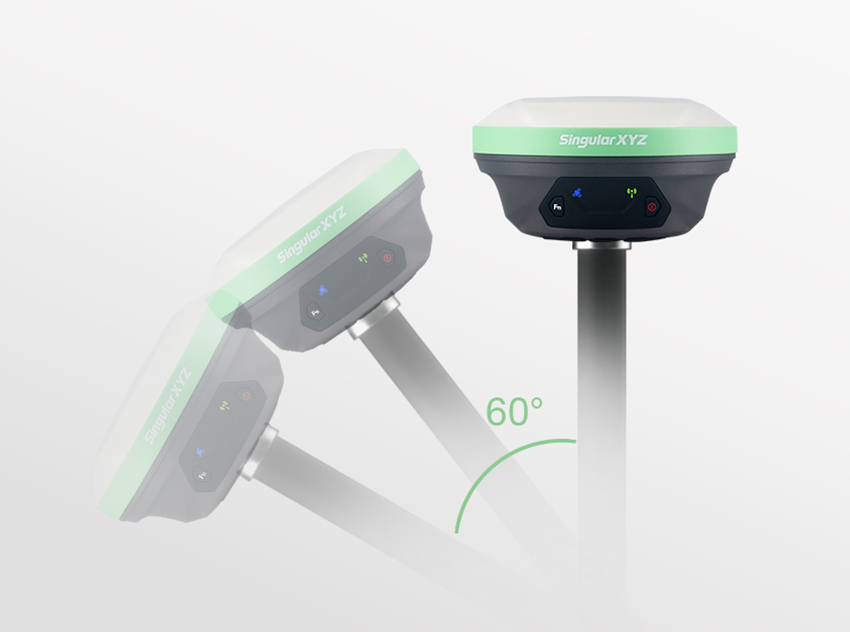

60° Tilt, 5s Initialization

Optimized with the new generation of IMU module, you can easily initialize the IMU in just 5 seconds and start tilt measurements up to 60°. One initialization can meet the accuracy requirement of ±2.5cm for the whole work.

Full-Constellation

Ultra-Long Baseline

60° Tilt Surveying

Smaller, Lighter

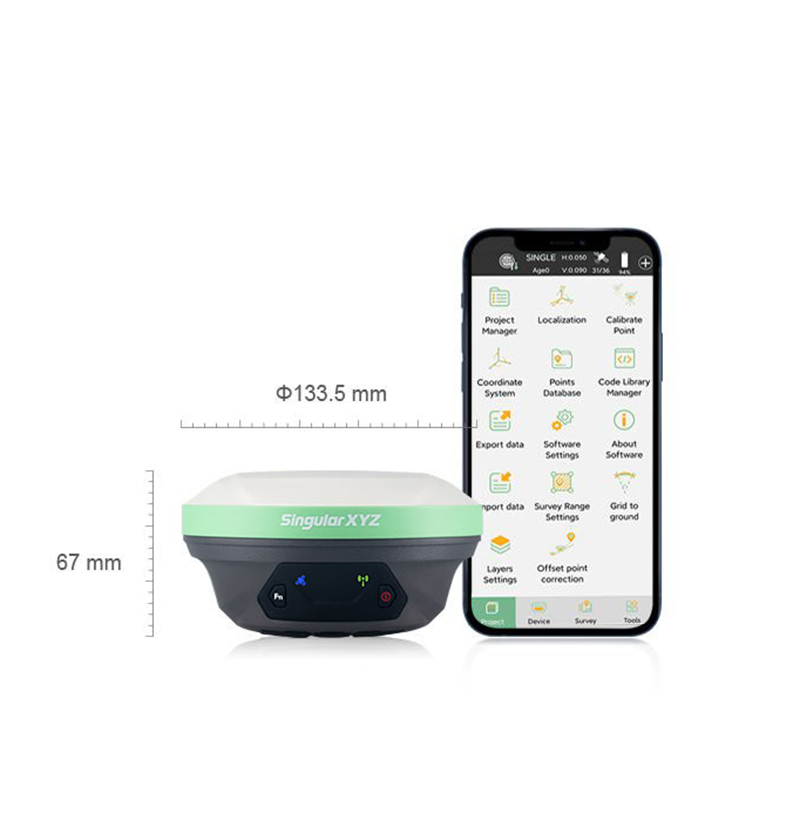

Does ultra-versatile mean heavy and bulky? X1 Lite GNSS receiver gives the best answer. With Φ133.5 mm × 67 mm palmed size and 870g light weight, X1 Lite largely lights your burden in while keeping your best surveying experience.

Abundant Transmission

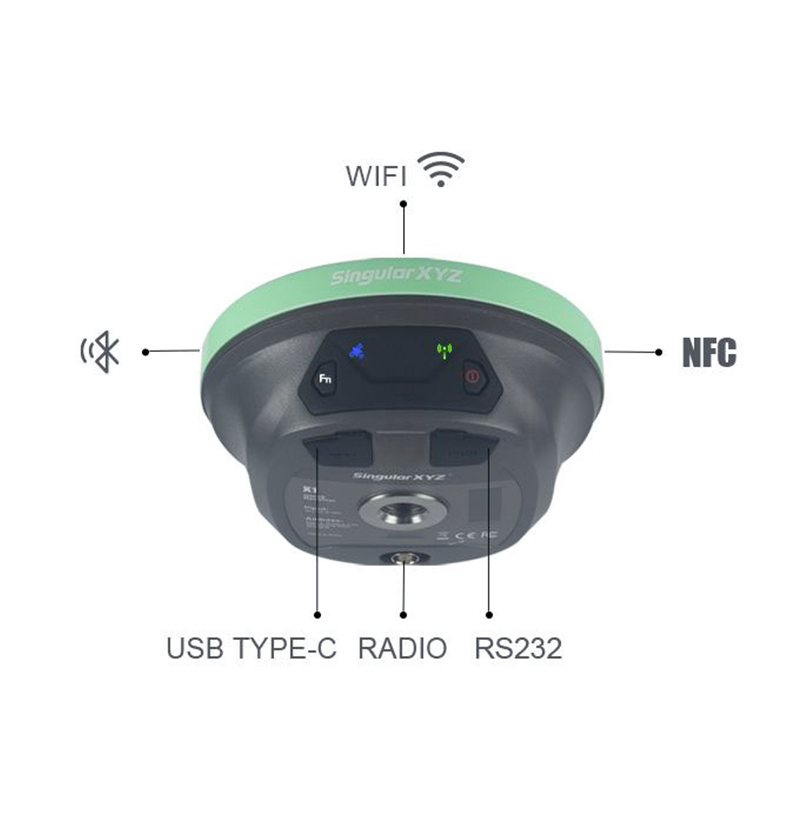

In order to meet different uses, X1 Lite has integrated with NFC/Bluetooth for quick connection, Type-C USB for charging & upgrade, WiFi for web page, TNC connector for internal UHF and RS232 serial port to connect with external radio.

Over 20hrs Operation

Quitting removable batteries, X1 Lite has optimized charging safety, waterproof capability and internal stacking design based on the internal battery design. 3hrs of fast charging via Type-C port can support over 20hrs continuous working time. It can also be charged via power bank, realize charging on-the-go.

Easy Download via Web UI

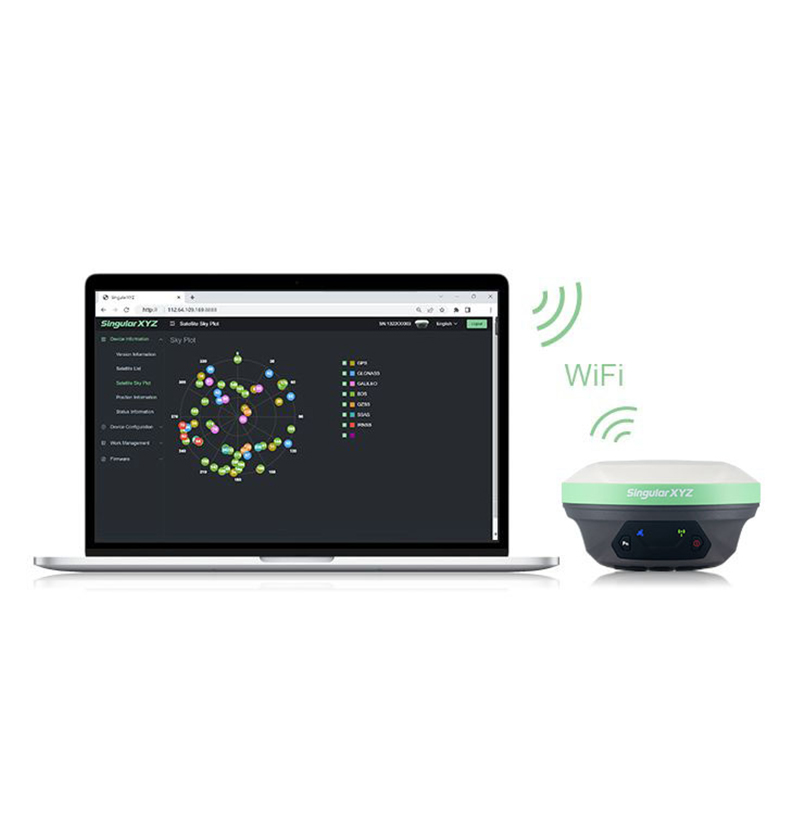

Accessed via the WiFi of X1 Lite, you can easily login the web page for static data download, firmware upgrade, device status check and configuration.

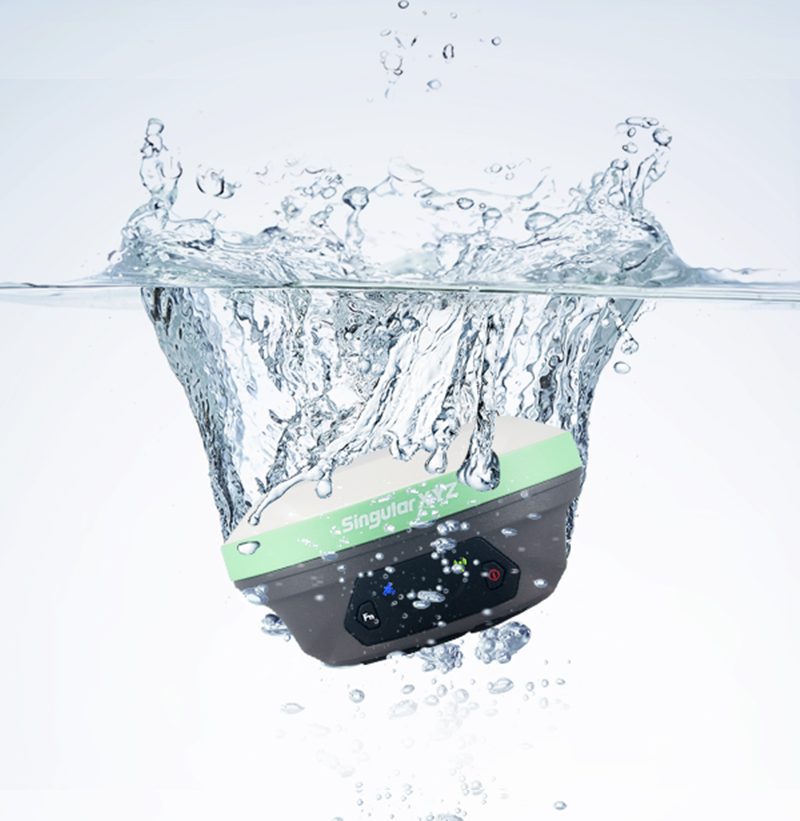

IP68 Durable Design

No matter it's rainy or dust weather, or you've accidently drop it onto the concrete or into the water, the durable housing of X1 Lite can always protect your device from damage.

Software & Platform

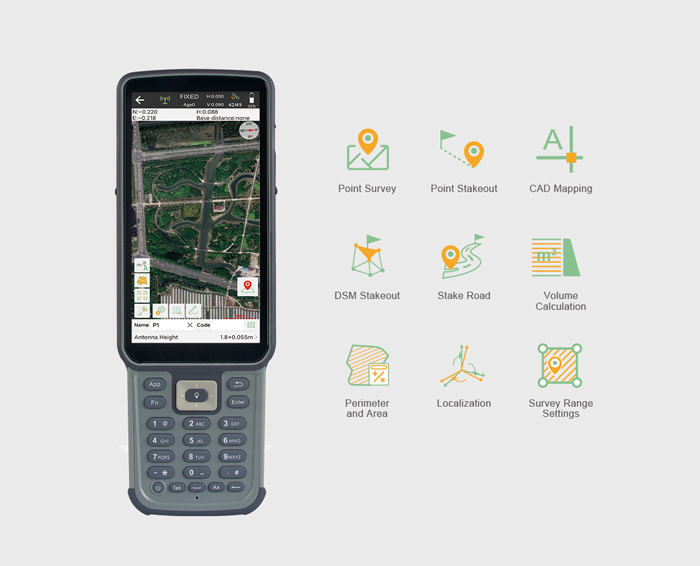

SingularPad Field Surveying Software

SingularPad is a professional field software that meets your versatile demands, which can be easily installed on Android devices.

Industries & Applications

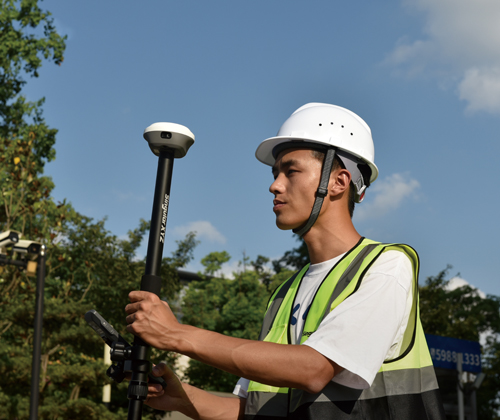

Land Surveying

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

RTK Accuracy

8mm+1ppm Horizontally
15mm+1ppm Vertically

GENERAL

WebUI

Accessible via Wi-Fi

Battery

6700 mAh, over 20 hours working time

Size

Φ133.5 mm × 67 mm

Weight

870 g

Waterproof & Dustproof

IP68

COMMUNICATION

UHF modem

Up to 15km with optimal conditions

Bluetooth

BT4.0 dual mode

NFC

Support

WiFi

802.11 a/b/g/n/ac

Interface

- 1 7-pin lemo port for RS232
- 1 TNC connector for UHF antenna
- 1 Type-C USB port
