X1 GNSS RECEIVER

Smaller, But More Versatile

Become a Dealer

Home

Products

X1 GNSS RECEIVER

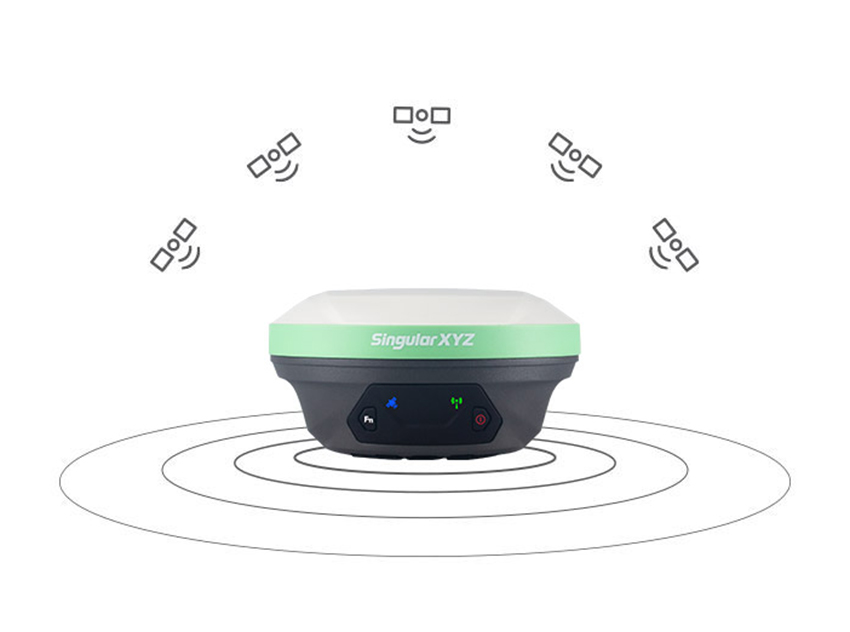

Full-Constellation, Fixed in Seconds

Full-constellation tough signal tracking, robust anti-interference and advanced RTK algorithm, X1 takes only a few seconds to get a stable fixed solution even in challenging environments like multipath, tree canopy, city canyons, etc.

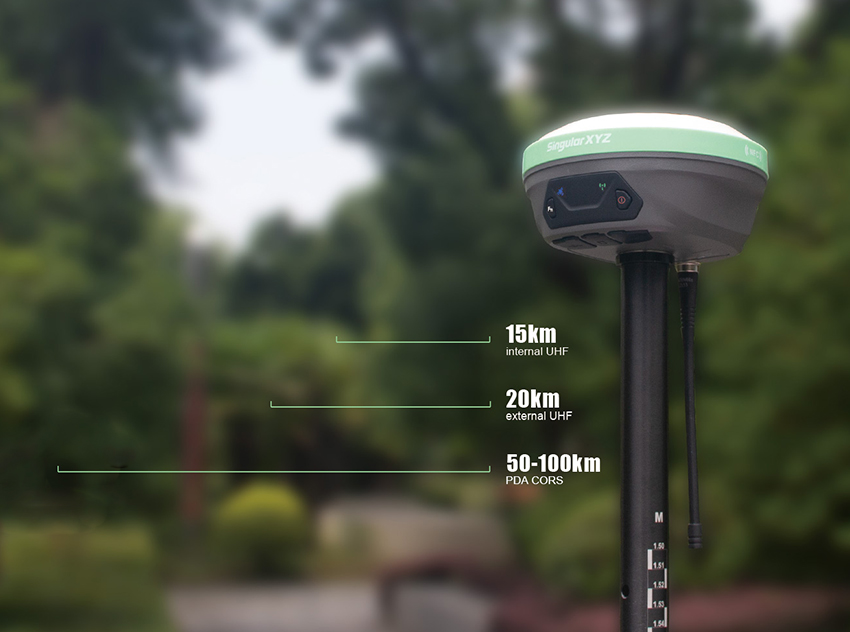

Ultra-Long Baseline

Supporting both 4G/radio correction data transmission, in optimal conditions, X1 can reach up to 15km range in enhanced internal UHF mode, 20km range in external mode and up to 50km via internal GSM or PDA CORS mode.

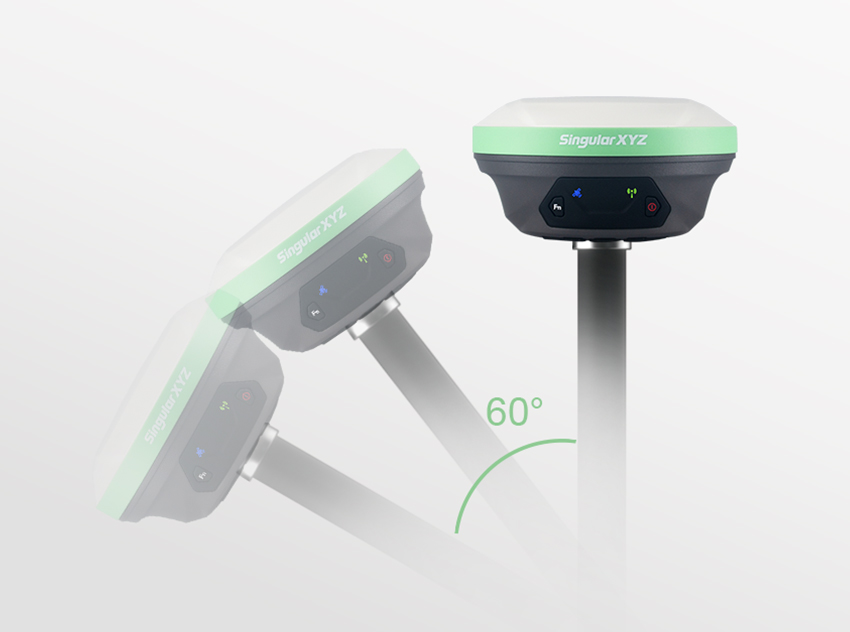

60° Tilt, 5s Initialization

Optimized with the new generation of IMU module, you can easily initialize the IMU in just 5 seconds and start tilt measurements up to 60°. One initialization can meet the accuracy requirement of ±2.5cm for the whole work.

Full-Constellation

Ultra-Long Baseline

60° Tilt Surveying

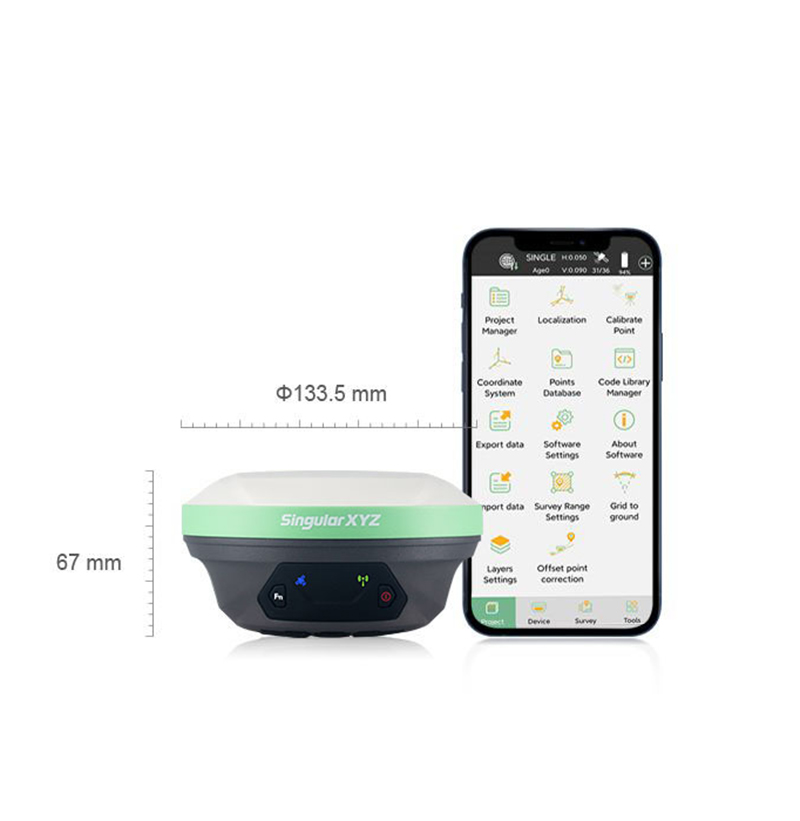

Smaller, Lighter

Does ultra-versatile mean heavy and bulky? X1 GNSS receiver gives the best answer. With Φ133.5 mm × 67 mm palmed size and 870g light weight, X1 largely lights your burden in while keeping your best surveying experience.

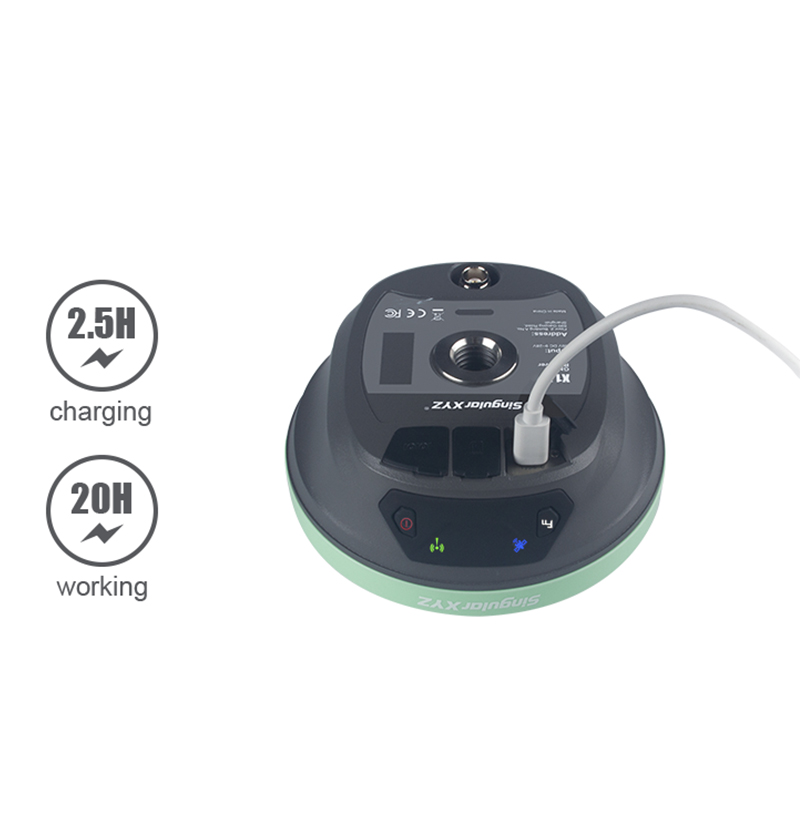

Over 20hrs Operation

Quitting removable batteries, X1 has optimized charging safety, waterproof capability and internal stacking design based on the internal battery design. 3hrs of fast charging via Type-C interface can support over 20 hours continuous working time. It can also be charged via power bank, realize charging on-the-go.

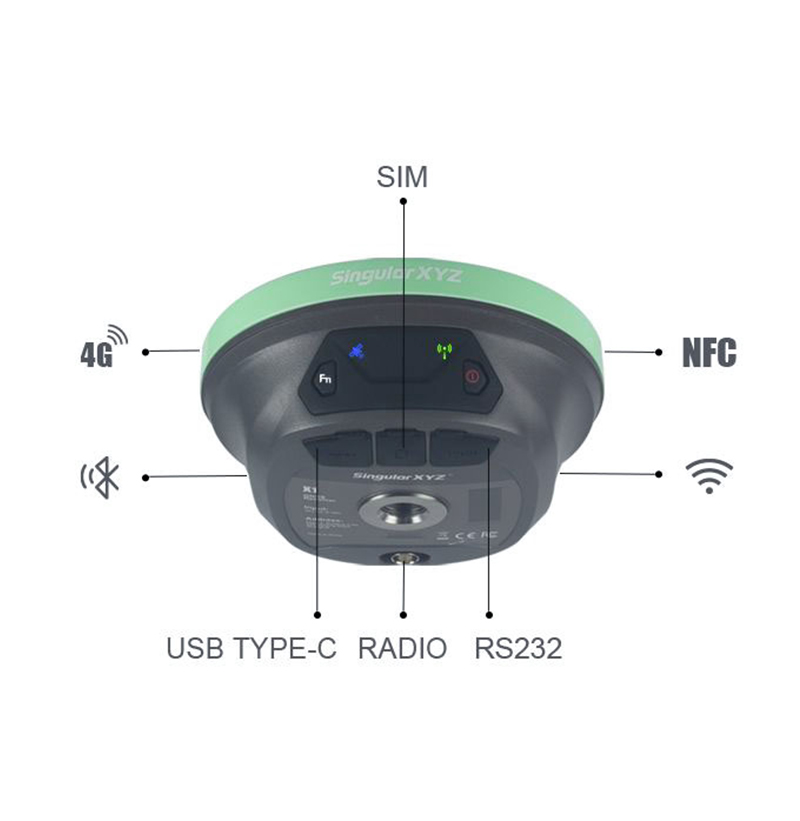

Abundant Transmission

In order to meet different uses, X1 has integrated with NFC/Bluetooth for quick connection, Type-C USB for charging & upgrade, TNC connector for internal UHF, RS232 serial port to connect with external radio and WiFi/4G.

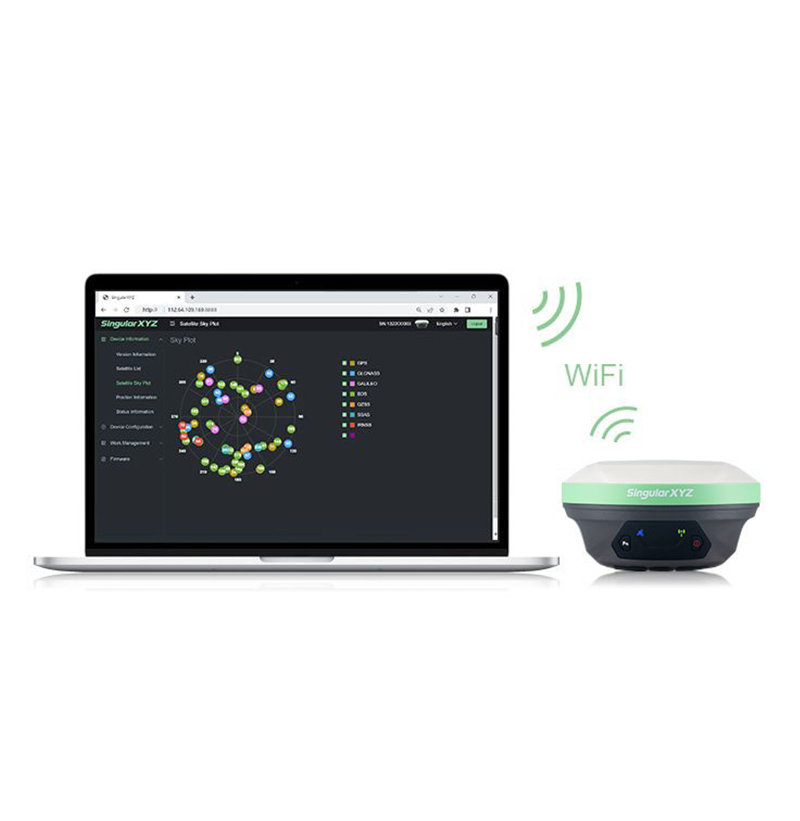

Easy Download via Web UI

Accessed via the WiFi of X1, you can easily login to the web page for static data download, firmware upgrade, device status check and configuration.

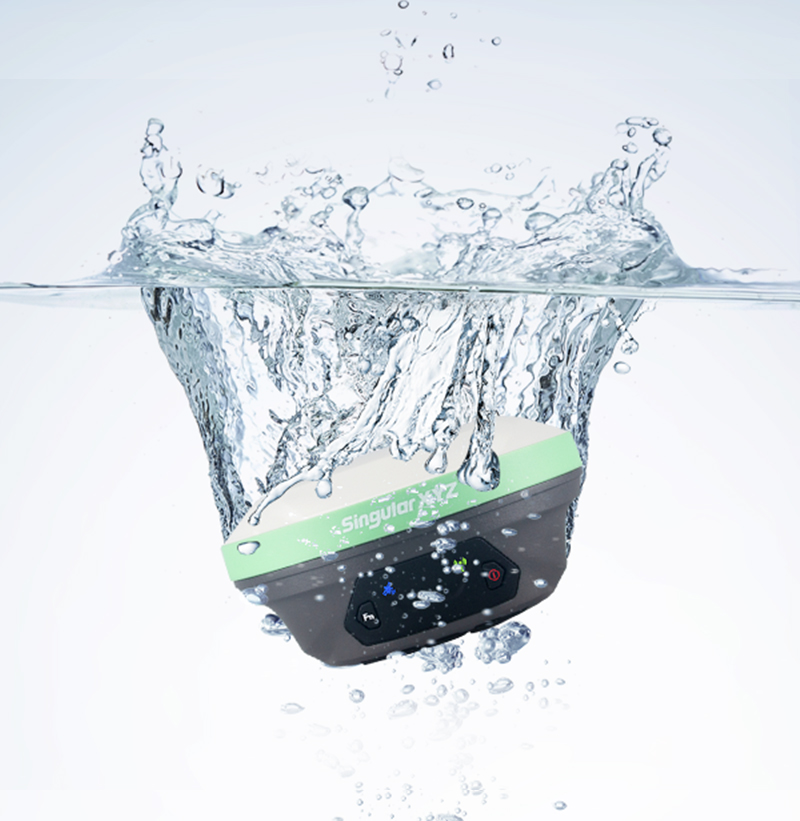

IP68 Durable Design

No matter it's rainy or dust weather, or you've accidently drop it onto the concrete or into the water, the durable housing of X1 can always protect your device from damage.

Software & Platform

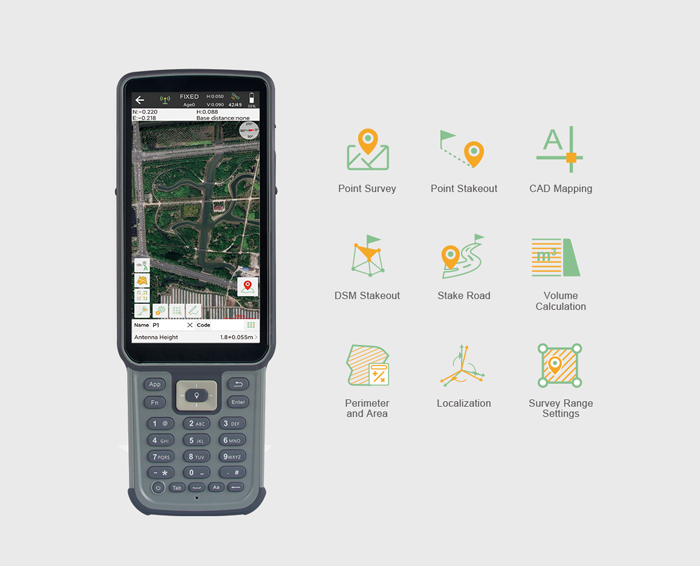

SingularPad Field Surveying Software

SingularPad is a professional field software that meets your versatile demands, which can be easily installed on Android devices.

Industries & Applications

Land Surveying

Specifications

Resources

SATELLITES TRACKING

Channels

1408

BDS

B1I, B2I, B3I, B1C, B2a, B2b

GPS

L1C/A, L1C, L2C, L2P(Y), L5

GLONASS

G1, G2, G3

Galileo

E1, E5a, E5b, E6

QZSS

L1C/A, L1C, L2C, L5

RTK Accuracy

8mm+1ppm Horizontally
15mm+1ppm Vertically

COMMUNICATION

4G modem

Support

UHF modem

Up to 15km with optimal conditions

Bluetooth

BT4.0 dual mode

NFC

Support

WiFi

802.11 a/b/g/n/ac

Interface

- 1 7-pin lemo port for RS232
- 1 SIM card slot for 4G
- 1 TNC connector for UHF antenna
- 1 Type-C USB port

GENERAL

WebUI

Accessible via Wi-Fi

Battery

6700 mAh, over 20 hours working time

Size

Φ133.5 mm × 67 mm

Weight

870 g

Waterproof & Dustproof

IP68
