In our previous blog, we focused on the laser surveying capabilities of the Orion ONE visual and laser RTK receiver. Today, we’ll address more frequently asked questions, including laser surveying limitations, AR stakeout WiFi usage, and the overall performance of Orion ONE beyond its new features.

Q1: What types of surfaces work best for laser surveying? Are there any limitations?

The Orion ONE laser surveying performs best on smooth, solid surfaces with high reflectivity, such as concrete, asphalt, or metal. Light-colored or white surfaces tend to offer better accuracy compared to darker surfaces. However, the laser's performance can be limited on low-reflectivity surfaces like glass or liquids, which fail to reflect the laser effectively. For optimal results, ensure the target surface is stable and reflective.

Q2: Can I disable the WiFi connection after completing AR stakeout?

Yes, you can disconnect the WiFi once the AR stakeout is complete.

The Orion ONE supports both Bluetooth and WiFi connections:

• Bluetooth: Used for transmitting GNSS data and configuration commands.

• WiFi: Specifically utilized for AR stakeout, transmitting camera visual data at higher speeds than Bluetooth.

When using the AR stakeout function, SingularPad will prompt you to connect to the device's WiFi for image transmission. After disabling the AR function, the WiFi connection is no longer needed and can be turned off without affecting other operations.

Q3: What other performance advantages does Orion ONE have except for the new visual and laser function?

The Orion ONE is not only defined by its visual AR stakeout and laser surveying capabilities but also offers a range of enhanced performance features that set it apart from standard RTK receivers.

1. New Generation Platform

Orion ONE incorporates a next-generation platform with powerful processing capabilities:

• High-Performance Core:

• 4× ARM Cortex-A7, 1.5GHz

• 2T NPU for robust computing

• Advanced Video Support:

• 4K 30FPS video, H.264/H.265 encoding

• HDR and low-distortion multi-camera capabilities

• Efficient & Expandable:

• Low power consumption and versatile hardware interfaces

• Fast Connectivity:

• Dual-band WiFi (2.4G & 5G) with 150Mbps speed and low-latency transmission

2. Compact Yet Comprehensive Functionality

While shrinking the device to the palm size, Orion ONE provides an advanced GNSS engine, immersive AR stakeout, non-contact laser surveying, 60° tilt IMU, 15km enhanced UHF, and rich features to empower your tasks.

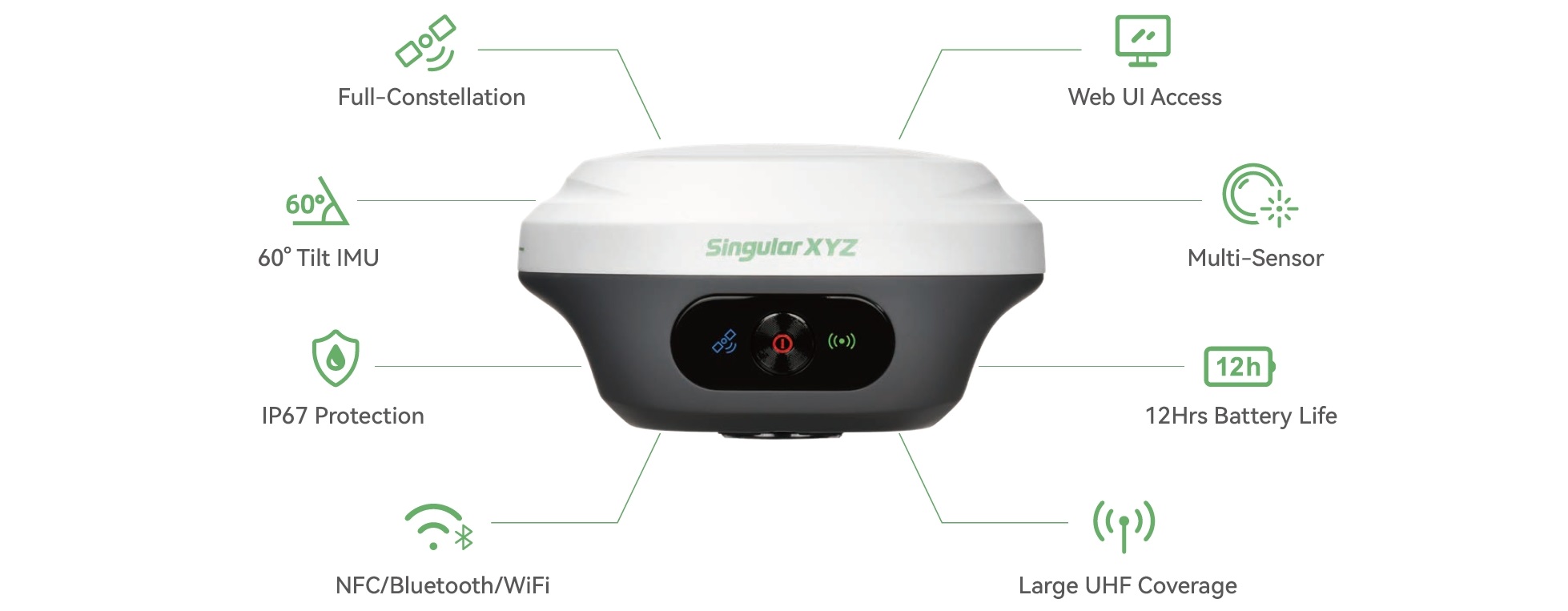

Learn more about Orion ONE visual & laser GNSS receiver,
https://www.singularxyz.com/Orion_ONE.html
