Tech Chat | Choose Your Right One - Exploring SingularXYZ GNSS Receiver Lineup

Home

Blog

Tech Chat | Choose Your Right One - Exploring SingularXYZ GNSS Receiver Lineup

2024-02-16

Chloe

Last year, we published a blog - "Tech Chat | Which RTK Rover is Right for you? – Differences between SingularXYZ Rovers" , aimed at assisting our users in choosing the ideal receiver by comparing key features and application areas of different models. Since then, we've introduced several new products in the past year. In this latest blog, let's delve deeper into a comprehensive comparison of all our GNSS receivers, exploring their unique features, functionalities, work modes, and application domains. Our goal remains the same: to help you make an informed decision and select the receiver that aligns best with your specific requirements.

For insights on selecting a receiver based on product parameters, revisit our earlier blog post:
Tech Chat | How To Choose A GNSS Receiver?

Comparison of SingularXYZ GNSS Receivers

GNSS Receiver Model	X1	X1 Lite	Y1	Sfaira ONE	Sfaira ONE Plus
Channels & Constellations	1408 channels GPS, BDS, GLONASS, Galileo, QZSS, IRNSS, SBAS	1408 channels GPS, BDS, GLONASS, Galileo, QZSS, IRNSS, SBAS	1598 channels GPS, BDS, GLONASS, Galileo, QZSS, IRNSS, SBAS	1408 channels GPS, BDS, GLONASS, Galileo, QZSS, SBAS	1408 channels GPS, BDS, GLONASS, Galileo, QZSS, SBAS
Supported Work Mode	Base, Rover	Base, Rover	Base, Rover	Rover	Rover
Communication	Bluetooth, 4G, Radio, WiFi, NFC, RS232, USB	Bluetooth, Radio, WiFi, NFC, RS232, USB	Bluetooth, 4G, Radio, WiFi, NFC, RS232, USB	Bluetooth, USB	Bluetooth, USB
Other Sensors	IMU Tilt	IMU Tilt	IMU Tilt	/	IMU Tilt
Main Advantages	Full functionality 15km enhanced internal UHF 20hrs battery	Full functionality 15km enhanced internal UHF 20hrs battery	Full functionality 15km enhanced internal UHF	Ultra-portable size Cost-effective	Ultra-portable size Cost-effective IMU tilt surveying
Main Applications	Land Surveying GIS Portable base for construction, agriculture, etc.	Land Surveying GIS Portable base for construction, agriculture, etc.	Land Surveying GIS Portable base for construction, agriculture, etc.	Handheld for GIS Land Surveying	Handheld for GIS Land Surveying

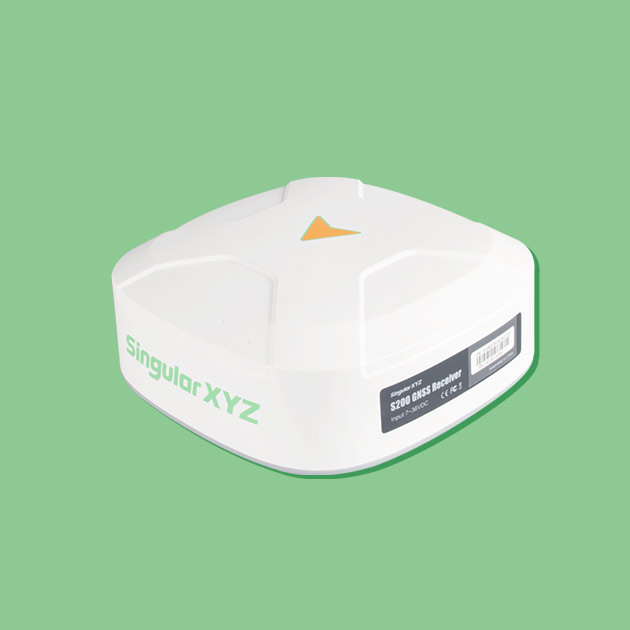

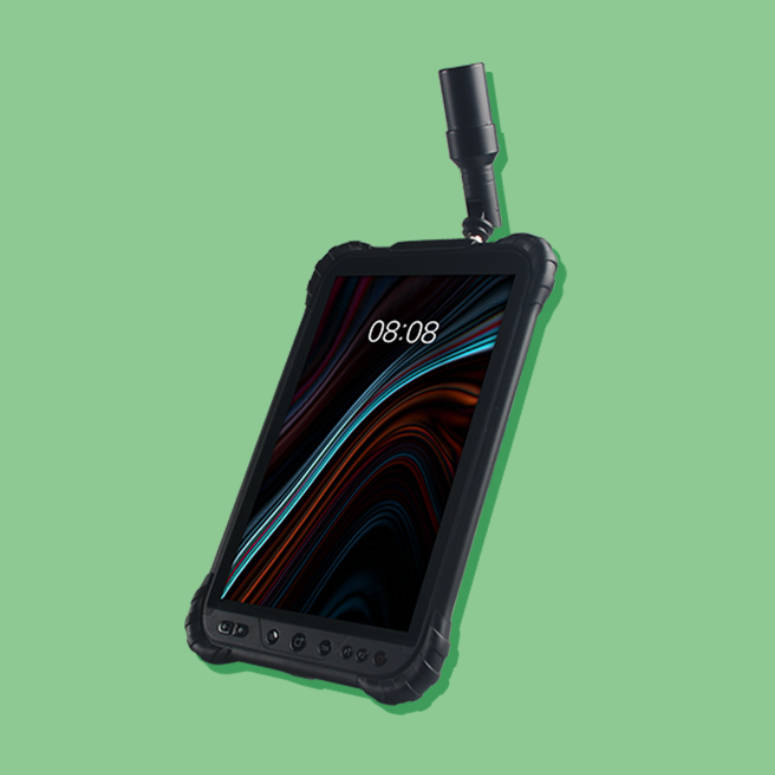

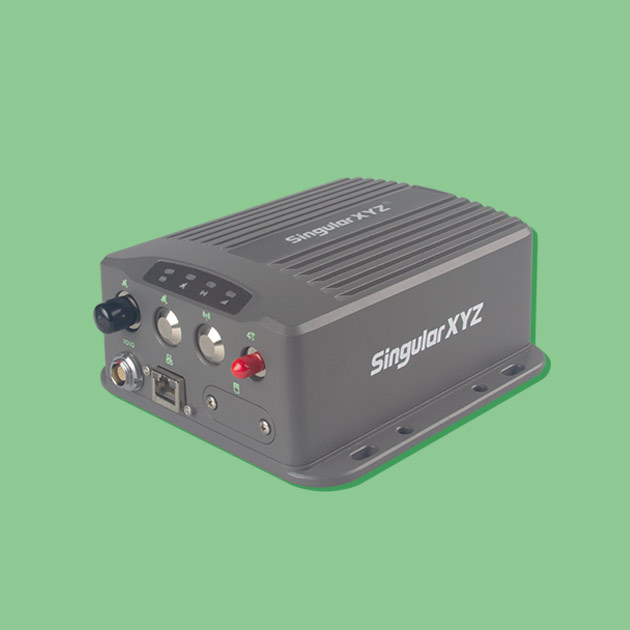

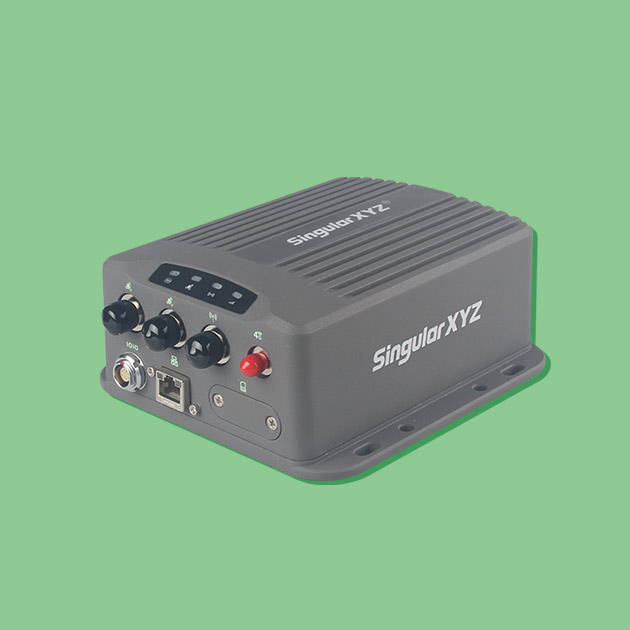

GNSS Receiver Model	T8 Pro	P1	SV100	SV100 Dual	S200
Channels & Constellations	1408 channels GPS, BDS, GLONASS, Galileo, QZSS, SBAS	184 channels GPS, BDS, GLONASS, Galileo, QZSS, SBAS	1408 channels GPS, BDS, GLONASS, Galileo, QZSS, SBAS	1408 channels GPS, BDS, GLONASS, Galileo, QZSS, SBAS	1408 channels GPS, BDS, GLONASS, Galileo, QZSS, SBAS
Supported Work Mode	Rover	Rover	Base (main), Rover	Rover (main), Base	Rover
Communication	Bluetooth, 4G, WiFi, USB	Bluetooth, 4G, USB	Bluetooth, 4G, WiFi, FTP, Ethernet, RS232, USB, NAT-DDNS, Radio*	Bluetooth, 4G, WiFi, FTP, Ethernet, RS232, USB, NAT-DDNS, Radio*	4G, Radio, RS232, CAN, Bluetooth*
Other Sensors	/	/	/	/	Gyroscope
Main Advantages	All-in-one design of GNSS antenna, GNSS module and PDA For both handheld and pole-installed	Data returning Wearable & portable	Flexible transmission & remote control Stable operation	Dual-antenna design for robust heading data	All-in-one design to simplify vehicle system composition
Main Applications	Handheld for GIS Land Surveying	Handheld for GIS Personnel Tracking Land Surveying	CORS station Portable base	Vehicle navigation	Vehicle navigation
