Shanghai, China, April 13th, 2023 – Today SingularXYZ officially launched the triple-use base solution – SV100 GNSS receiver for your portable base, CORS & RTK bridge. One device meets all your requirements for base station in various applications.

No matter what kind of base station application, the primary requirement of base is to provide reliable and stable GNSS correction data. With this in mind, the SV100 GNSS receiver was designed with high precision GNSS module for simultaneously tracking GNSS signals from GPS, BDS, GLONASS, Galileo, QZSS.

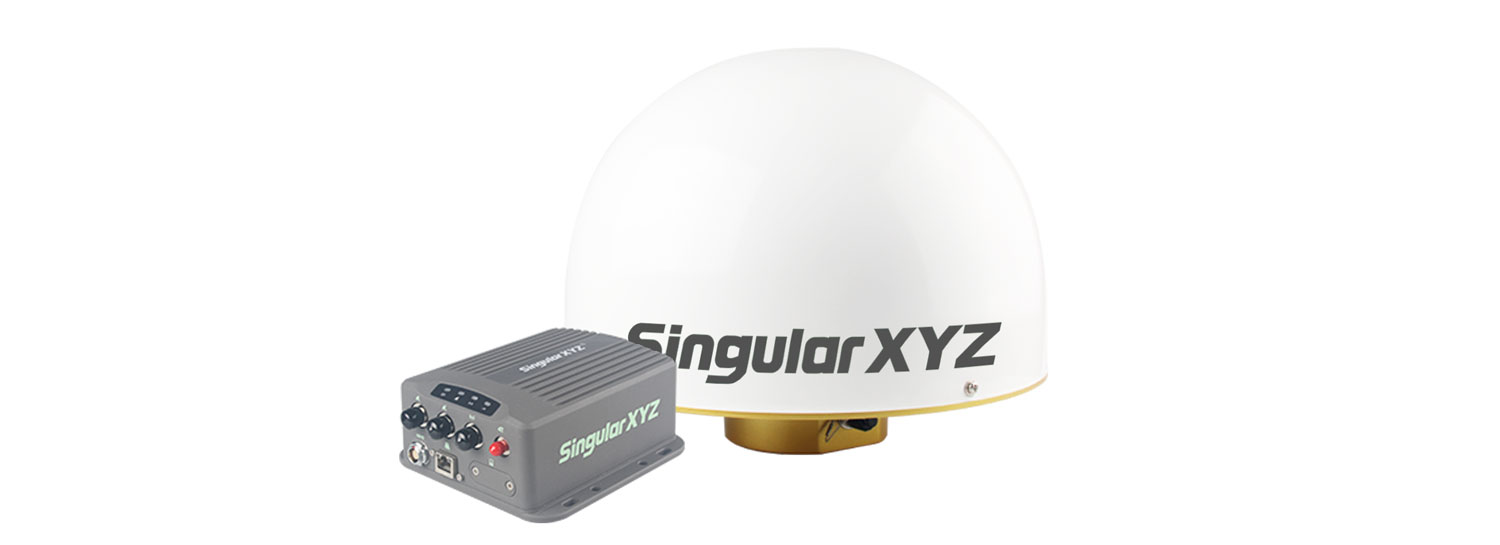

Option 1: CORS Station

With a professional choke ring antenna installed outdoors, SV100 can be installed as a CORS station. To meet the stability needs of CORS, the SV100 is equipped with a 4G module as Ethernet backup, an optional built-in battery to avoid data transmission interruption caused by external power failure, and a stable system with an MTBF of over 20,000 hours.

The comprehensive web UI of the SV100 contains status display, working modes and data transfer settings. It can be directly accessed via Ethernet and WiFi, or remotely accessed after configuring the static IP, DDNS or NAT-DDNS.

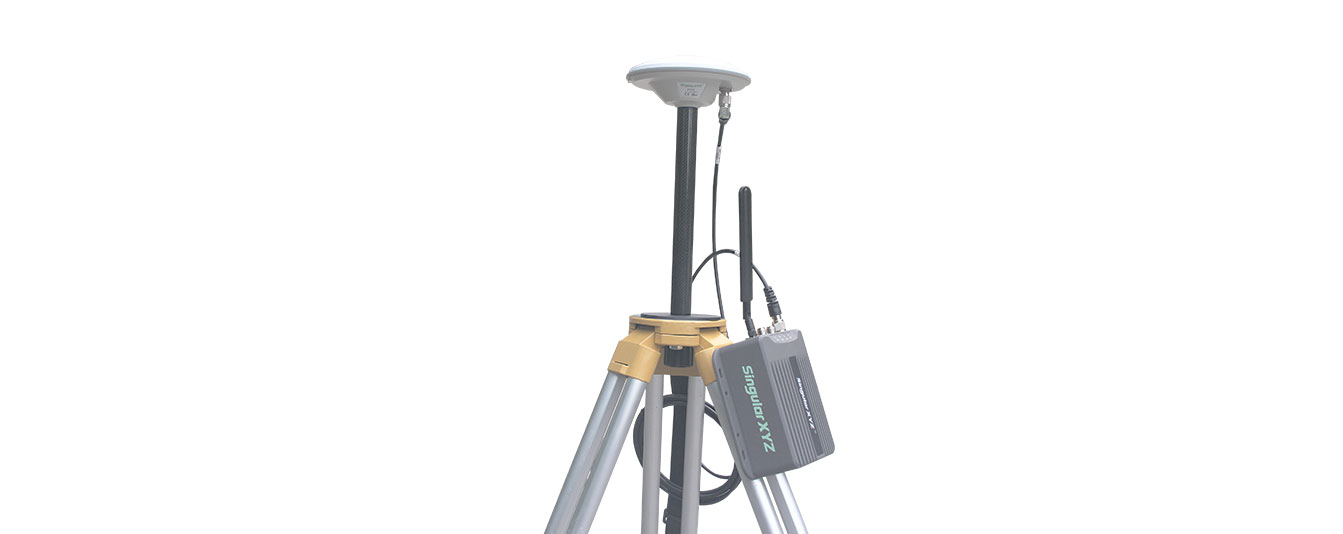

Option 2: Portable Base Station

The CORS option is suitable for CORS network construction or users with a fixed workplace, such as farms or long-term project sites. For those who often carry the base station to different work sites, the SV100 can be mounted with a detachable hook and easily attached to the tripod as a portable base station. The IP67 design can also protect SV100 in outdoor environments.

SV100 also shows high compatibility with different brands of rover. Users can select to insert the SIM card to transmit via 4G, or connect the UHF antenna to transmit via radio. SV100 supports multiple radio protocols, such as TRIMATLK, TRANSEOT, SATEL, TRIMMARK3, etc.

Option 3: RTK Bridge

In addition to the reference station and portable base, the SV100 GNSS receiver can also work as an RTK bridge. If you want to use one CORS account for several rovers, you can use SV100 to connect to the CORS via 4G and broadcast correction data to the work site, largely saving your cost.

The SV100 GNSS receivers are online at SingularXYZ official website and are available now. Contact your local SingularXYZ distributor or contact us directly to get your ones.

Find out more details about SV100 GNSS receiver base solution at
https://www.singularxyz.com/SV100.html
https://www.singularxyz.com/SV100_Agriculture.html

About SingularXYZ®

SingularXYZ Intelligent Technology Ltd. is focused on high precision GNSS PNT (Positioning, Navigation & Timing) technology, extending its coverage to horizontal and vertical industries, which mainly include geospatial information, precision agriculture, machine control, robotics, telecommunications, IoT and etc., providing customers with reliable, stable and professional products, solutions and service.
